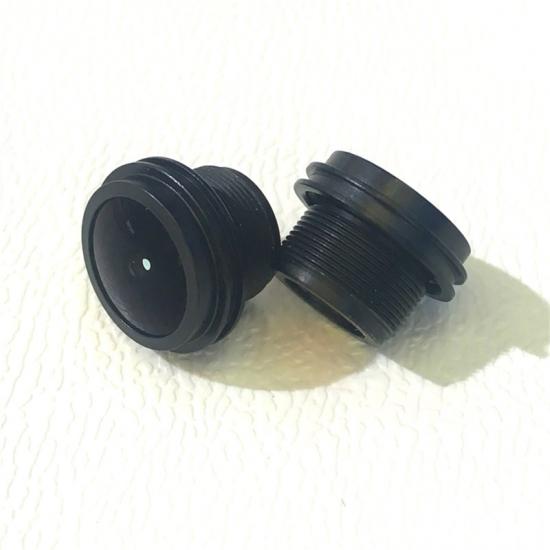

Product Name: 1/4'' wide angle 110 degree 2.15mm car front sensing split forward view camera lens,
Lens for Truck Backup Camera, Truck Reverse Camera
Product Advantage
1, 2.15mm Custom made lenses for truck Camera
2, 1/4''Horizontal 110 degree Wide Angle Lens
3, IP67 waterproof ideal for Car Front View Camera
4, Widely used as various Vehicle Lens
5, Automotive Photography Lens for Car Dash Camera, black box DVR
Product Specification
keying technical feature of 2.15mm m12 automotive Lens ( Front View Lens)
1，TTL：14mm
2, EFFECT Focal length：2.15mm
3, Aperture F/No: 2.4
4, Optical Back Focal Length：3.44mm
5, Mechnical Back Focal Length：2.28mm
6, Max image circle：4.65
7, FOV (D/H/V)：139/110/61 degree (1/4 NT99141 cmos )
8, Optical Distortion：H:-12.26%, V:-42.5%
9, Relative illumination：>68%
10, CRA：<12.7 degree

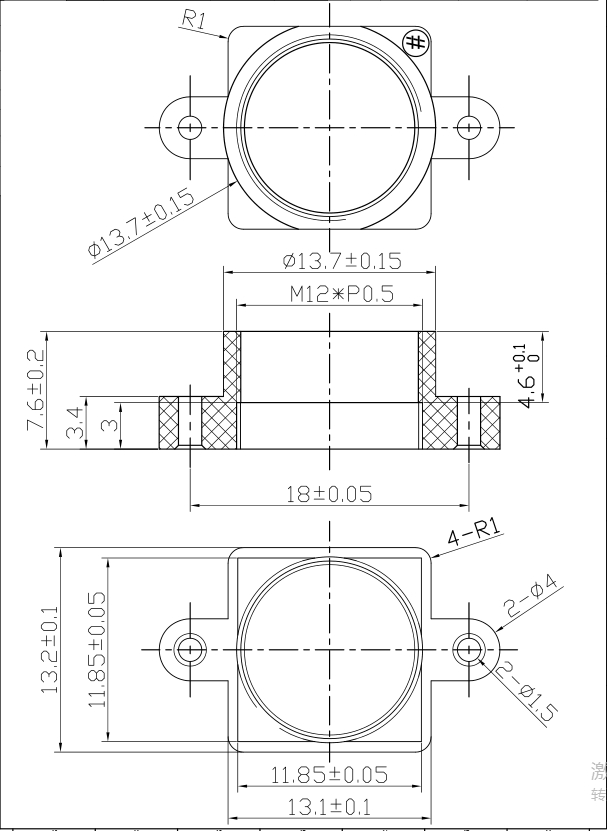

11, mount type：M12*P0.5 S Mount
12, Lens construction: 4G+IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, waterproof grade: IP67

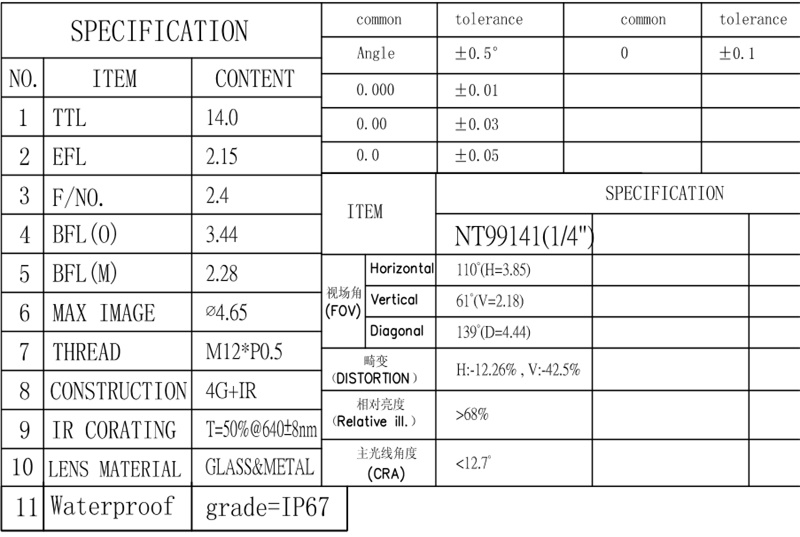

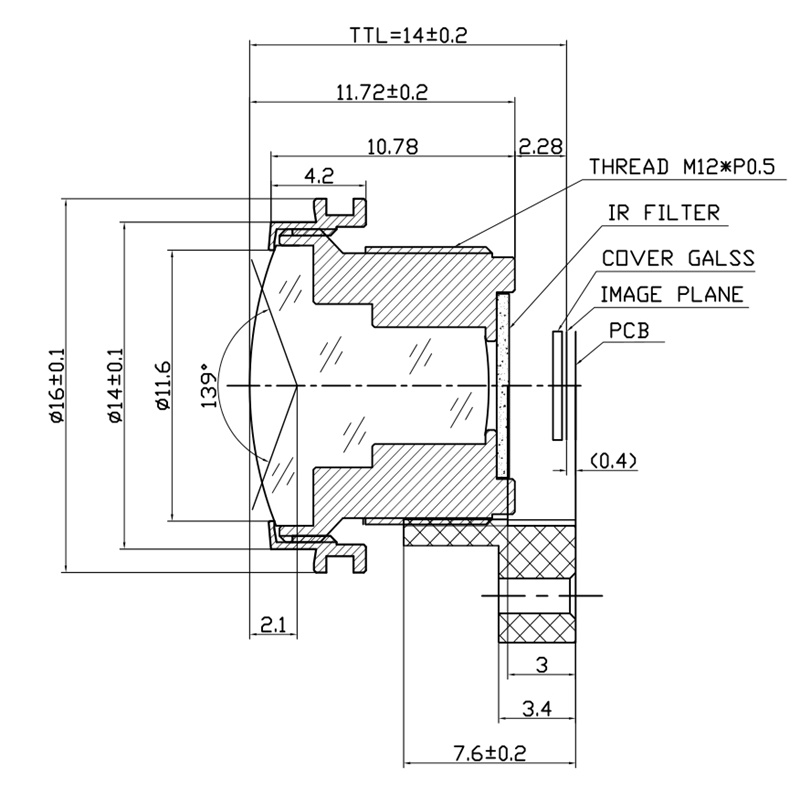

Technical Datasheet of waterproof Truck Camera Lens
Product Application
Lens for car front view camera
Lens for truck backup/reverse Camera
Lens for automobile camera
Lens for car black box DVR Camera
Lens for Vehicle Camera
It can work as Wifi Doorbell Camera Lens, outdoor Wifi Camera cctv Lens
Custom Camera Lens
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
