Product name: 360 degree fisheye panoramic 5mp FHD lens 1.73mm m12 with 1/2.5'', 1/2.7''
and 1/3'' cmos sensor for 360 car camera
product advantage
1, All FOV angles are 180 degree fisheye when working with 1/2.5'' and 1/3' cmos
2, Low cost 180 degree Fish Eye Lens, good price, 100% made in China
3, 180/180/180 creat perfect 360 degree panoramic image
4, 180 degree Fisheye Lens For Security Camera， Fish Eye Project Lens
Product Specification
Technical Feature of 1.73mm 360 Fisheye Lens
1, Effective Focal Length: 1.73mm
2, Aperture F/No: F2.0
3, Image Format: 1/2.5'' (Y=3.5)
4, MTF Resolution: 5Megapixels
5, Field Angle FOV
1/2.5'' 1/2.7 1/3 180/180/180 degree
6, Optical Distortion
1/2.5 and 1/2.7 Cmos -45%
1/3 Cmos 45%
7, M.O.D: 0.2 Meter

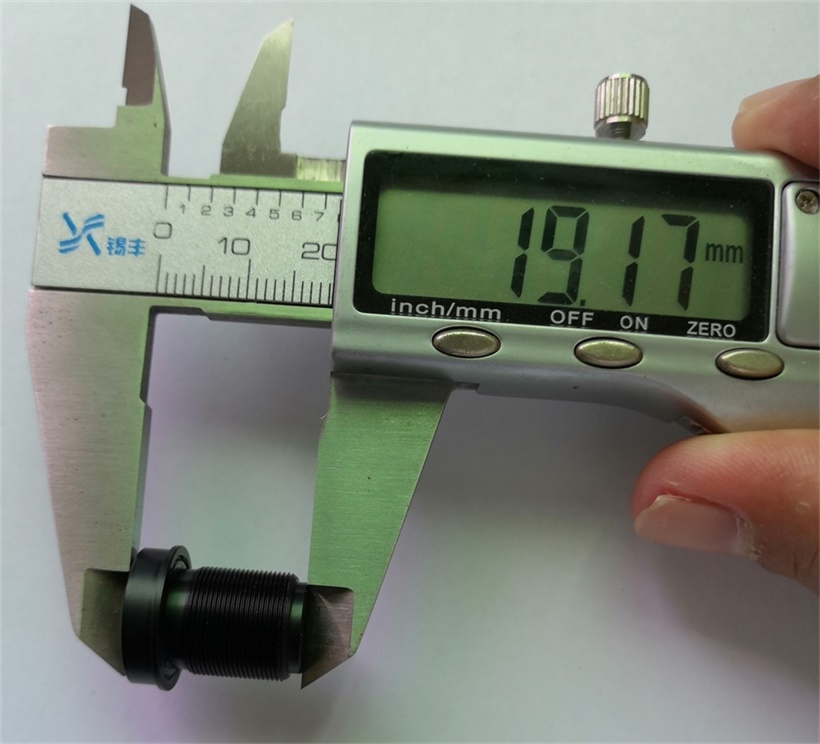

8, Dimension: C16*19.1mm
9, Net Weight: 5.6 gram
10,OBFL: 3.77mm
11,MBFL: 3.5mm
12, IR Correction: Yes
13,Fixed iris, Manual Focus, Fixed Zoom
14, Operation Temperature: -20 to +70 degree

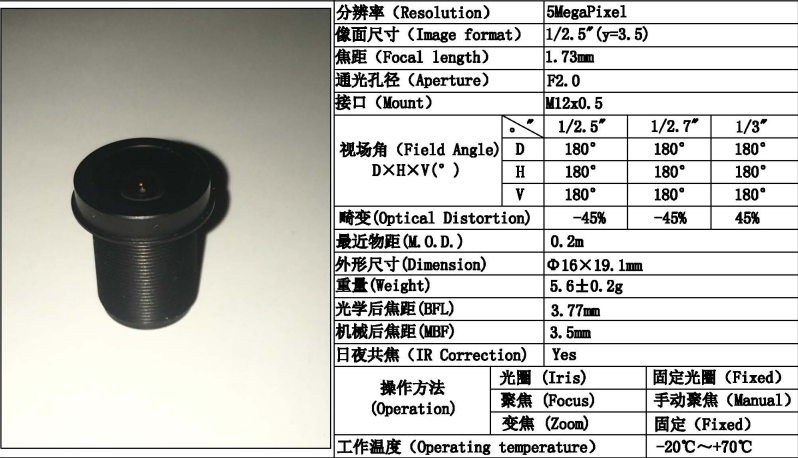

Technical datasheet of 180 Degree Lens
Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses toowelcome to share your lens requirement or product idea with us to discuss and proceed thank you very much
