Product Name:

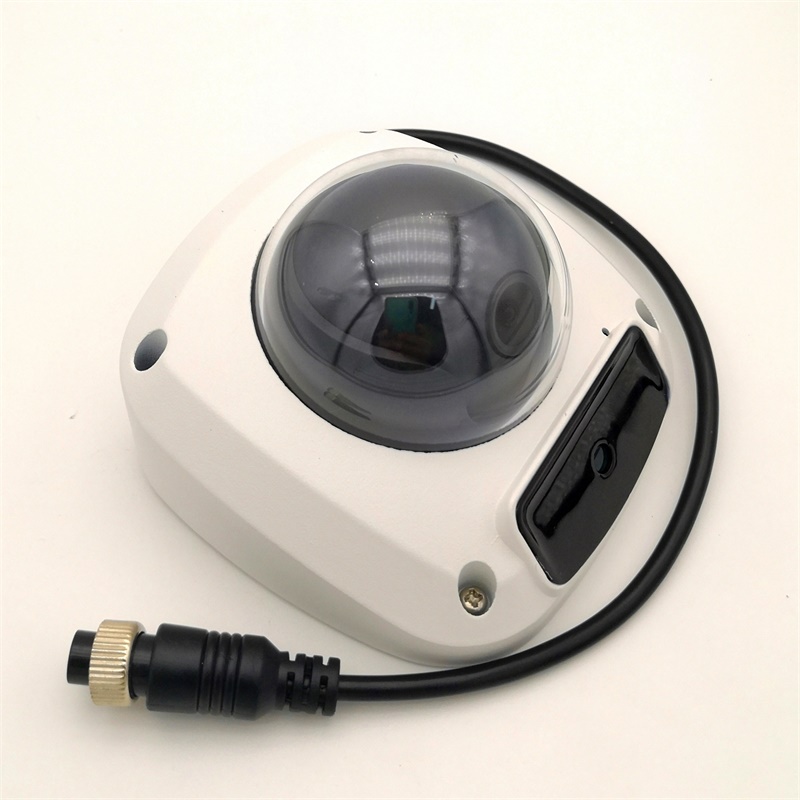

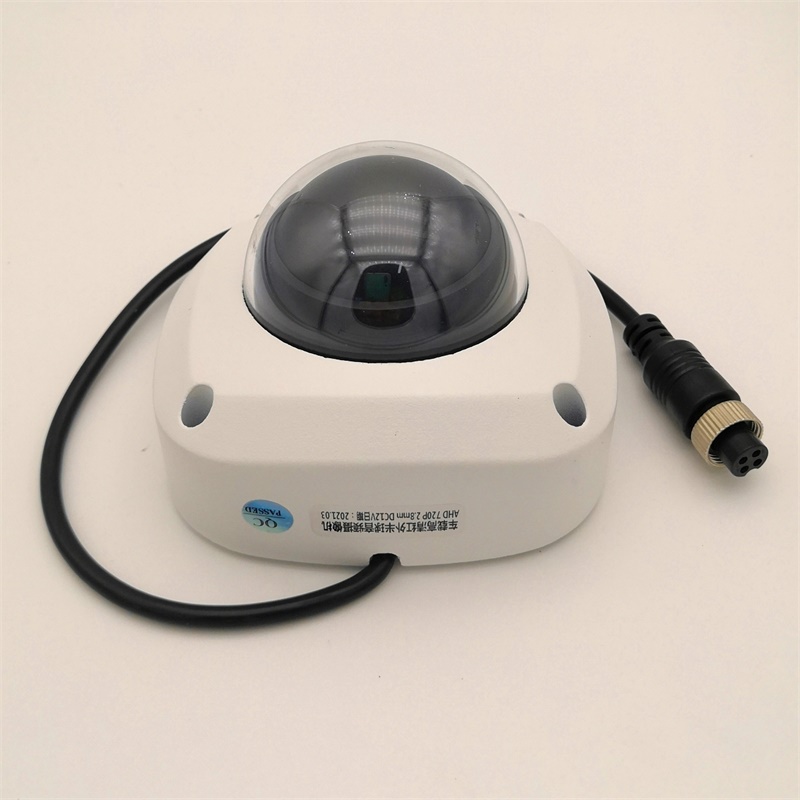

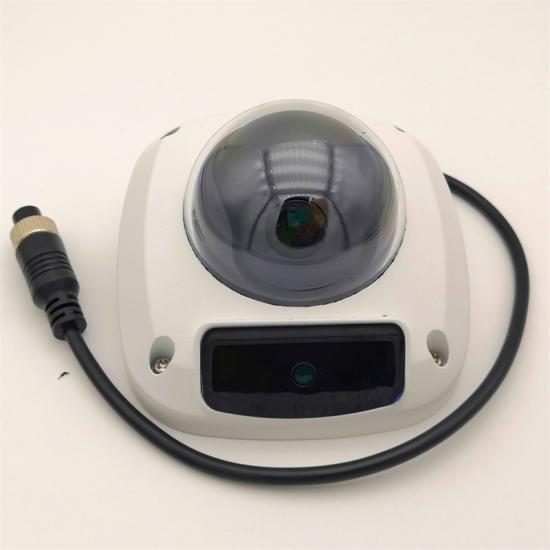

Professional anti-riot dome Explosion Proof camera for Tanker/vehicle/Bus/truck/school bus/Van/Tanker
1, Use 1/2.7 inch color CMOS to capture moving images
2, Support coaxial high-definition output, the image is clear and delicate
3, Low Illumination, 0.01Lux@(F 1.2, AGCON), 0LUXwithIR

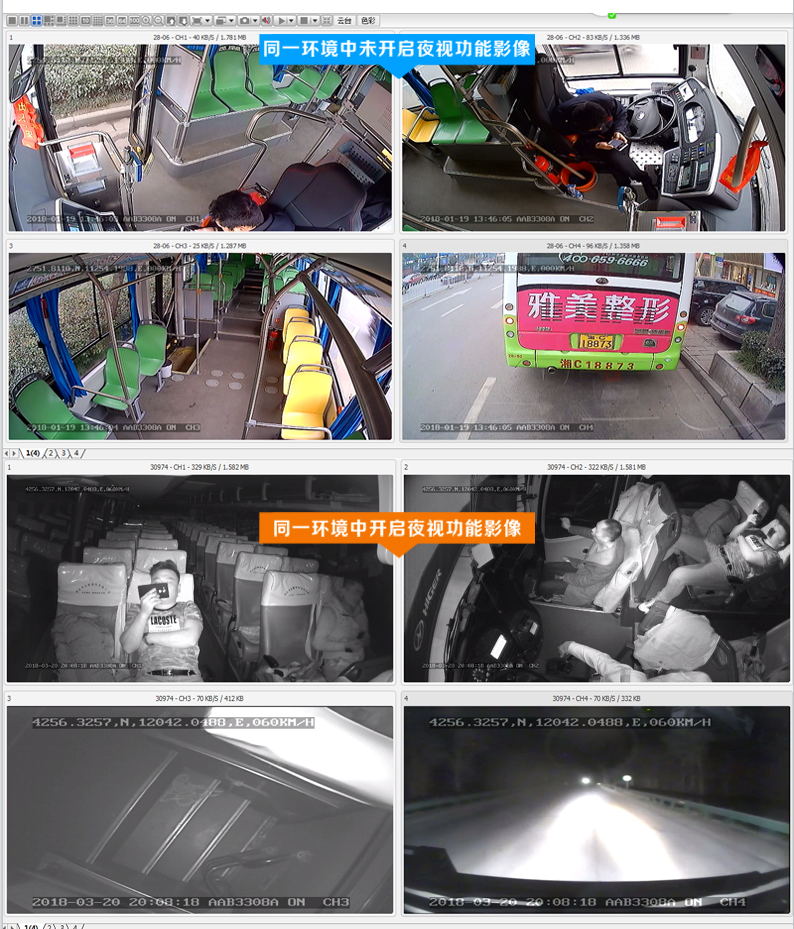

4, Support IR-CUT switch to realize day and night monitoring
5, Support digital wide dynamic, Adaptive digital noise reduction, 2D-DNR
6, Support UTC function, optional built-in audio
Product Advantage (unique selling point)
1, Explosion Proof camera is made of all-aluminum alloy and anti-riot and high-transparent material, which is convenient and simple to install.
2, fully enclosed design to prevent the video angle from moving,
Prevent vandalism, infrared video separation, night vision without exposure,
3, It is widely used for installation in buses and three-passenger two-transport vehicles.
It is suitable for installation in the interior of various models of vehicles.
Product Feature of China Dome Explosion Proof Camera For Bus
1. Extremely strong housing. 304 stainless steel housing prevents camera from explosion. Inside parts and outside parts (harsh environment) will not affect each other.
2. 1080P AHD Resolution. 2MP resolution provide good view for the driver or the monitor to see clear. With clear "eye", they are more safety, as well as the passengers.
3. Full view for your vehicles, including front view, side view, and back view if need. Four cameras can work at the same time. No afraid of blind point. Keep the people around your vehicles safety, as well as your safety.
4. Waterproof cameras. This camera is IP68 waterproof. If you need higher level such as IP69K, we can change a heavier one for you. Excellent waterproof level can allow cameras working well outside, even in rainy or foggy days.
Product Specification of Explosion Proof camera For Truck
Item Name |
Technical specification |
Product Name |
Multifunctional 1080P Explosion-proof camera For Bus/Truck/Semi-Truck/Tanker |
Imaging CMOS |
½.7" color CMOS
|
chipset
|
F23+V30E(FH8532E)
|
Pixel
|
2MP |
Video resolution |
1920H*1080V, 1080P@25fps |
signal system
|
50HZ |
Minimum illumination
|
0.1Lux@ (F1.2, AGC ON) , 0LUX with IR
|
Shutter speed
|
1/50 sec-1/100000 sec
|
Day and night conversion mode
|
Switch IR-Cut day and night
|
Wide dynamic
|
Digital wide dynamic
|
BLC
|
automatic
|
Infrared distance IR
|
Built-in 6 microcrystalline 20mil lights Effective operating distance 8-10 m
|
Pickup audio
|
no |
Switch IR-Cut day and night
|
Support |
Signal output
|
AHD |
Lens feature |
Standard 2.8mm wide angle lens, 3.6mm lens optional |
temperature humidity
|
-20℃~+70℃ 0%-95%
|
power supply
|
12V (wide voltage 9v-15v)
|
waterproof level
|
IP65
|
Power (12v)
|
<2.5w (infrared start)
|
Net weight
|
Less than 2.0kgs |
product material
|
100% full Aluminum alloy, #304 stain steeless
|
Video output interface
|
1.0Vp-p composite video output, 75 ohm, 4pin aviation cable, 1 red 12V+, 2 black 12V- 3 white audio signal 4 yellow video signal
|
Product Size |
100*65.8mm |
The explosion-proof performance accord with GB3836.1-2000 << Electrical apparatus use general requirements:Part1,which used under explosive gas atmospheres environment>>, GB3836.2-2000 << use explosion-proof electrical equipment under explosive gas environment : Part 2, Exd explosion proof "d" >> standard and make Exd explosion proof structure.
Explosion-proof camera applications:
1, With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
2, widely used in oilfield, petrochemical, coal, shipbuilding, offshore oil drilling platforms, military, oil refining, chemical, electric power, aerospace, pharmaceutical, textile and other related industries.
3, Applicable to the petroleum and petrochemical, chemical, aerospace, military industry, dock port, medicine, paint, textile, brewing, printing and dyeing, food processing and other dangerous explosive environment.
4, Work Environments :
Chemical industry,oil, steel,iron,Military project,medicine,mine,oil warehouse,ship,oil drilling platform,gas station,Production of fireworks and firecrackers,food Processing and storage. explosion-proof with anti-corrosion, dustproof and waterproof
Nano invisible wiper function
5. China Manufacturer of Explosion Proof Camera For School Bus, Bus, Semi Truck, Pickup Truck, Heavy Duty, Oil Vehicles etc
