Product Name: New Aftermarket Backup Cameras 2021 For Truck/cars/Box Truck/heavy duty with Factory Private Mold own-design
DC12-24V Sony CMOS Weatherproof Aftermarket Truck Camera For Vehicle/Bus/Truck/Coach/Trailer/Lorry/Van/Excavator/Crane
Product Feature:
(1)Chinese Manufacturer of Aftermarket Reverse Camera, backup parking assist camera for heavy duty vehicle like bus, truck, Trailer, Van and agricultural machine. Pair it with an in-vehicle monitor display screen, for a quick and easy way to add safety when on the road.

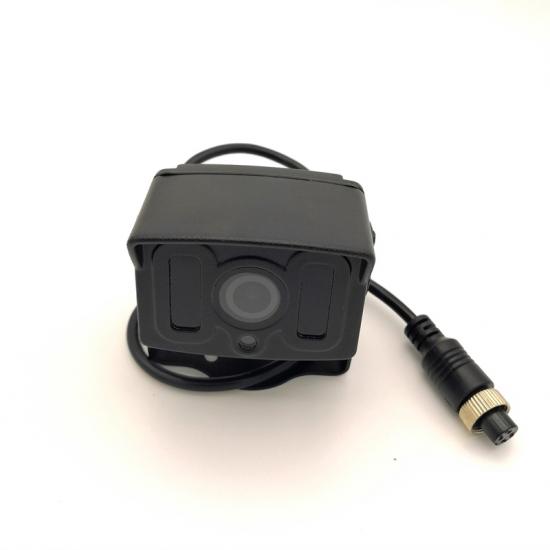

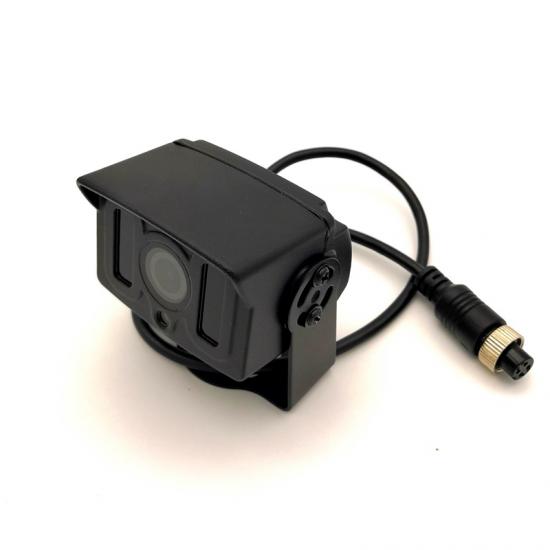

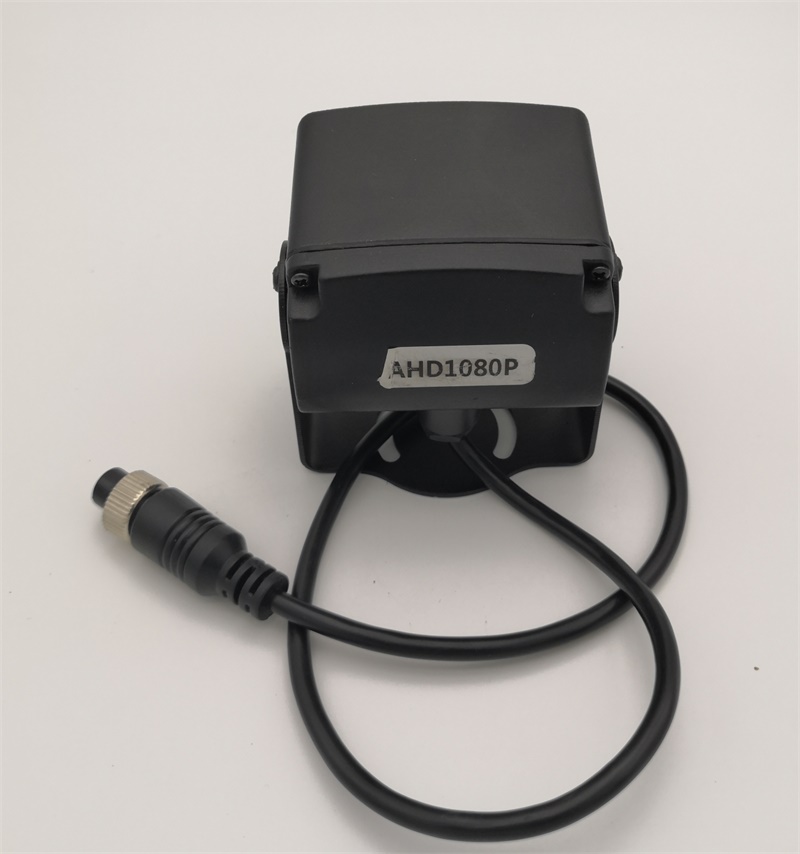

(3)This AHD camera use Sony AHD 1080P chipset, it have 1.3MP Viewing Angle with a 5 layer glasses lens, mirror image,100% Waterproof which have drop into water testing. Good night vision with 18pcs IR LED lights for improved visibility and back-up image capabilities. The camera casing is Zinc alloy material also stainless steel screw makes it without rust problem. Night Vision Illuminates Distance = 50 Feet.
(3)The camera outputs a very clear, vivid picture, built-in low lux performance for dark environments helps you steer when visibility is limited. Drive safer and smarter with the our parking assist backup camera.
(4)100% Waterproof rate IP69 which have drop into water testing. it provides you large and clear viewing field and can eliminate blind spots behind you.
Product Specification
|
Item Name |
AHD Aftermarket Backup Cameras |
|
Sensor |
1/3" Sony AHD CMOS |
|
Resolution |
1280*720/1920*1080 custom-made |
|
Effective Pixels |
1.3/2.0 Mp Megapixels |
|
Lens |
2.8mm/3.6mm For Optional |
|
View Angle |
120° |
|
IR LED |
10pcs IR LED Lights |
|
IR Distance |
10m~15m |
|
Infrared Spectrum |
850nm |
|
Brightness |
Auto/Manual |
|
Contrast |
Auto/Manual |
|
Compression |
H.264/H.265 |
|
TV System |
NTSC/PAL |
|
Shutter Speed |
PAL:1/50s~1/100.000s;NTSC:1/60s~1/100.000s |
|
Audio |
N/A |
|
Waterproof |
IP 69 |
|
Video Output Level |
1.0Vp-p (BNC 75Ω composite) |
|
Working temperature |
-10℃ ~ +50℃ |
|
Power Supply |
DC 12V ±10%, 0.5A |
|
Weight |
60mm*55mm*60mm |
|
Dimension |
0.18kgs |
Product Application

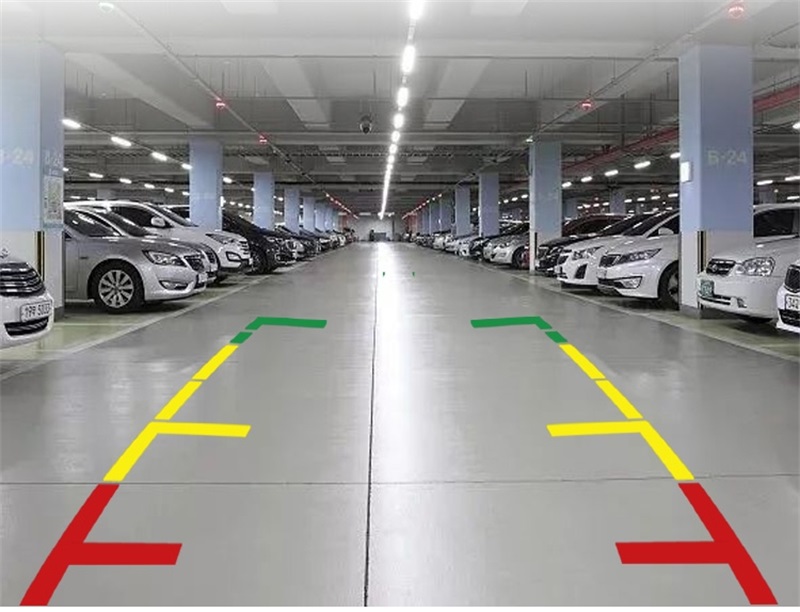

Installation is simple and convenient, and can be applied to buses, school buses, buss, excavators, harvesters, etc., with reversing ruler lines and reversing at a glance.
Applicable to variety of Vehicles: Car, BUS, Truck, RV, Motorhome, Van, Lorry, Excavator, Crane, Bus, Van, Car, Trailer
Our Aftermarket Car Cameras also can be used on Passenger Bus, School Bus, City Bus, Travel bus, Coach bus,Sightseeing Bus, Airport shuttle, Autobus, Double Decker Bus, Tourist Bus,Tourist Coach.
How to install aftermarket AHD Vehicle Camera in car or Truck?
aftermarket backup camera install/ installation
The first step is to first remove the power supply connection at the vehicle battery, and place the removed connection away from the electrode to prevent accidental connection of the power supply.
The second step is to determine the installation location of the car camera, generally divided into two types:
One is installed in the position of the license plate lamp on the license plate frame. This installation is relatively easy. For the special car, you only need to replace it with the original license plate lamp. You only need to use the small butterfly and other plug-ins provided in the camera accessories. Screw the camera to the position of the license plate light. Through the adjustment of the iron sheet or gasket in the accessories, the camera can achieve the best reversing angle of view. The line of the camera penetrates into the car through the gap of the license plate lamp, and is connected with the power supply of the reversing lamp and the video extension cable. This type of installation type of reversing camera is currently a more popular one, with a more concealed appearance and easier installation. The other is drilled installation, embedded inside the bumper, because the bumper is a plastic part, the camera wiring is relatively easy.
The Step 3: Connect the power cord of the camera to the power cord of the rear reversing light. Then connect the video cable of the camera to the video extension cable, and the other end of the video extension cable is connected to the AV input of the car monitor (car DVD&portable GPS navigation&car computer & car monitor). Finally restore the battery power supply, start the car, put the reverse gear, you can see the reverse image on the car monitor.
