Product Name: 4 Way Wireless RearView Backup Camera systems + 7" Monitor for Semi Truck, School Bus and Pickup Truck
4channels 2.4GHz Digital Wireless Backup Camera Systems with Vehicle Monitors work for all commercial vehicles include semi-truck, truck, school bus, bus, heavy duty
Product Features:
(1) This wireless truck monitor with 4 cameras can help you reverse or drive more safely and easily

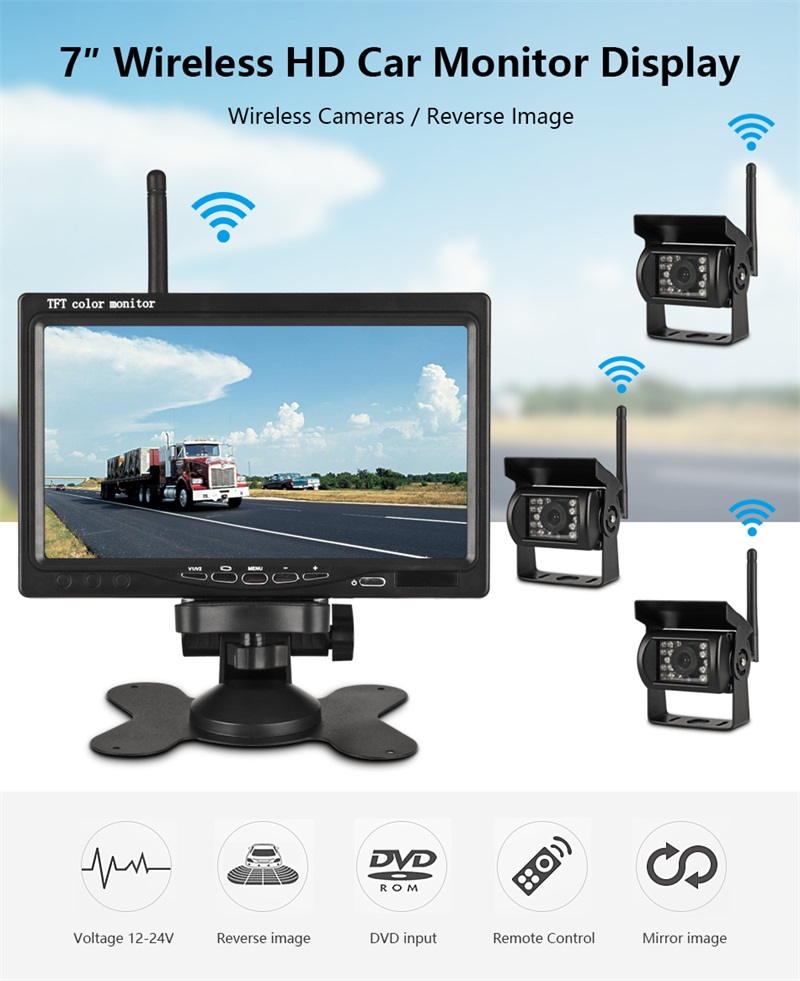

(2) 7-Inch TFT LCD widescreen wireless monitor--With high resolution image, full color display and low power consumption.
(3) 4 Wireless IR Night Vision Waterproof Cameras -1 Front View Camera, 3 Side/Rear View Cameras-Auto IP68 Waterproof with 18 individual Infrared (IR) LED. Effective range up to 15M.

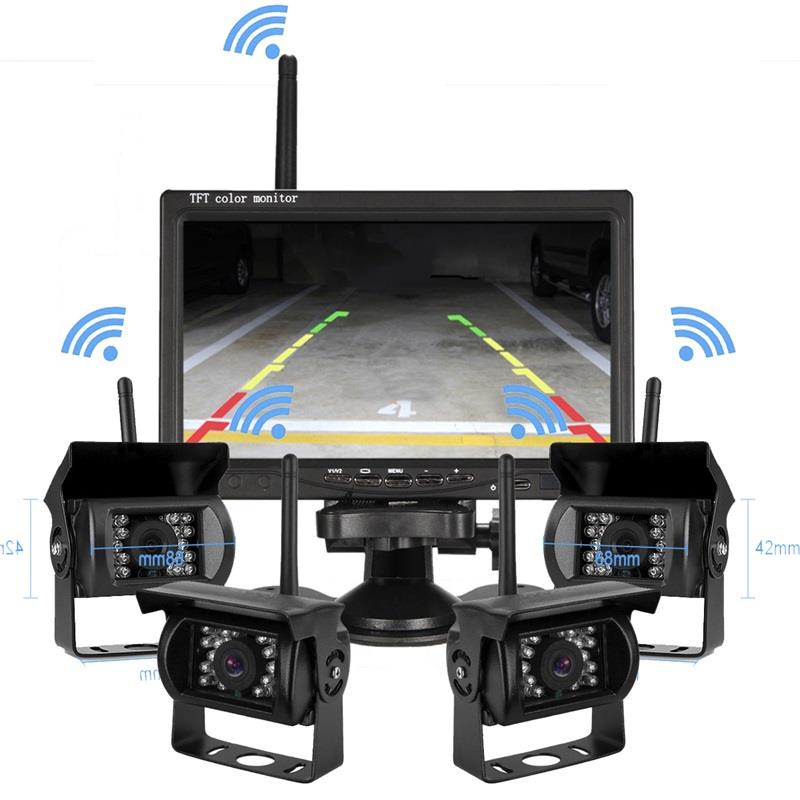

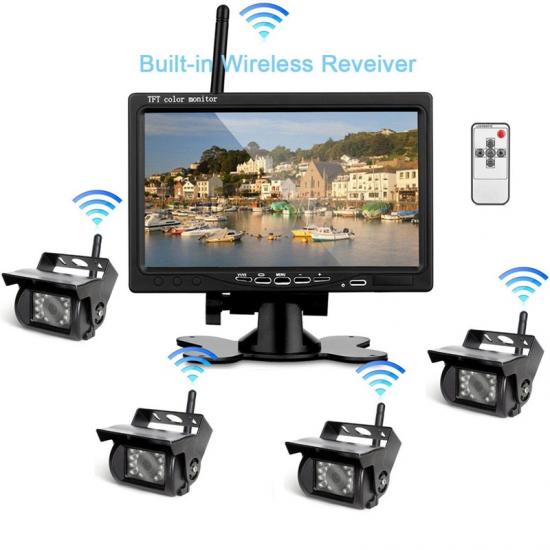

(4) 4 Cameras 4 Video Inputs--A camera mounted on the front and the others in the back or side.
(5) You can press the switch button to view the each camera image, all camera have no guide line, make the image clear.
(6) Easy to install--Wireless parking assistance; The monitor will start up automatically, and synchronously display the video from rear view camera when you're backing or braking your.
(7) IP 68 waterproof grade can cope with marine environment. Hard Metal Cased Camera; Waterproof and Mud proof; It can last for longer without heating up, so you can show the rear/side view all time.
2.4G AHD digital super stable signal wireless car reverse camera monitor rear view system
Product Specifications of Wireless Semi Truck Backup Cameras
2.4GHz digital wireless 7 inch color monitor
Operating Frequency: 2400-2483.5 Mhz Standard: 2370Mhz
Compression format: MPEG 4 video
Transmit frequency:18dBm
Transmission speed:12 Mbps
FHSS: Frequency Hopping Spread Spectrum
Hopping rate:1200 / S

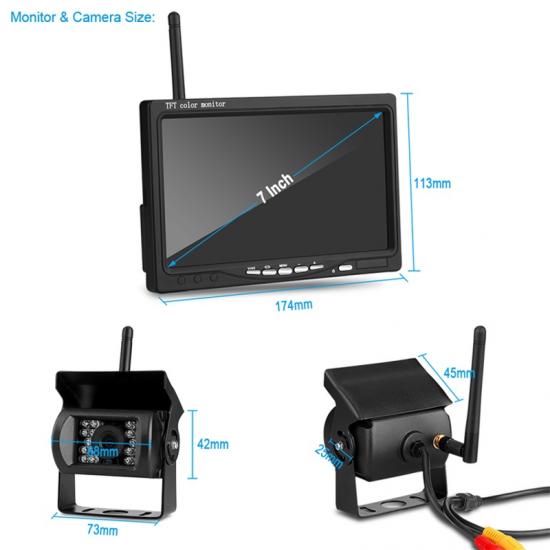

Screen Dimensions: 7-inch16: 9 wide screen
Resolution: 800R.G.B x 480 dots
System: PAL / NTSC
Operating voltage: 12V / 24V DC
Power: ≤8.64W
Operating temperature: -10 ℃ to + 65 ℃
Optional: audio
Built-in Wireless 7" Monitor Rear/Side View Backup System 4* CCD Color Camera 12/24v For Truck VAN Caravan Camper

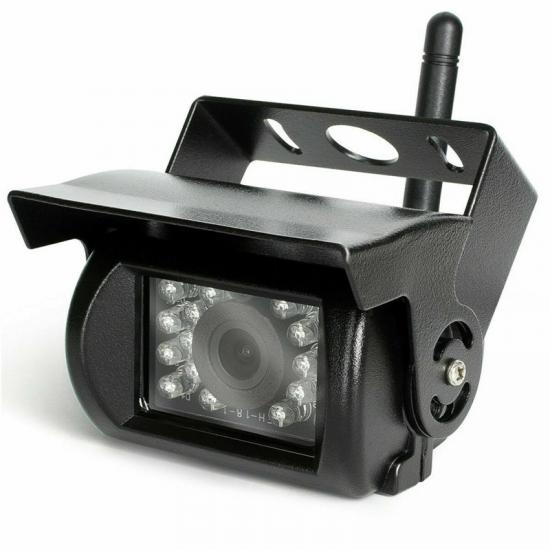

2.4GHz digital wireless camera for trailer
Standard NTSC: 710 * 692 pixels, PAL: 710 * 682 pixels
Resolution: AHD720P
Lens: 2.8mm wide angle
Minimum illumination: 0Lux (18 IR LEDs)
Infrared light: 18pcs
Night vision distance:15 meters
Waterproof: IP68
Angle:120 °
Operating voltage: 12 / 24V DC
Operating temperature: -20 ° C ~ + 70 ° C
Shell Material: Aluminum
Mount material: Metal

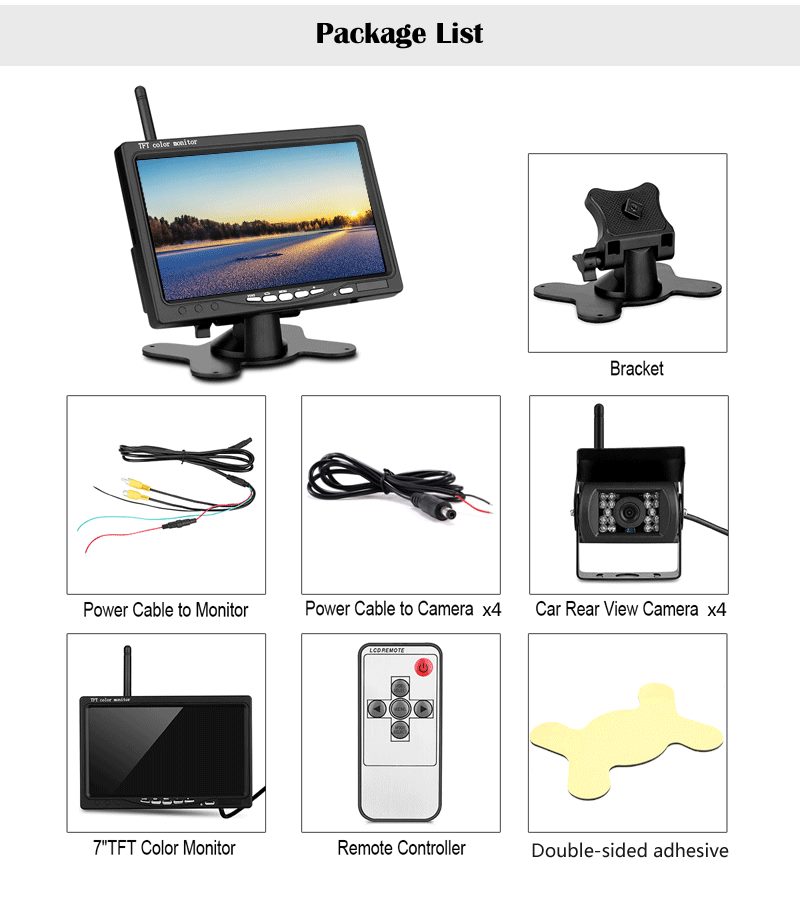

Package contents:
1 * 7" Rear View Monitor
1 * Wireless Front Cameras
1 * Wireless Back Up Cameras
2 * Wireless Side View Cameras

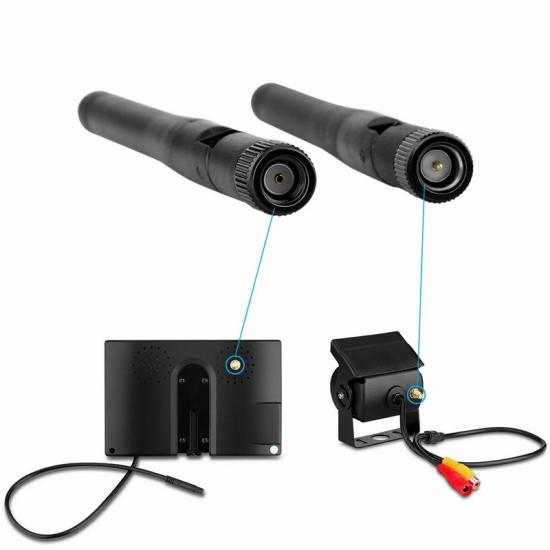

5 * Antennas
4 * Power Cables
1* Remote Controller
1 * Mount Bracket
1 * User Manual
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Product Application of 4 Way Wireless Truck Cameras
this 4 channels 2.4GHz Digital wireless Backup Camera System with monitors can work for Semi truck, Heavy Duty, Truck Trailers, Pickup Trucks, 18 wheeler trucks, SUV etc
