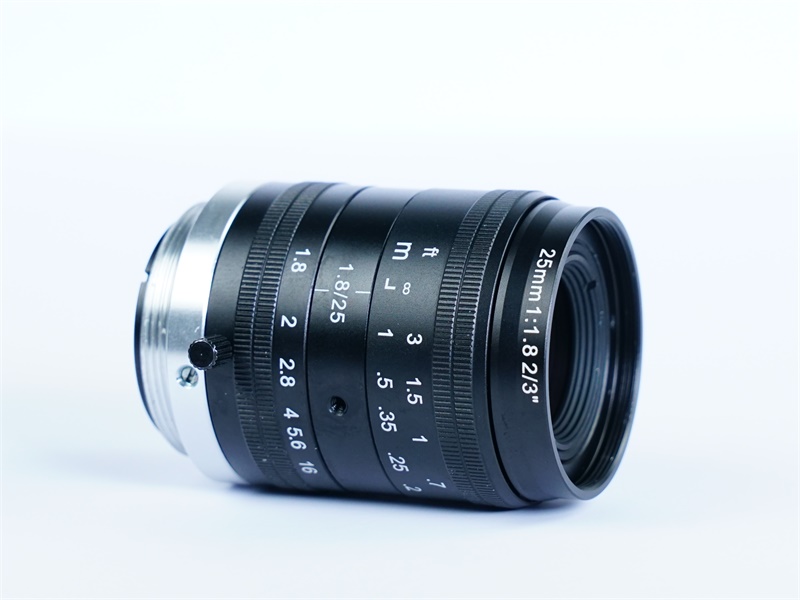

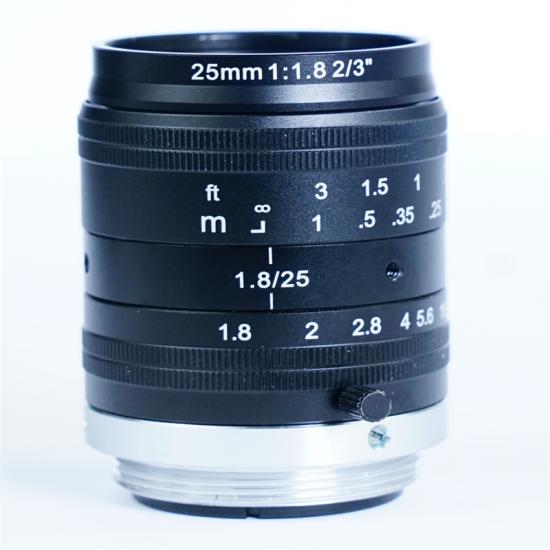

Product Name: Telephoto 25mm 10 Megapixel C-Mount Lenses For Machine Vision
Product advantage:
1, Variable Aperture Lens From Large aperture F1.6 to Smallest F22 (creat good depth of Field)
2,Multi-layer coating, with higher transmittance and effective suppression of stray light
3,Applied For 2/3" 4K/10megapixel FA camera, Industry Camera, Machine Vision Camera，
This 25mm Lenses also compatible with 1 inch Camera too
4, widely used in vehicle construction, Industrial Security, logistics, pharmaceuticals Production, food industry, ITS traffic monitoring etc
Product technical Specification of Industrial Machine Vision Lenses
|
Product Model |
NWA-23-10MP-25mm |
|
Image Cmos Sensor Format |
2/3’’ |
|
Photo Resolution |
10MP |
|
Focal Length |
25mm |
|
Aperture |
f/1.8 ~ f/16 |
|
OBFL |
12.7㎜ |
|
FOV(D×H×V) Angle of View 2/3’’cmos |
D24.99°/ H20.1°/ V15.1° |
|
FOV(D×H×V) Angle of View 1/1.8’’cmos |
D20.37°/ H16.4°/ V12.17° |
|
FOV(D×H×V) Angle of View 1/2’’cmos |
D18.25°/ H14.62°/ V10.98° |
|
TV Distortion 2/3’’cmos |
-0.72%@y=5.5mm |
|
TV Distortion 1/1.8’’cmos |
-0.47%@y=4.5mm |
|
TV Distortion 1/2’’cmos |
-0.38%@y=4mm |
|
MTF |
200lp/mm（2.5um） |
|
Focusing Range MOD (Minimum Object Distance) |
0.13m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
61.8mm |
|
Mount type |
C mount |
|
Filter Thread |
M25.5X0.5 |
|

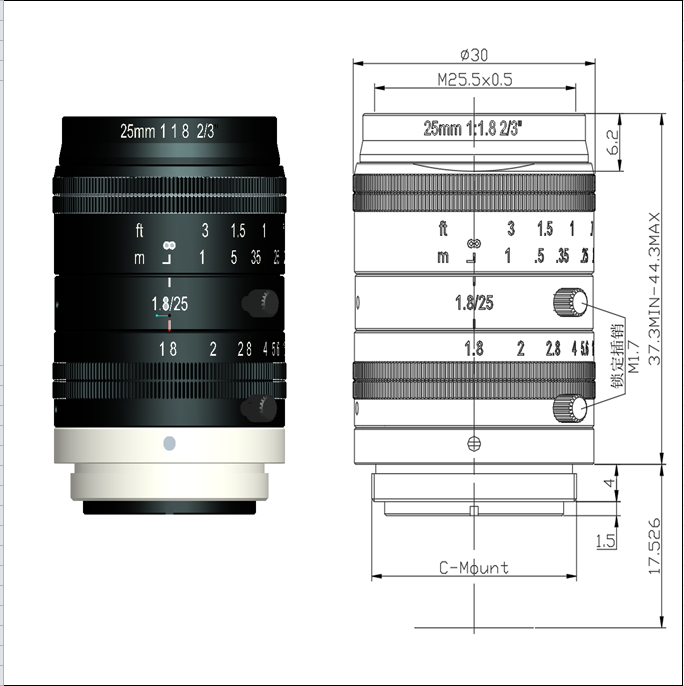

External Dimensions(mm): |
∅30*L41.3mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application of 10 Megapixel C-Mount Lenses
Application of machine vision lens, Factory Automation FA Lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors,
biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9. Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
16, 10MP Industrial Lenses For Machine Vision system application
About US
we are Chinese professional Industrial Lens, Glass Lens and M12 optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, FA Industrial Lens, Machine Vision Lens, Standard M12 camera Lens, Varifocal Lenses etc,of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
