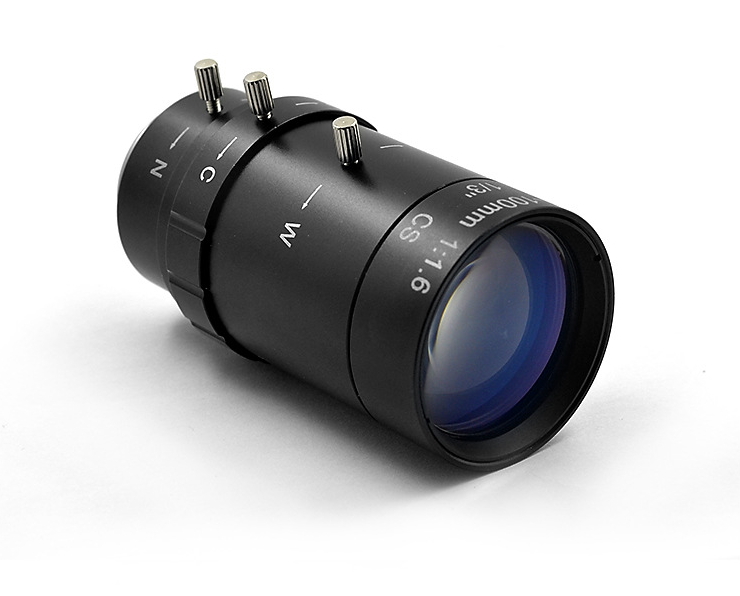

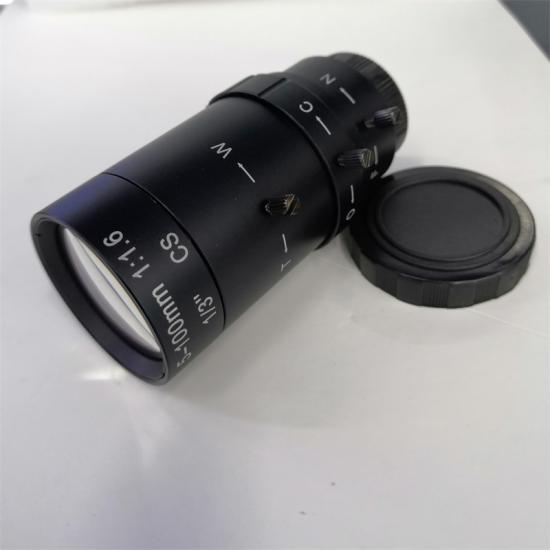

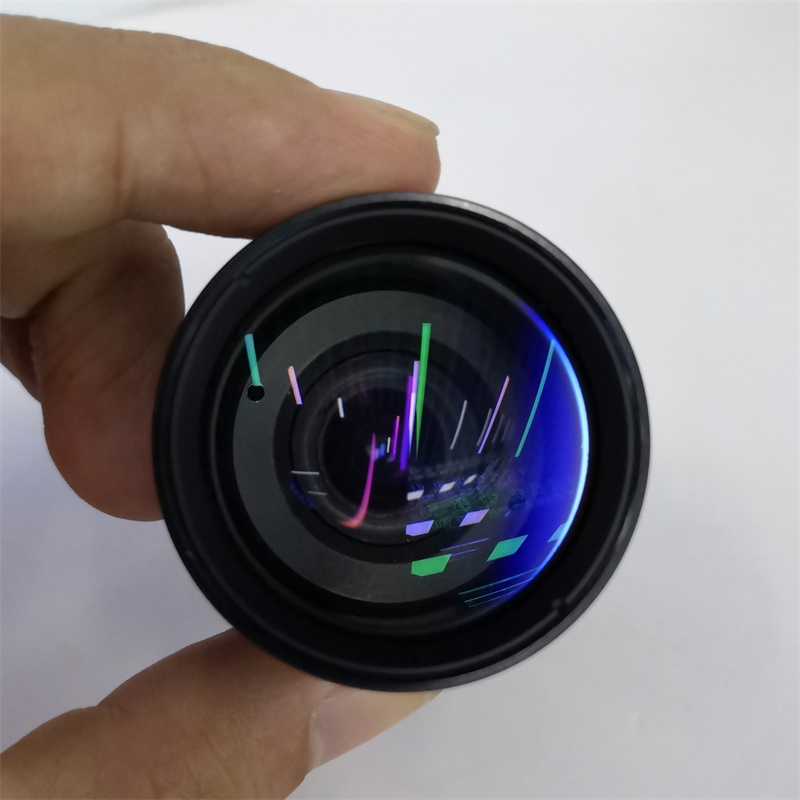

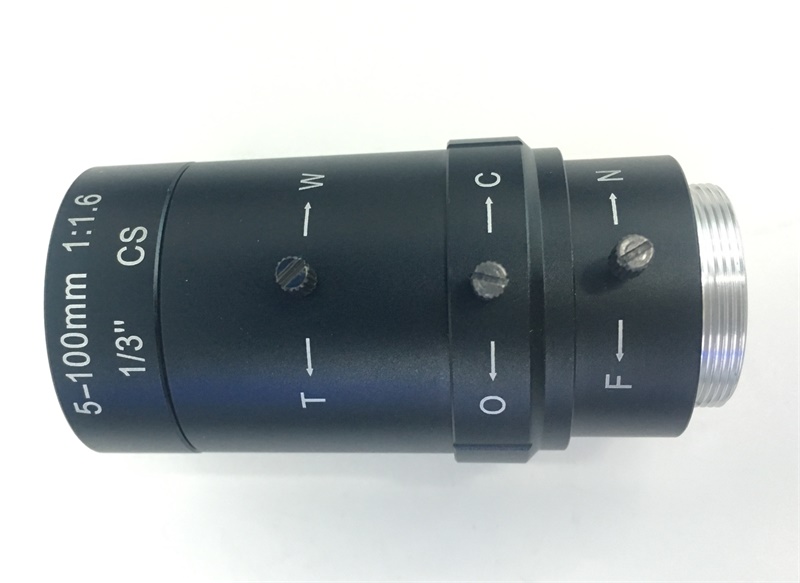

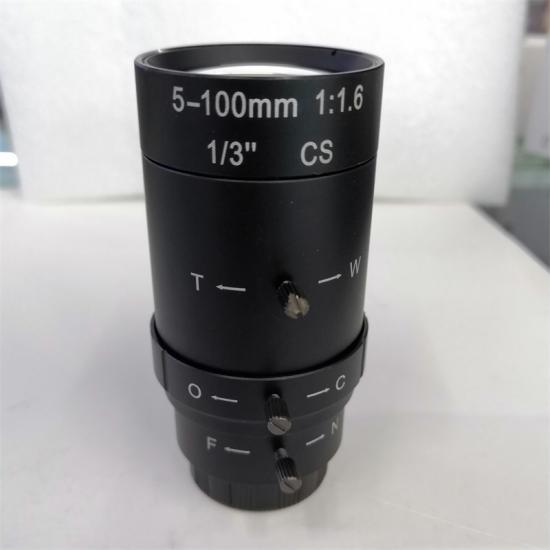

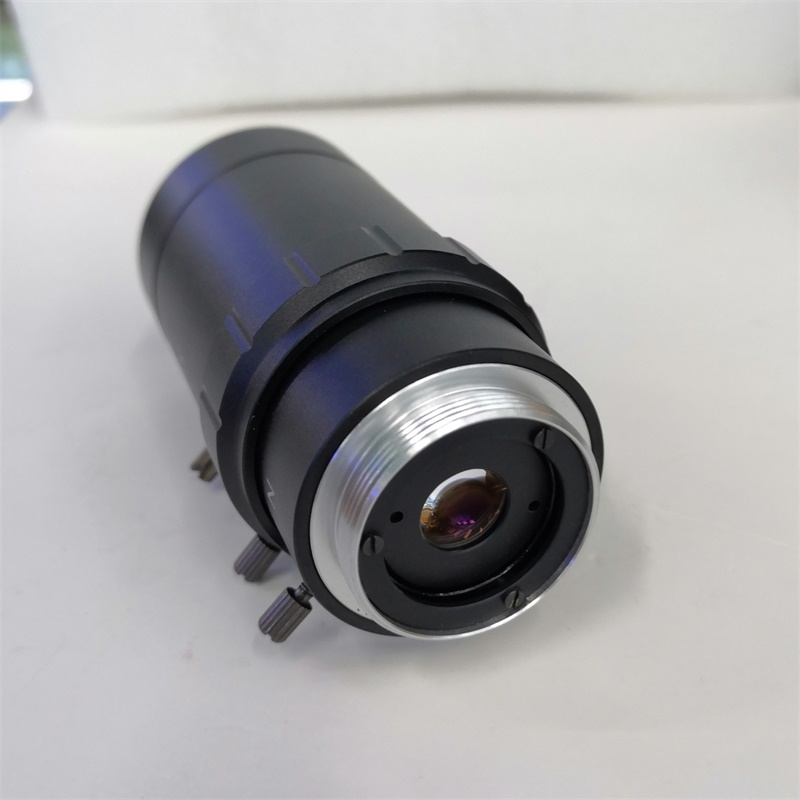

Product Name: 1/3 20X Optional Zoom Industrial Camera Lens CS Mount F1.6
Product Advantage:
1, 20X Optical Lens for Zoom CCTV Camera
2, 2 Megapixels high resolution Lens CS mount
3, Various application for CCTV camera, Industrial Camera lens
4, Metal body and Japanese Glasses materials
5, Manual Focus, Maual Varifocal zoom, Manual Iris Lens
product specification
Main technical feature of 20X Zoom Lens CCTV
1，Effect Focal Length: 5-100mm Vari-focal
2, Sensor Size: 1/3'' Cmos
3, F/No: F1.6 starlight Lens
4, Mount type: C-mount
5, DFOV: 76.2-3.4 degree
6, BFL: 6.75-17.5mm
7, Operation of Aperture: W/Lock
8, Operation of Varifocal: Manual focus ( W/Lock)
9, Optical Distortion: W -0.1%/ T0.05%
10, Resolution: 2 Megapixels 1080P FULL HD
11, M.O.D: 0.3meter

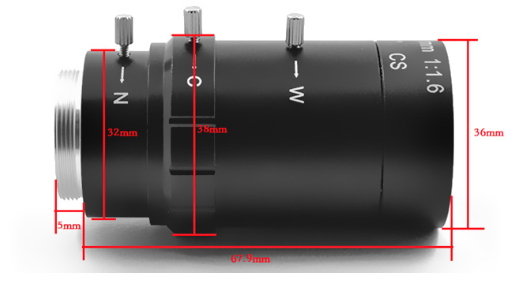

12, Product size: C36*72.8mm
13, Constructure of Lens: aluminium alloy body + Glasses lenses
14, Net weight of Product: 200 gram
15, IR Filter: 400-850nm
16, Operation temperture: -20 to +80 degree
Product Application of 5-100mm Manual Focus Lens
1, Hikivision/Dahua CCTV Camera, Zoom Camera
2，Industrial Camera / FA Lens
3, PTZ Camera
4, IP Network Camera
Vari-Focal Lenses
currently we have motorized zoom lens, manual focus lens, zoom camera module with various focal length range,
various cmos format and different zoom times, please source it in our website online or inquire us directly
other manual varifocal zoom lens for your refence
2.8-12mm, 4-12mm, 9-2mm, 5-50mm, 6-60mm, 8-50mm, 2.7-13.5mm, 3.6-11mm, 10-40mm etc
