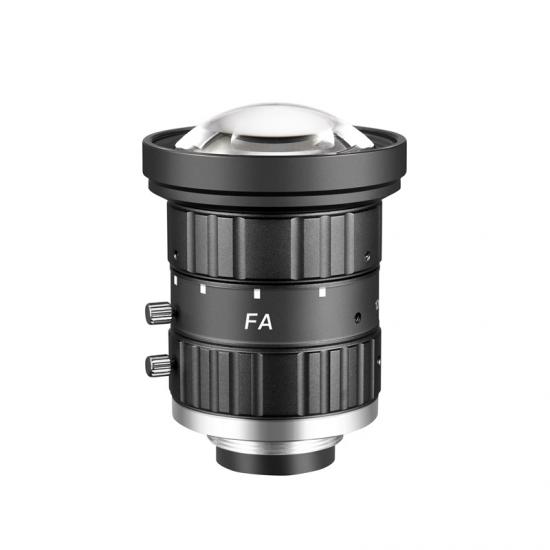

Product name: China 1.1 inch large format 12MP machine vision camera Lenses produced by chinese manufacturer in shenzhen.
Product Advantage:
1, Support Large Format Cmos up to 1.1 inch Sony Sensor
2, Ultra 4K 12 Megapixel bring top quality optical performance
3, Widely used in machine vision Camera and automatic production fields.
4, C mount 1 inch Industrial Camera Lenses with M.O.D. just 0.1 meter
Product Specification

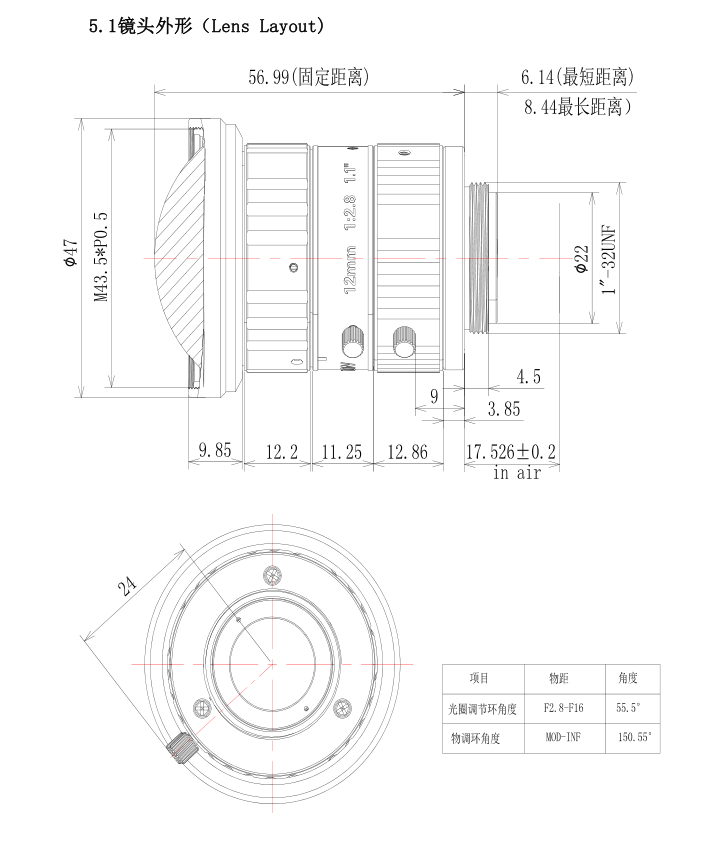

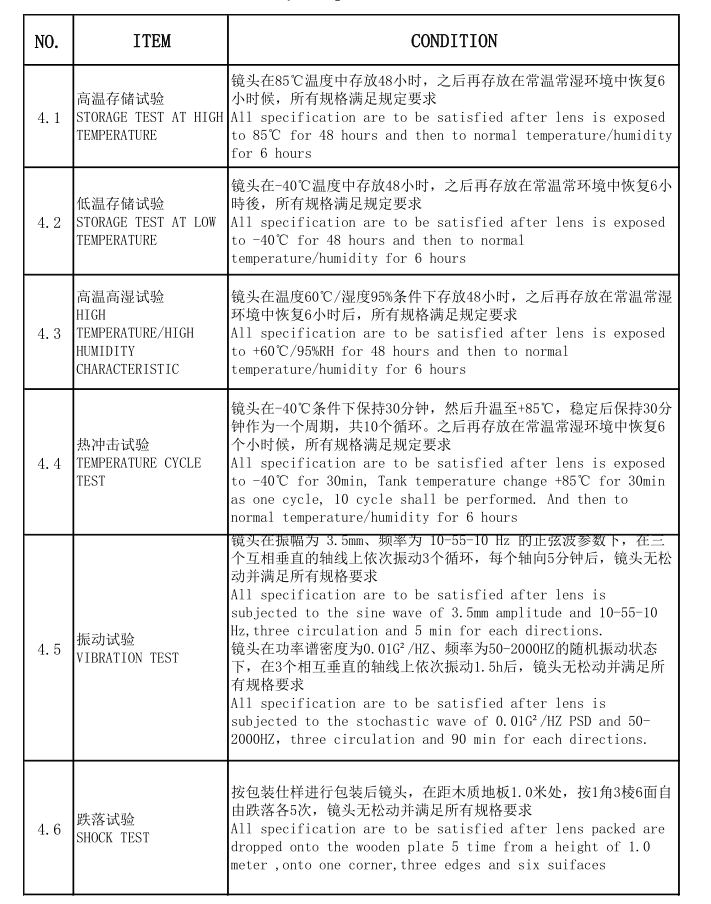

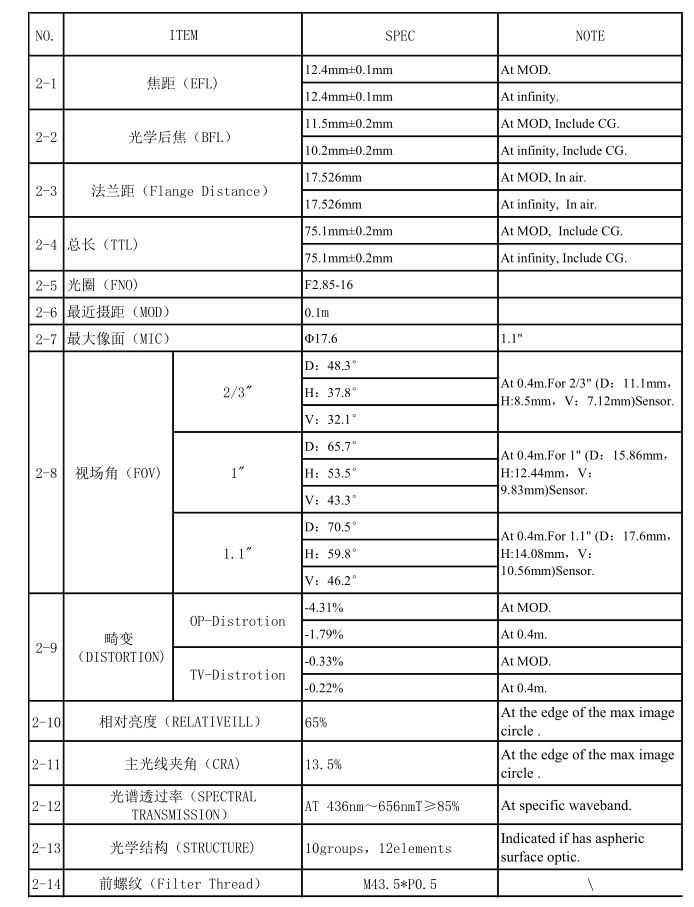

optical specification of 1.1 inch 12.4mm FA Lens / Machine vision Lens
1, Focal length: 12.4mm±0.1mm
2, Aperture F/No: F2.85-16
3, Optical back focal length (OBFL)
11.5mm±0.2mmAt MOD, Include CG
10.2mm±0.2mmAt infinity, Include CG
4. Flange back focal length (MBFL)
17.526mmAt MOD, In air
17.526mmAt infinity, In air
5. TTL: 75.1mm±0.2mm, At MOD, Include CG
75.1mm±0.2mm At infinity, Include CG
6, Max image circle：Φ17.6, 1.1 inch
7, Lens structure：10groups，12elements
(Indicated ifhas asphericsurface optic.)
8, Mount type：M43.5*P0.5 C mount
9, Clamp Force：60-600gf-cm
10, FOV (D/H/V) 1.1" D 70.5 / H：59.8 / V：46.2°
At 0.4m.For 1.1" (D：17.6mm，H:14.08mm，V：10.56mm)Sensor.
11, Optical Distortion
OP-Distrotion-4.31%At MOD, -1.79%At 0.4m
TV-Distrotion-0.33%At MOD, -0.22%At 0.4m
12, Relative illumination 65%At the edge of the max image circle
13, CRA：13.5% At the edge of the max imagecircle .
14, M.O,D.: 0.1meter
15, MTF resolution: 12MP
16, SPECTRALTRANSMISSION
AT 436nm～656nmT≥85%At specific waveband
Iris operation: fixed
17, HSF&safety: RoHS
Product Application of 1 inch 12MP Lens
1,FA Lens ( Factory Automation FA Camera Lens)
2, Machine Vision Lens
3, HDMI/USB2.0/USB3.0 Industrial Camera work with standard C Mount Lens
4, Industrial Lens
5, automatic production field
Machine vision camera systems with 1 inch Industrial Lens / FA Lens 4K or 12MP can be used in packaging, modern logistics, transportation, security monitoring, printing, electronics, textiles, automobile manufacturing, tobacco, semiconductors, medical and pharmaceuticals and other fields.
1 inch industrial lenses with C mount application

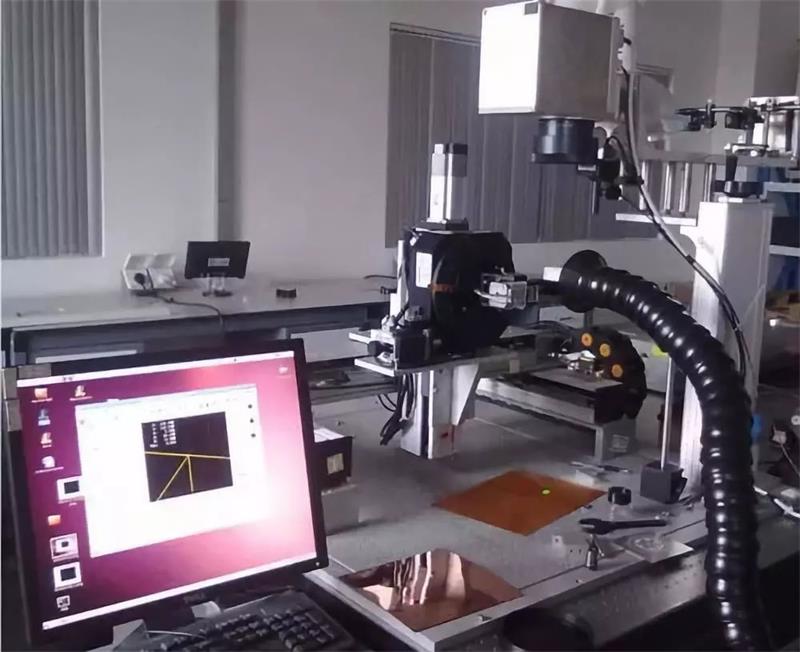

Industrial lenses are widely used in highly reflective object positioning detection, such as: metal, glass, film, wafers and other surface scratch detection, chip and silicon wafer damage detection, MARK point positioning, glass cutting machine, doping machine, SMT detection, patching machine and other industrial precision positioning, positioning, parts confirmation, dimensional measurement, industrial microscopy and other CCD visual pairing, measurement devices and other fields.
Industrial fixed-focus lenses are mainly used in small field of view, similar to industrial pipelines, scanning of fixed objects, traffic jams, etc. are widely used.

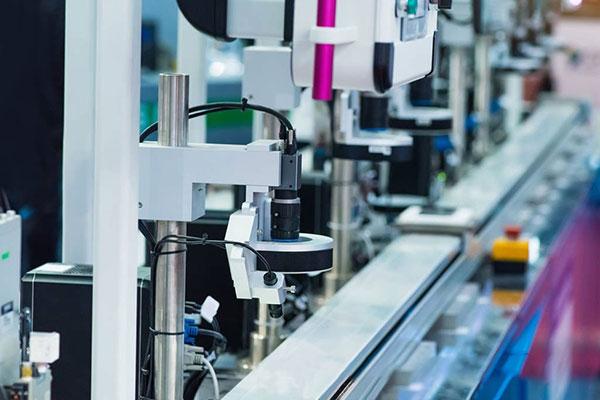

1 inch machine vision lens applications
1. Mechanical parts measurement
2. Plastic parts measurement
3. Glass and medicinal container measurement
4. Electronic component measurement
5. Particle measurement, measurement of high-precision color printing, semiconductor photomask measurement, filter control, blood analysis and cell number calculation
6. Visual positioning of mechanical equipment, semiconductor inspection, wafer, wafer inspection, dispensing positioning, liquid crystal display inspection
7. Semiconductor and electronics industries, such as PCB printed circuits: various production and assembly techniques for printed circuit boards; single, double-sided, multilayer circuit boards, copper clad laminates and required materials and auxiliary materials; electronic packaging technology and equipment ; Screen printing equipment and screen peripheral materials. SMT surface mount: SMT process and equipment, welding equipment, testing equipment, rework equipment and various auxiliary tools and accessories, SMT materials, patch tablets, adhesives, fluxes, etc. Electronic production and processing equipment: electronic component manufacturing equipment, semiconductor and integrated circuit manufacturing equipment, component molding equipment, electronic tooling
8. The industrial lens can be used to identify and detect the product's size, shape, color, etc. according to user requirements;
Industrial lens can monitor and eliminate NG products on the production line; label digital high-speed contrast detection; detect the shape defects and dimensions of electronic components in the high-speed assembly line, detect the circuit board circuit and socket position, detect the amount of injection liquid, and print the batch number on the drug packaging , Production date and shelf life text inspection; food filling line online inspection, etc.
9. Automatic optical inspection,
Face recognition, driverless cars,
Product quality classification,
Automatic inspection of printing quality,
Text recognition,
Texture recognition
Tracking location

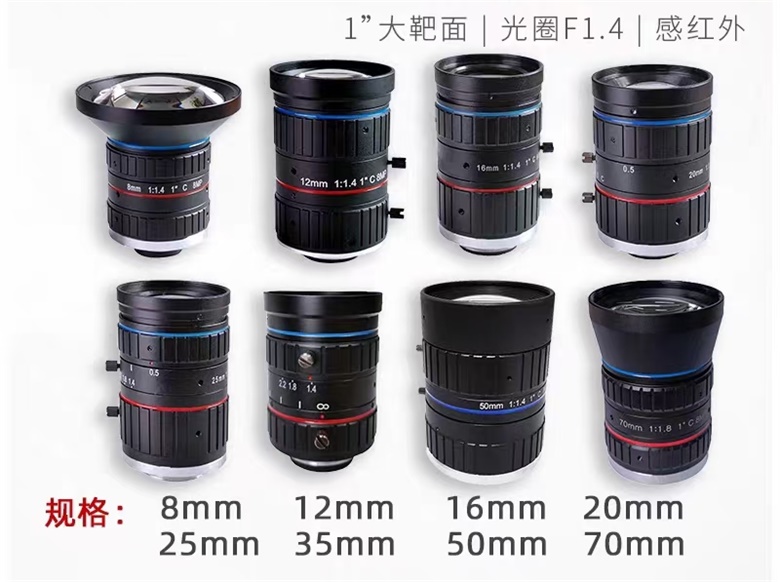

meanwhile we have other following 1 inch Industrial Camera Lenses/ Machine Vision Camera Lens for your selection
