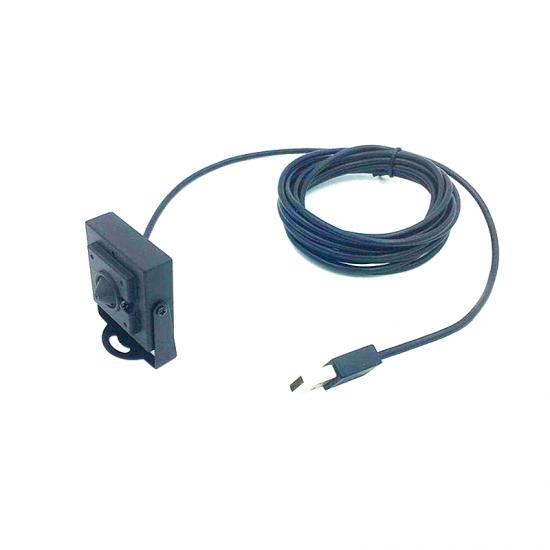

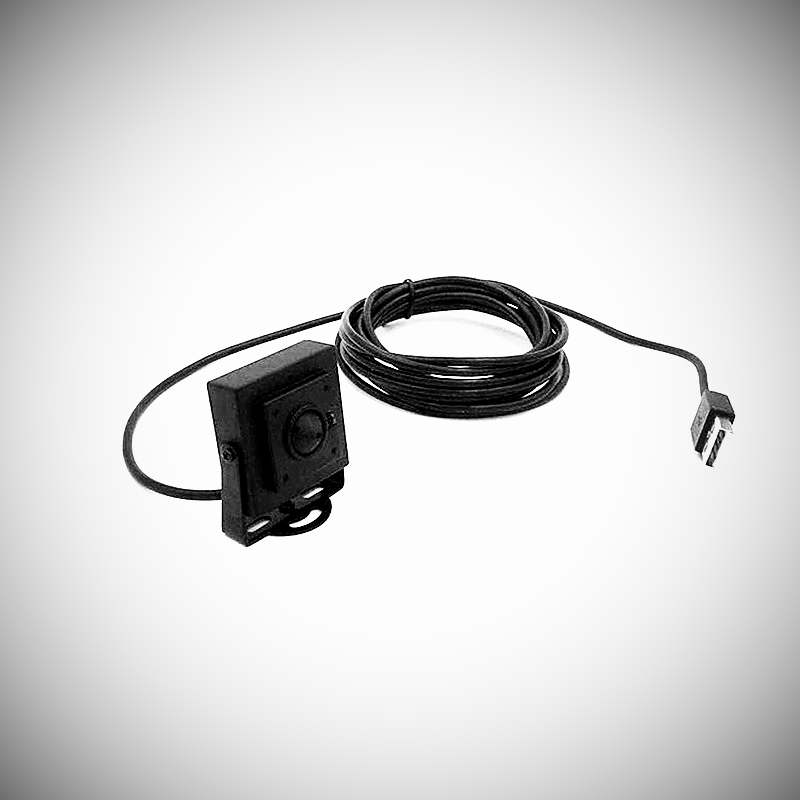

Product Name: China factory outlet low cost HD USB UVC Camera webcam for commercial security
Product Advantage
1, Can change into Type-C, USB Micro, AHD/BNC Analog Signal interface
2, Support standard USB UVC agreement, free driver, plug and play
3, lowest 0.01 low lux low light OV chipset insure one wonderful good night vision effect
4, Widely used in portable CCTV Camera System, Commercial Monitoring and Home CCTV system
5, 720P UVC Camera connect with any device with USB 2.0 or 1.1 interface
Product Specifications Of 720P USB Camera
|
Product Name |
Night Vision HD USB Camera 720P |
|
Cmos Sensor |
½.8 inch H62 Cmos 0.01Lux |
|
Video Resolution |
1280X720, 720P@30fps |
|
Lens FOV |
DFOV 102degree, HFOV 92degree |
|
Photo Pixel |
1.0 Megapixels |
|
Photo Format |
MJPG |
|
video output |
1Vp-p 75 Negative |
|
Lens Focal Length EFL |
3.7mm standard cctv lens m12 |
|
Lens Construction |
1.0MP 1G3P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.01LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Support, |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
36*36mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
2Meter ( 1m/5m/other length available custom made) |
|
Microphone |
No |
|
Certificated |
UL/USB-IF/WHQL/CE /ROHS |
|
standard |
Follow UVC standard |
|
Default Property |
Brightness contrast saturation ,hue sharpness ,white balance, game exposure controlled |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, We can adjust other size USB case to meet your special demand
2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by Network, BNC/AHD, OTG Type C etc
4, we can exchange or equip other focal length 2.1mm, 1.05mm,2.8mm, 3.2mm, 6mm, 4mm, 8mm, 12mm, 16mm,21mm, 25mm, 2.3mm low distortion 120 degree, and 4.6mm non-distortion lens, 185/195/200/210/220 Degree Fisheye Lens to meet your more special requirements.
Product Application of Goobuy 720P USB Webcam
(1) All-in-one machine, POS equipment, ATM Machine, POS equipment, STB,
automatic vending machine, Advertising LCD Displayer,
(2)Mobile phone (OTG), AR/VR, smart box TV BOX, 3D scanner,MID Ipad, laptop, Any Andriod Device.
(3)Embedded Systems, Iris/Face recognition technology，Smarthome, automobile Industry, Vehicle video applications
(4)attendance machine, industrial endoscopes, medical instrument，Industrial Machine and equipments，Voting system
(5) Home/Commercial/Industry security equipment,Robot and machine vision,Monitoring 3D printer,safety box, Baby Monitoring
(6) AI intelligent machine/Systems, Video conference / video teaching
(7) Laboratory Instruments, remote control monitoring, environmental monitoring
Car and boat control, oil field equipment, Assisting medical treatment
