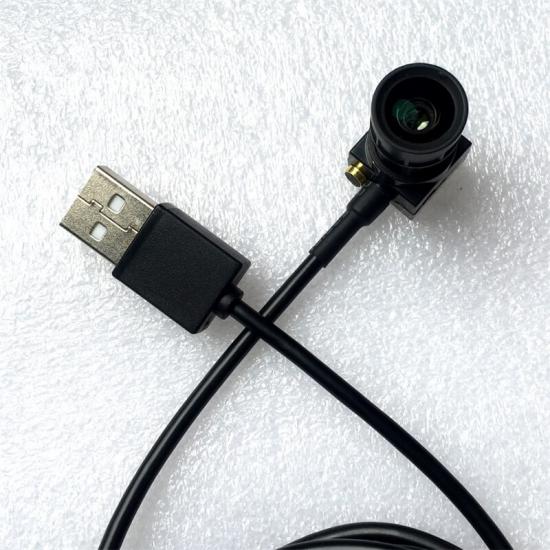

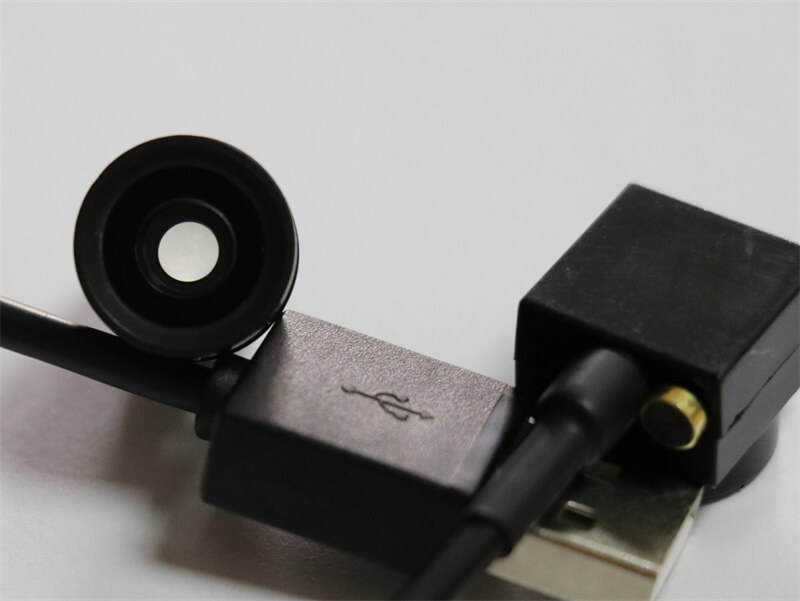

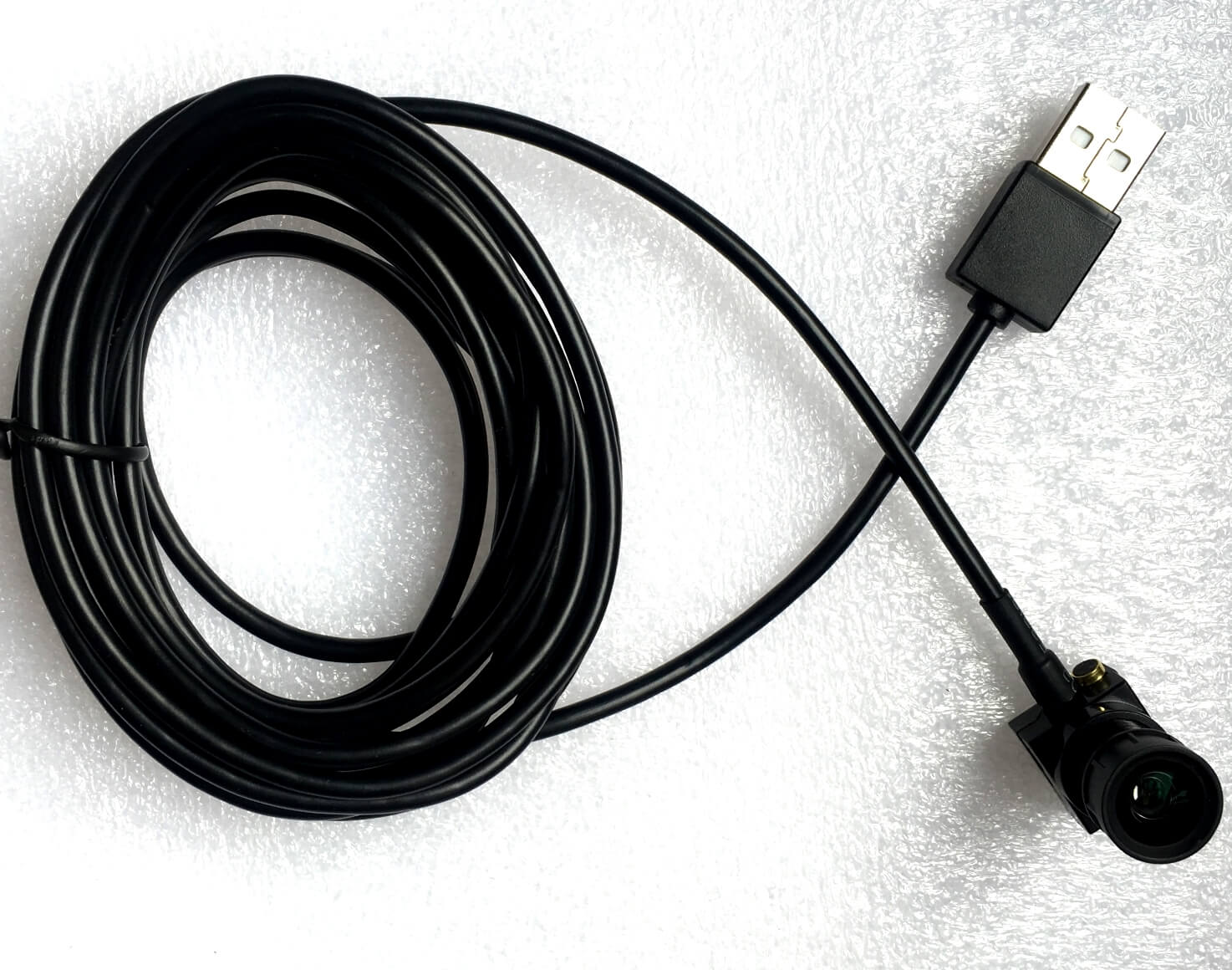

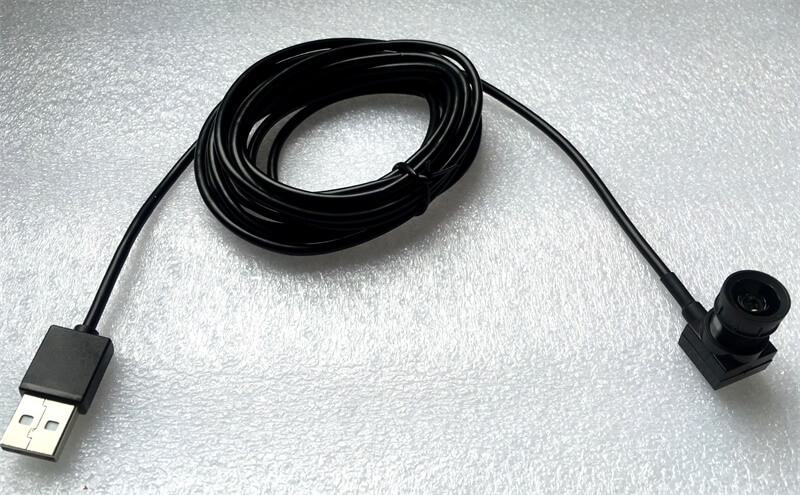

Product Name: F1.0 Dark light night vision school/Car/Home/Office/Warehouse USB Camera Module with USB 2.0 port
Product Advantage
1, 1080P FULL HD Video 5MP USB Camera with Free Driver
2, 0.01lux Low Lux USB Camera Module with USB 2.0 port
3, High Resolution 5MP Night Vision USB Camera for Car Parking and Home/office/warehouse security
4, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
Product Specifcation of 1080P Low Light USB Cameras
|
Product Name |
USB Dark light Night Vision Cameras |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 95 degree, HFOV 81 degree |
|
Photo Pixel |
5Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
4mm M12 cctv lenses
|
|
Lens Construction |
5MP 2G5P |
|
F/No Aperture |
F1.0 black light night vision |
|
AGC |
OSD |
|
Minimum illumination |
0.01LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Built in Microphone, Support |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
15*15*26mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
3Meter (1meter or other length available custom) |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change our other M12 lens freely, DIY interchangeable Lens design
2, We can adjust USB cable Length or change it with foldable Pipe(shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cctv Lens like 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm, 25mm, 2.15mm etc in your order, which will help you save more money but extend more applications easily
Product Application
1, machinery equipment, all-in-one machine, POS equipment
2, Vehicle video applications, Home video surveillance system
3, Night Camera for Car parking Monitor, Car Night Camera
Custom-made USB Cameras
Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business. In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together
P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too
