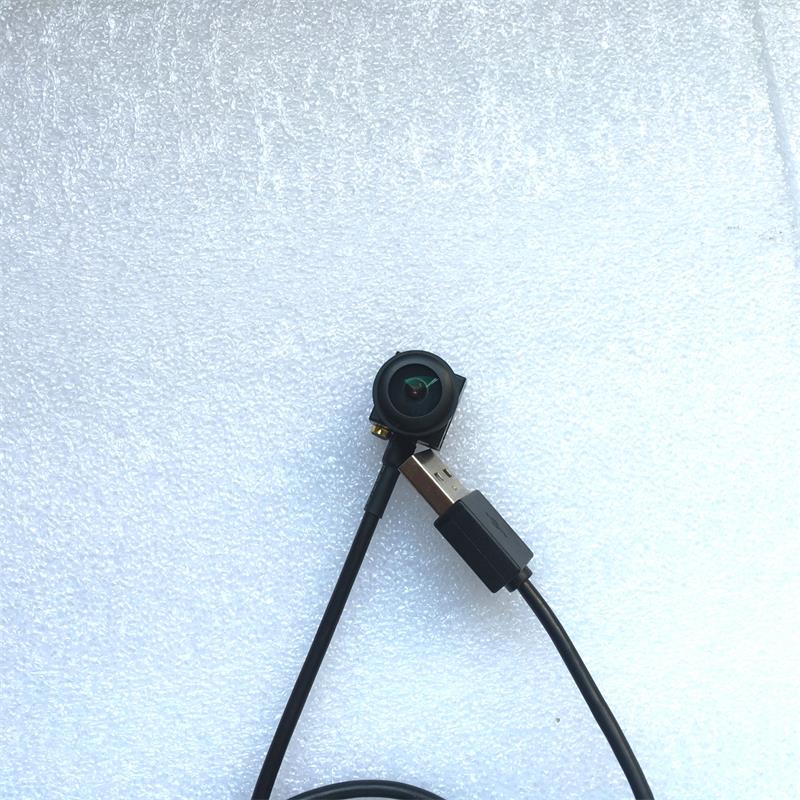

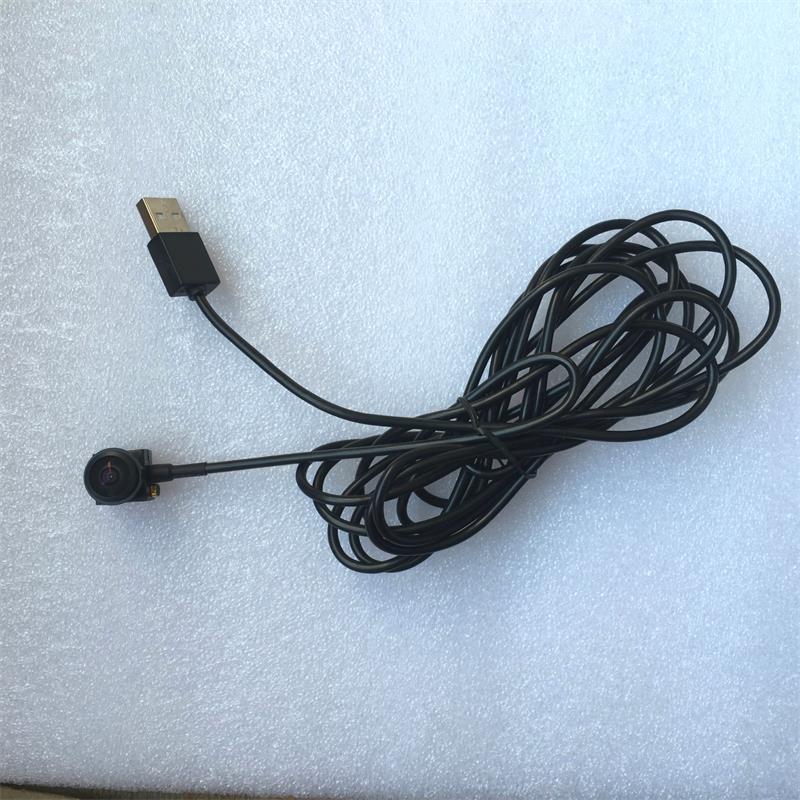

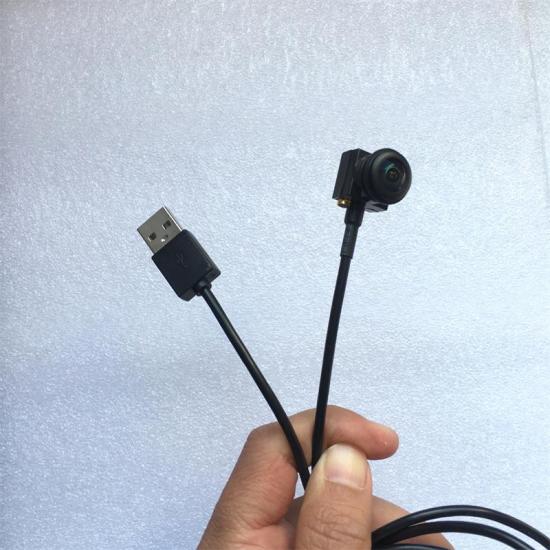

Product name：2021 hot sale China Starlight USB Camera Module work with all USB2.0 port
Product Advantage:
1, 0.01 Low lux Sensor + F1.4 Black light Lens creat Best Night Vision Usb Camera
2, 1080P@30fps, 720P@60fps USB Camera, Apply for USB Video Camera and many applications
3, 24H Day and Night IR-correction 230 degree USB Camera with interchangeable Lens design
4, Car Parking/Home/Commercial/Industry Surveillance, plug and play, no drive
Product Specifications Of 1080P Fisheye Lens Night Vision Usb Camera
|
Product Name |
5mp 0.01Lux Night Vision USB Camera |
|
Image Sensor |
GalaxyCore ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps FHD |
|
Lens Angle of View |
DFOV 230 degree, HFOV 215degree |
|
Photo Pixel |
5Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
1.4mm Ultra Fisheye Lens |
|
Lens Construction |
5MP 1G+1IRF |
|
F/No Aperture |
F1.4 Large Aperture, Starlight Night Vision |
|
AGC |
OSD |
|
Minimum illumination |
0.01LUX |
|
S/N Ratio |
≥52dB |
|
Gammar Characteristic |
Auto r=0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Built in Microphone, Support |
|
Synchronizing system |
internal |
|
Power consumption |
150mA |
|
Product Measurement |
15*15*20mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
2Meter |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Product Application of 0.01 Lux Usb Camera
1, Night Vision Camera for Home or warehouse or Office CCTV
2, Night Camera for Car parking Monitor, Car Night Camera
3, Night Movement Camera, Portable Camera For Car At Night, Small Night Camera
4, oil field equipment/machine, environmental monitoring in the Night
Note & Remarks
1, You can change our other M12 optical lens
2, We can adjust USB cable Length or change it with foldable Pipe(shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cctv Lens like 2.3mm, 4mm, 6mm, 8mm, 12mm, 16mm, 2.15mm etc together in your order
Application of Goobuy Industrial USB Cameras
(1) All-in-one machine, POS equipment, ATM Machine, POS equipment, STB,
automatic vending machine, Advertising LCD Displayer,
(2)Mobile phone (OTG), AR/VR, smart box TV BOX, 3D scanner,MID Ipad, laptop, Any Andriod Device.
(3)Embedded Systems, Iris/Face recognition technology，Smarthome, automobile Industry, Vehicle video applications
(4)attendance machine, industrial endoscopes, medical instrument，Industrial Machine and equipments，Voting system
(5) Home/Commercial/Industry security equipment,Robot and machine vision,Monitoring 3D printer,safety box, Baby Monitoring
(6) AI intelligent machine/Systems, Video conference / video teaching
(7) Laboratory Instruments, remote control monitoring, environmental monitoring
Car and boat control, oil field equipment, Assisting medical treatment
