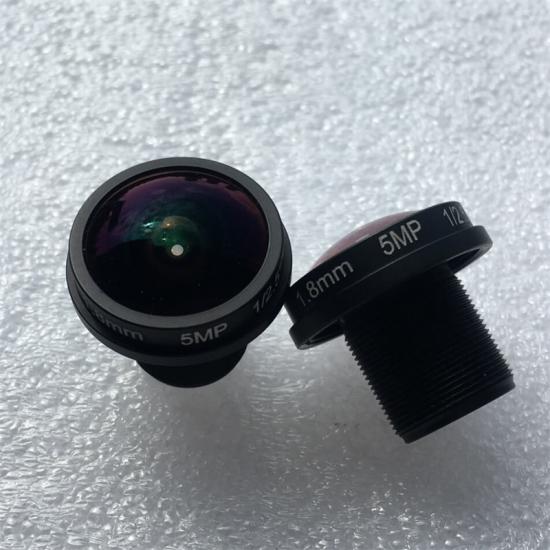

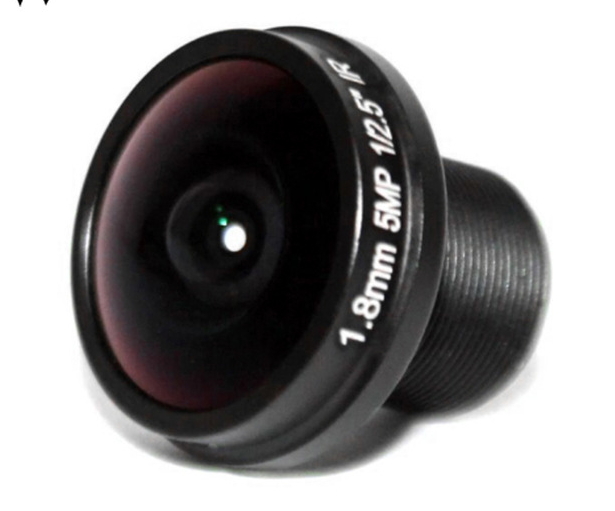

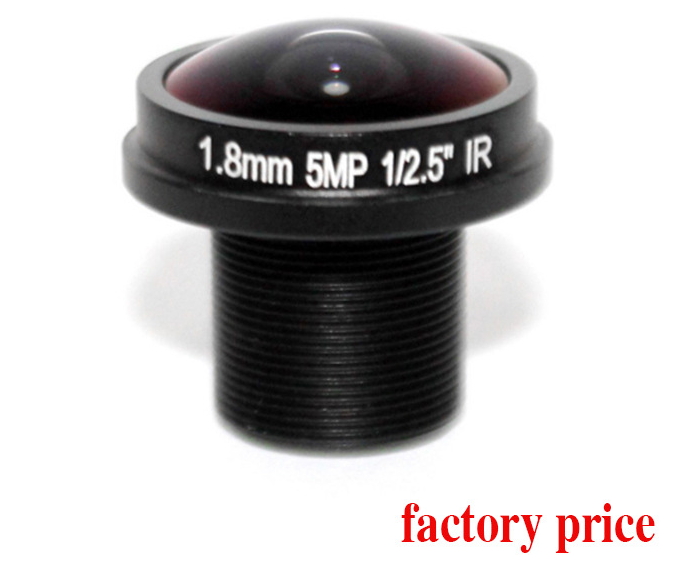

Product name: 1.8mm short Focal Length 360 IP Camera Fisheye Lens
product advantage
1， low cost Fisheye Lens for Projector and For Camera CCTV Security
2, 5MP high resolution Fisheye project Lens
3, 190 degree Fisheye Lens For Security Camera IP Network
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specificaiton
Technical Feature of 1.8mm Fish Eye Lens
1,MTF Resolution: 5MP
2,Focal-Length: 1.8mm
3,Aperture D/f'： F2.0
4,mount type： M12*0.5
5,Image format: 1/3 cmos
6,DOF(D/H/V): 190/142/102 degree
7,dimension: ￠20*19.9
8,OBFL: 6.3mm
9,MBFL: 3.8mm
10,TTL: 18.3mm
11,M.O.D: 0.2 meter
12,Lens Constructure: 5Groups 6G Glass
13,Working Temperature: -40 to + 80 degree
14, Iris: Fixed, Focus: manual, Zoom: Fixed
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,
Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,
CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
