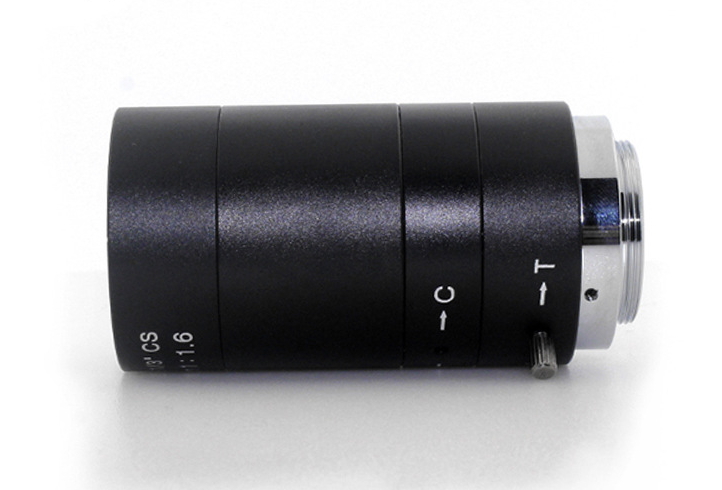

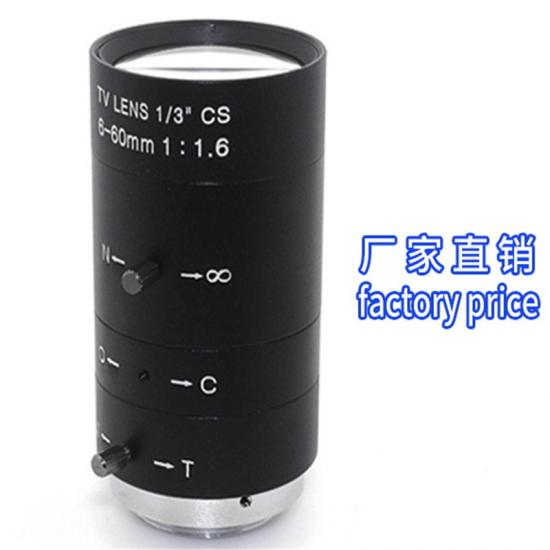

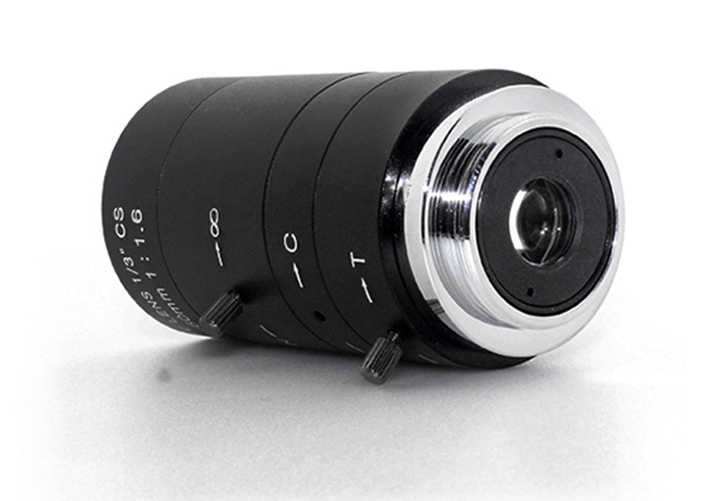

Product name: 1/3''Sensor 6-60mm Manual Focus Zoom Lens CS Mount for CCTV Camera
product advantage:
1, 6-60mm 10X Optical Zoom cctv Camera Zoom Lens CS Mount
2, 6-60mm manual focusing, manual iris Varifocal Lens
3, 720P HD resolution and starlight F1.6 Aperture good for Night Vision Camera
Product Specification
Parameter of Manual Focus 6-60mm Security Camera Zoom Lens
1，Focal Length:6-60mm
2，Aperture F/No: 1.6 Starlight Varifocal Lens
3,Mount type: CS Mount
4,Pixel: 1.3MP
5,Format(inch)： 1/3" Cmos Sensor
6,Horizontal Field：51.5°~5.6°
7,Dimension(mm) φ41×48*L70mm
8,Weight(g)：140gram
9,M.O.D(m)：0.3 meter
10,Mechanical Back F.L： 12.526mm
11,Lens Construction metal
12,Operating Temerature： -20℃～+60℃
13,Operation Mode
Focus：Manual
Zoom：Manual
Iris：Manual
14, TTL: 75mm
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for Night Vision CCTV Security Camera， Surveillance Cameras
3, Lens for professional IP Camera
4, Lens for Vari-Focal Camera with CS Mount
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
