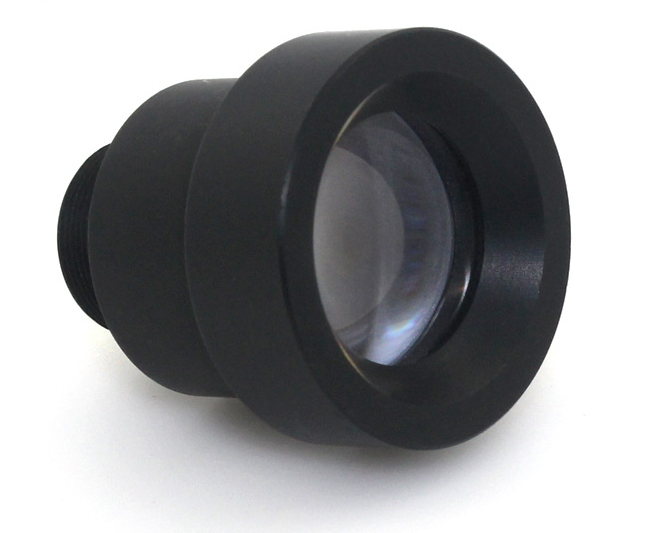

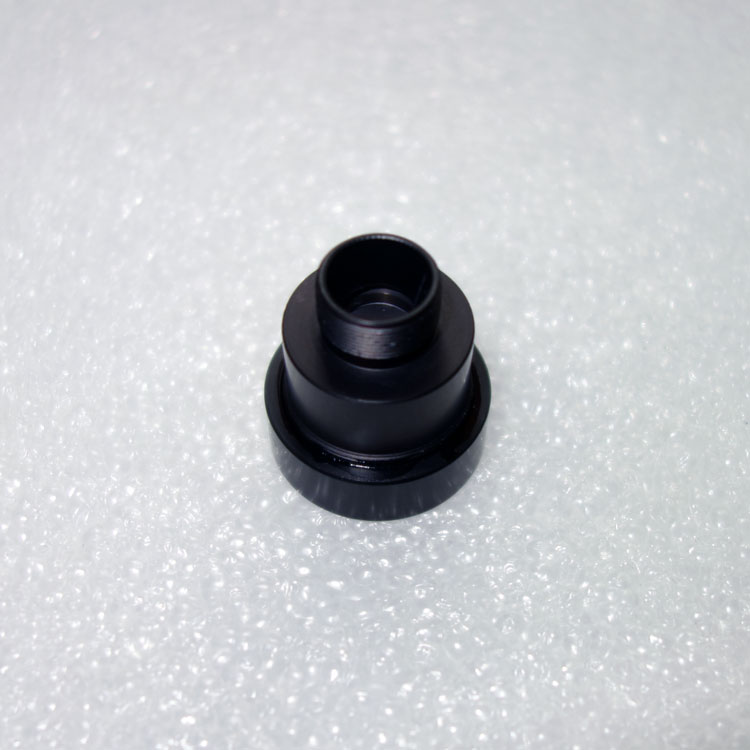

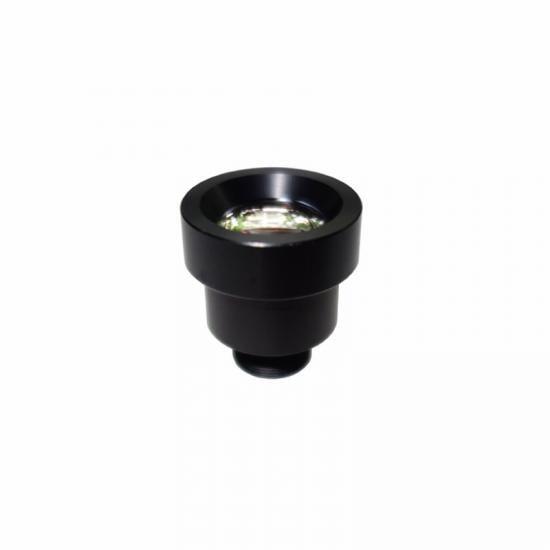

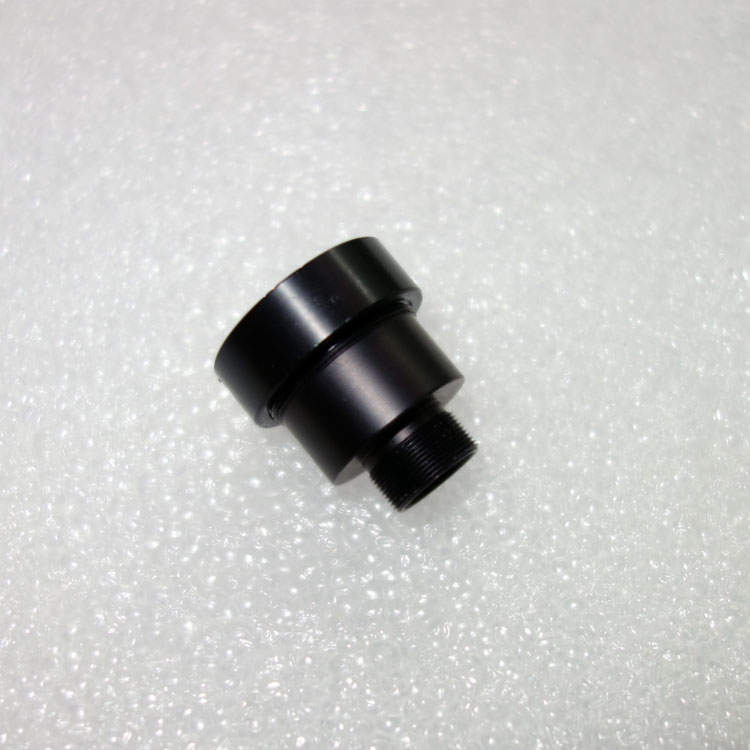

Product Name: 1/3" 25mm Long Focal Length MTV Board Lens
product advantage
1, 25mm Long Focal Length Lens no distortion
2, CCTV Camera Lens 25mm with small Angles
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, Glasses material are imported from Japan
Product Specification:
Technical Feature of 25mm MTV Lens
1,Model No: M12-DS-25mm-C
2.Focal Length：25mm
3.Format：1/3"
4.Aperture：F2.0
5.mount type：M12*P0.5
6.Field Of View: 12.2°
7.BFL: 12.64mm
8.M.O.D: 0.2m
9.Dimension: 24*25.3
10.Structure:4G+IR
11.TTL: 37.94mm
Product Application
1, Lens for telephoto Camera
2, Lens for security Camera
3, Lens for ITS Lens
4, Lens for surveillance camera
5, Lens for telescope
6, Lens for Forest Camera
Custom Camera Lens , custom-made Lenses manufacturer
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
