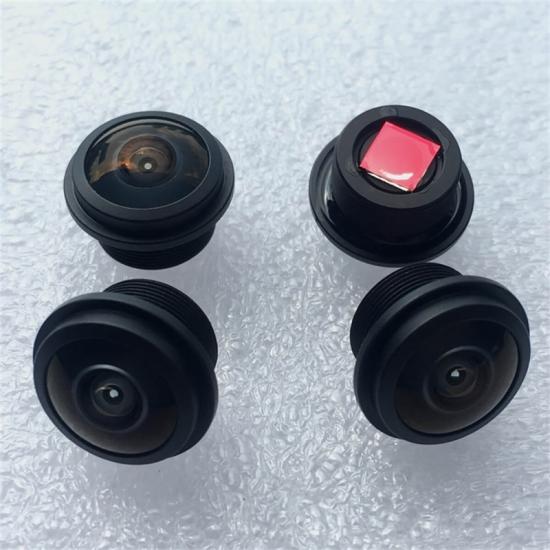

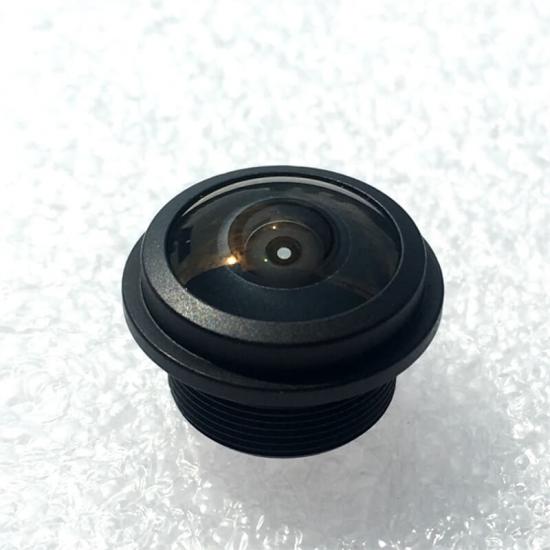

Product name: 230 degree 1.4mm custom super fisheye 1/3'' m12 cctv lens TTL 13mm 6G
product advantage
1, 230 degree widest Fisheye Lens in current market
2, IP67 waterproof permit it to used for car surround view Lens and outdoor smart home camea lens

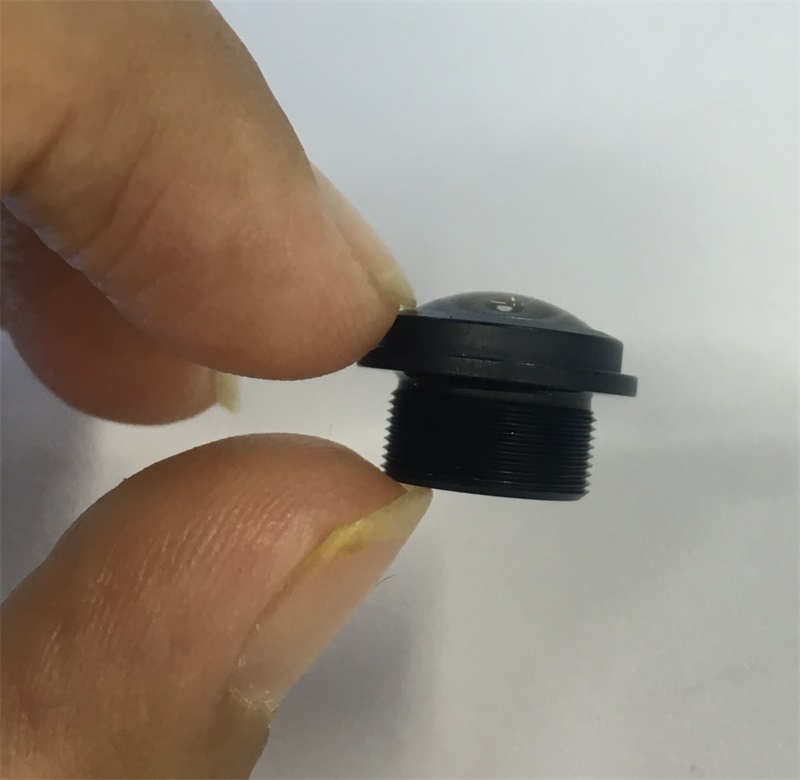

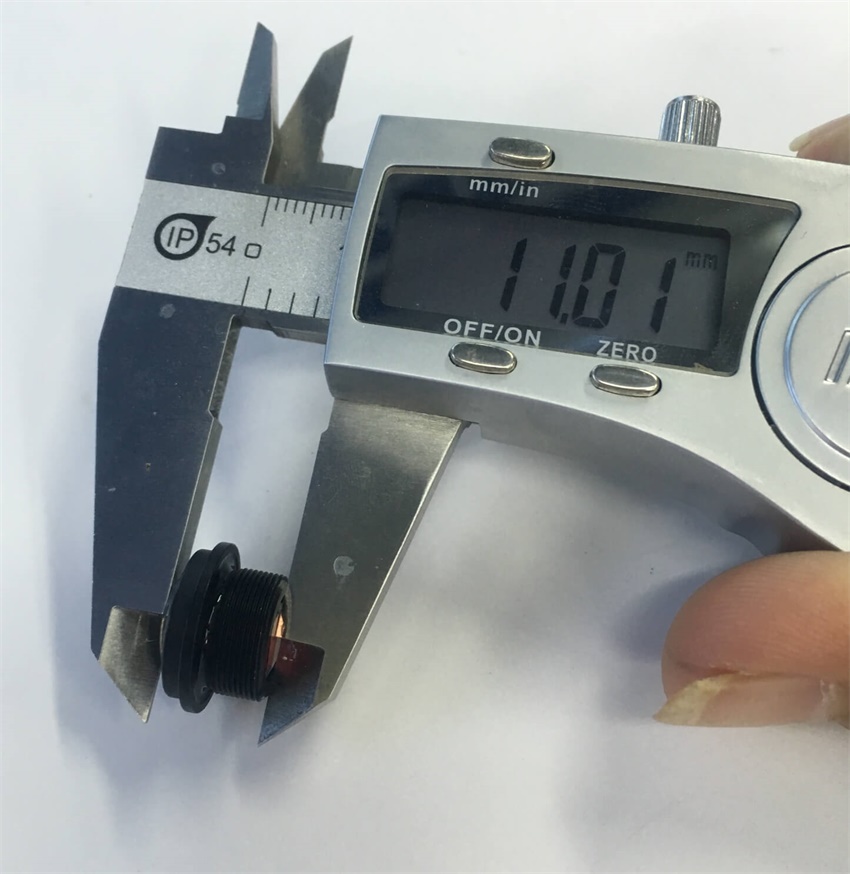

3, Short TTL Fisheye Lens, Compact structure, 5 Megapixel optical performance
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
Technical Feature of 230 degree Waterproof Fish Eye Lens
1, Matching Cmos size: 1/3"SENSOR
2, Effective Focal Length: 1.4±5%mm
3, MBFL: 2.1mm
4, FIELD OF VIEW FOV
VERTICAL 130°
HORIZONTAL 210°
DIAGONAL 230°Fish Eye Lens
5, Aperture F/No: 1.8±5%
6, TV-DISTORTION: <19%
7, REL.III U MATION >80%
8, CHIEF RAY ANGLE CRA: <20°
9, MAX IMAGE CIRCLE: C4.8
10,LENS CONSTRUCTION: 6G+IR Filter
11,IR Filter SPEC: T=50% 650±10nm
12,Mount Type: M12*0.5P
13,Waterproof Grade: IP67

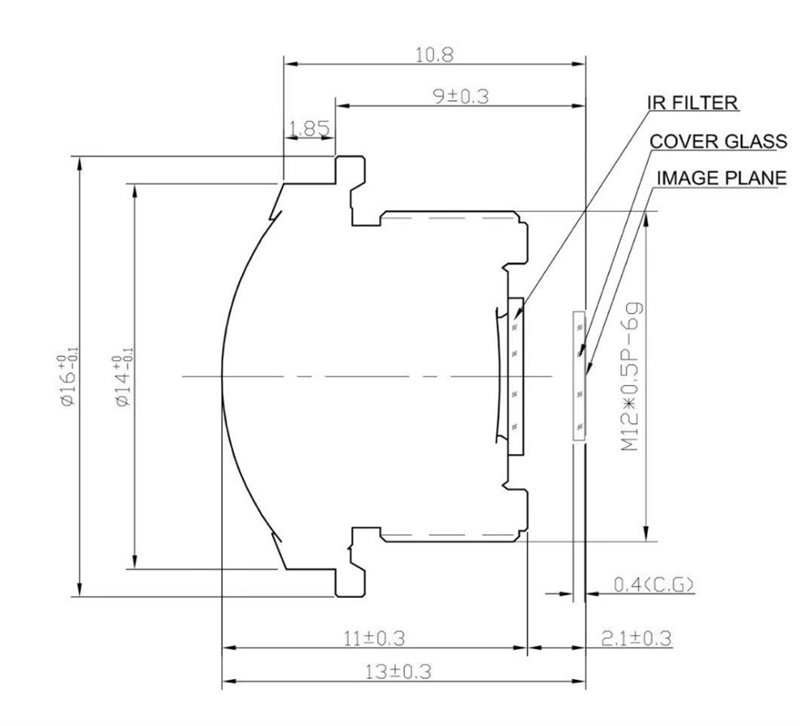

Technical datasheet of 1.4mm Fish Eye Lens
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
About Us
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers
where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc. of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
1),Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
2),Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing
- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
