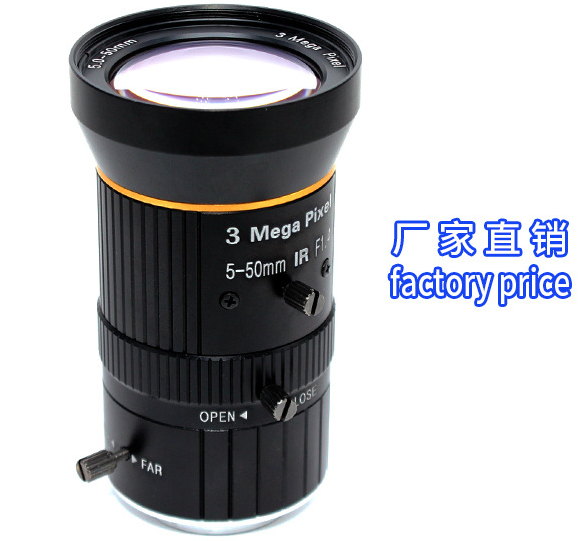

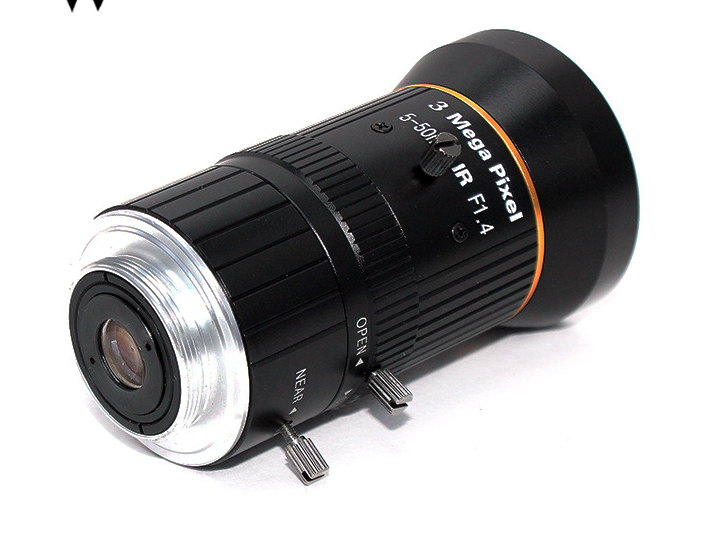

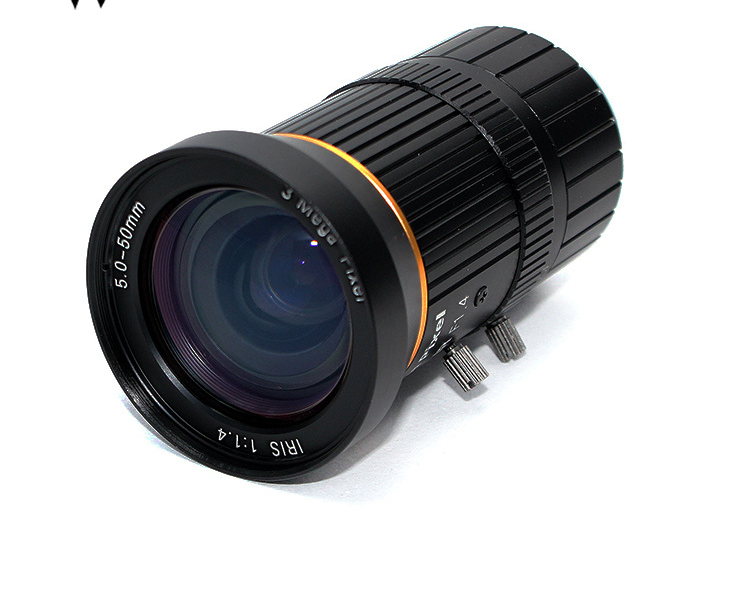

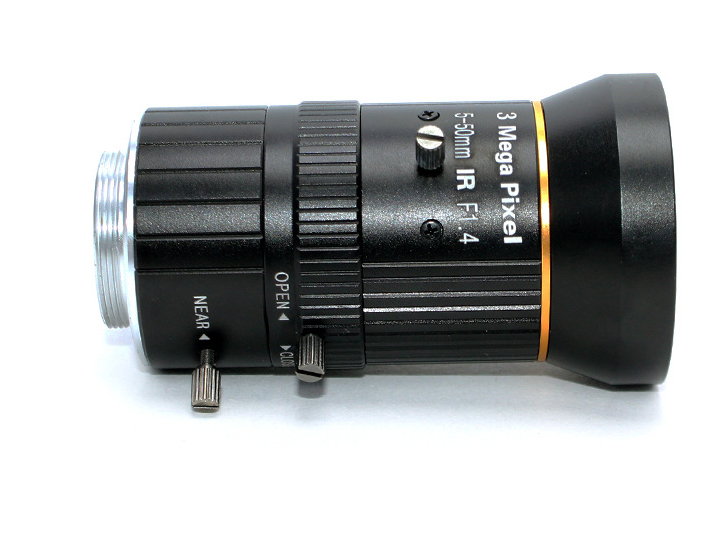

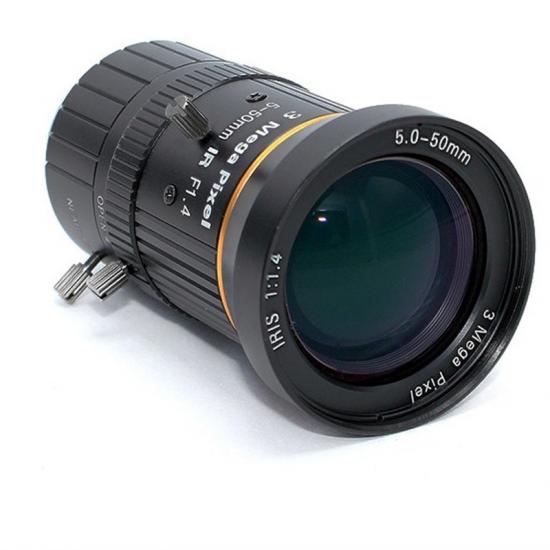

Product Name: 1/2.7 Cmos 5-50mm VariFocal Lens for Surveillance Cameras CS
Product Advantage
1, 10X optional Zoom Vari-focal, manual focusing Optical Zoom Lens
2, 1.4 Aperture Lens starlight good for CCTV Night vision Camera
3, Varifocal 5-50mm Optical Zoom Lens used for any varifocal security camera
4，Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
Technical Feature of 5-50mm Varifocal zoom Lens
1,Focal Length: 5-50mm Manual Focus
2,Cmos Sensor: 1/2.7''
3,Aperture F/No: F1.4
4,Mount Type: CS
5,F.O.V ( D/H/V) 51.5-5.36 degree
6,Mechanical Back Focal Length: 12.53mm
7,Iris Type: W/Lock manual
8, MTF Resolution: 3 Megapixel
9, M.O.D.: 0.25mm
10,Dimension: 44*74.5
11, Zoom Type: Manual W/Lock
12, Net Weight: 152.50 gram
13, Lens Structure: Metal+ 12 Glass
14, Remark: CNC Metal adapter ( can rotate 330 degree)
15, TTL: 74.5mm
Product Application
1, Lens for CCTV Network Camera
2, Lens for Live BroadCase
3, Lens for Vari-Focal CCTV Security Camera
4, Lens for Surveillance Cameras
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
