Product Name: 1/3''OV4689 2.7mm 6G wide angle car backing and front View lens
Product Advantage
1, 164 degree Ultra Wide Angle Lenses
2, 5 Megapixel resolution ideal as Smart Home Camera Lens
3, Sony IMX291 CCM Lens
4, Used in Board Camera, MTV Lens, Cmos Board Module etc
Production Specification
keying technical feature of 2.7mm smart home camera Lens
1，TTL：16.6mm
2, EFFECT Focal length：2.7mm
3, Aperture F/No: 1.8
4, Optical Back Focal Length：4.88mm
5, Mechnical Back Focal Length：3.86mm
6, Max image circle：6.8
7, FOV (D/H/V)：164/132/68 degree (1/2.8 IMX291)
8, Optical Distortion：H:-14.3%, V:-53.9%
9, Relative illumination：>49.7%
10, CRA：< 14.75 degree
11, mount type：M12*P0.5
12, Lens construction: 5 Glass+IR Full glasses design
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, Diameter of lens cap: C14
18, Waterproof Grade: IP67

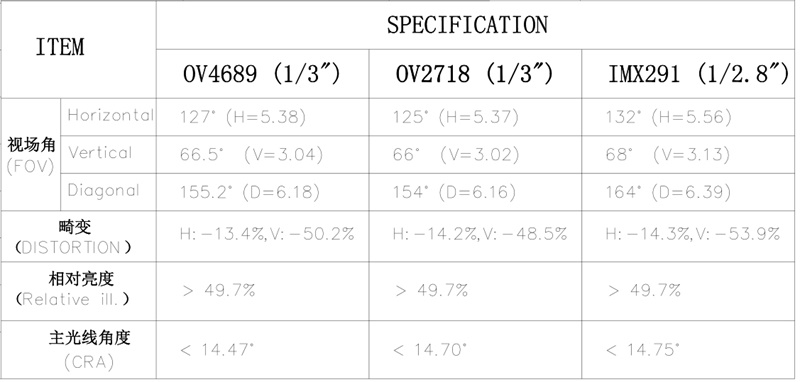

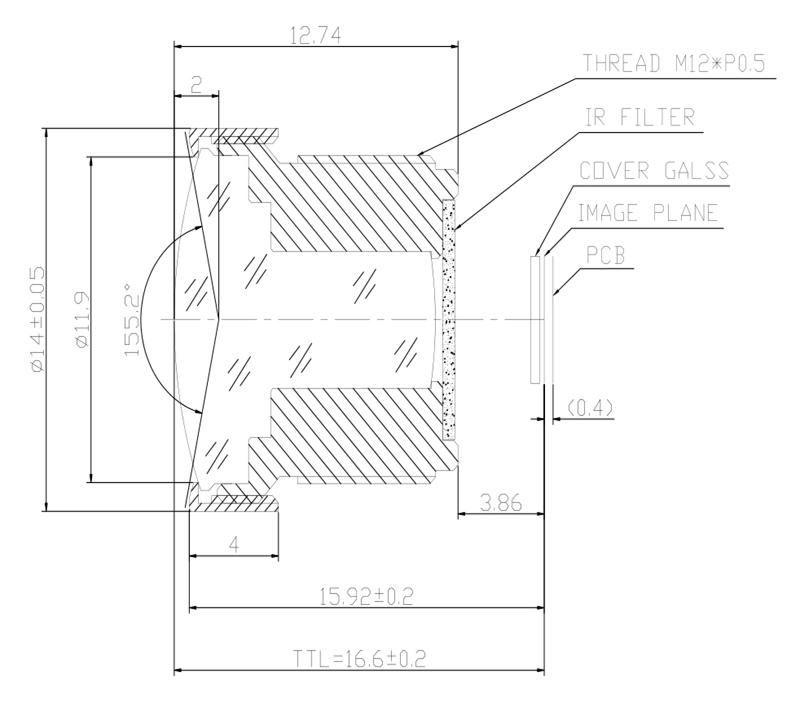

Technical datasheet of 2.7mm 1/3 Wide Angle Lens
Product Application
Lens for car surround view camera lens
Lens for automotive front and rearview camera
Lens for Smart Home Camera
Lens for fisheye projector
lens for 360 panoramic surveillance camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too.welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
