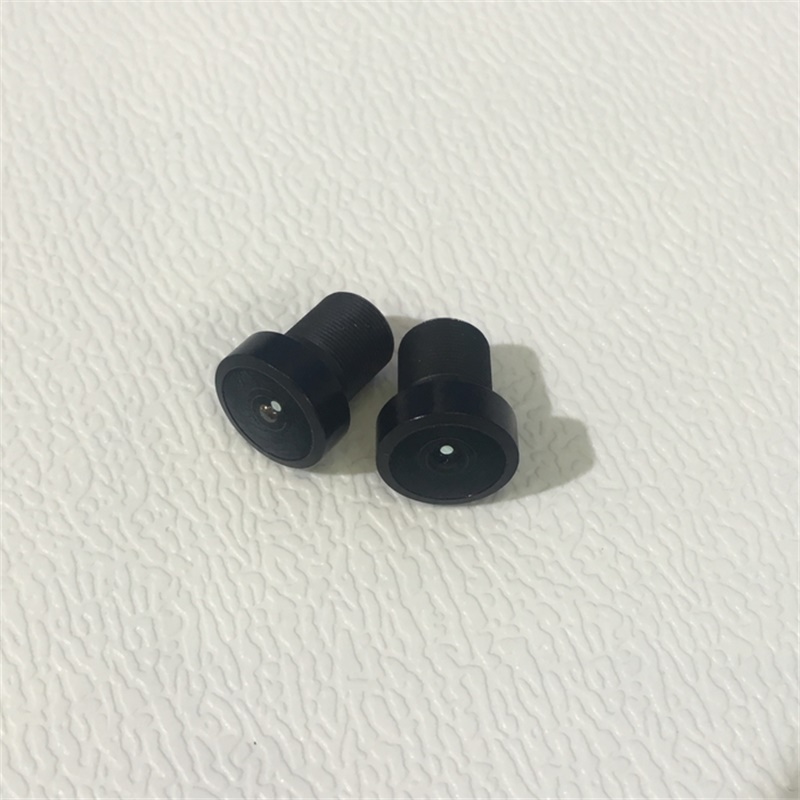

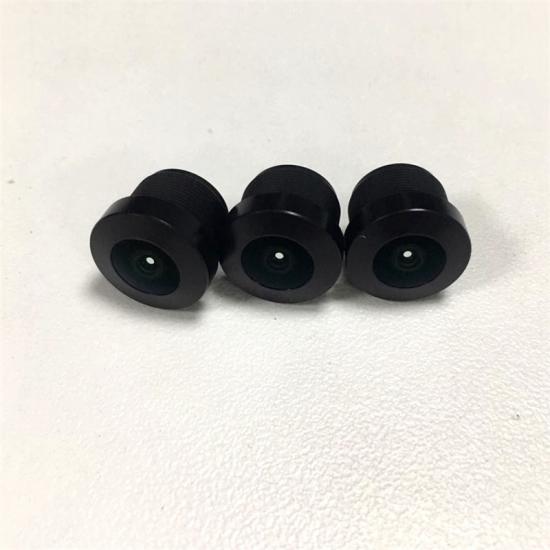

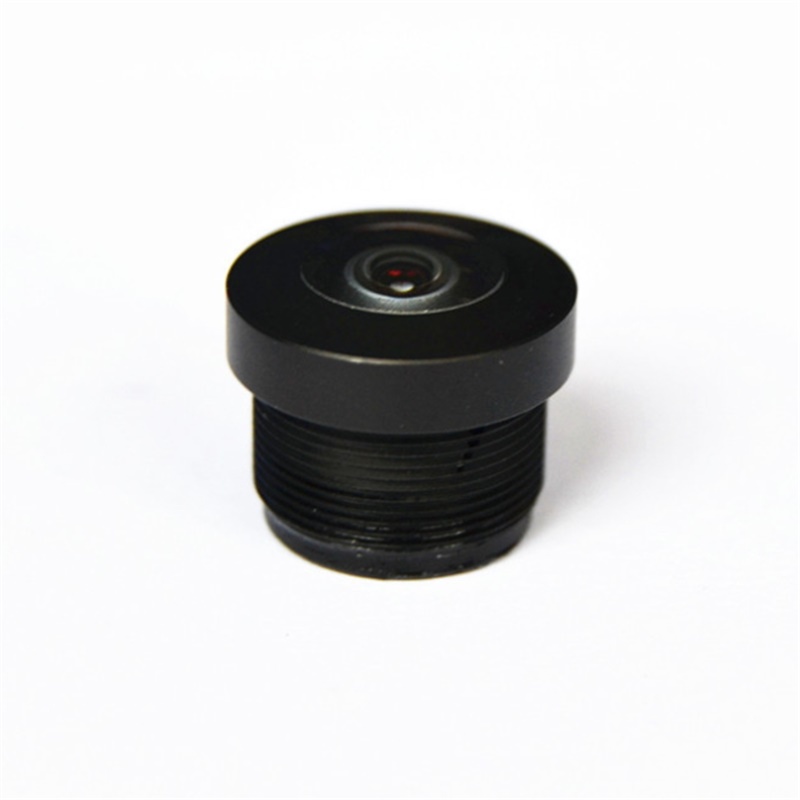

Product Name: 1/2.3 1.8mm 6G super Fish Eye Lens horizontal 200 degree Lens Panoramic 360
Product Advantage
1, work and support Large format 1/2.3'' Cmos
2, All Angles are 200 degree with IMX078 perfect for automotive camera lens
3, IP67 waterproof good for Car Surround View Camera Lens
4, Custom made Lenses, other Customized Lens are welcome
Product Specification
keying technical feature of 1.8mm m12 200 degree fisheye lens

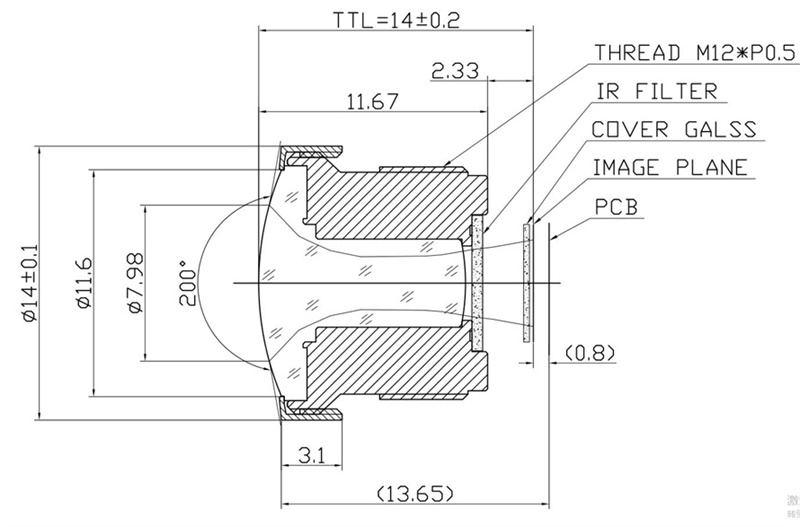

1，TTL： 14mm
2, EFFECT Focal length：1.8mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length：3.46mm
5, Mechnical Back Focal Length：2.33mm
6, Max image circle：4.7
7, FOV (D/H/V)： 200/200/200 degree
H/V/D Y=4.7 1/2.3 IMX078
8, Optical Distortion: -122.8%
9, Relative illumination: >50%
10, CRA: <15.32 degree

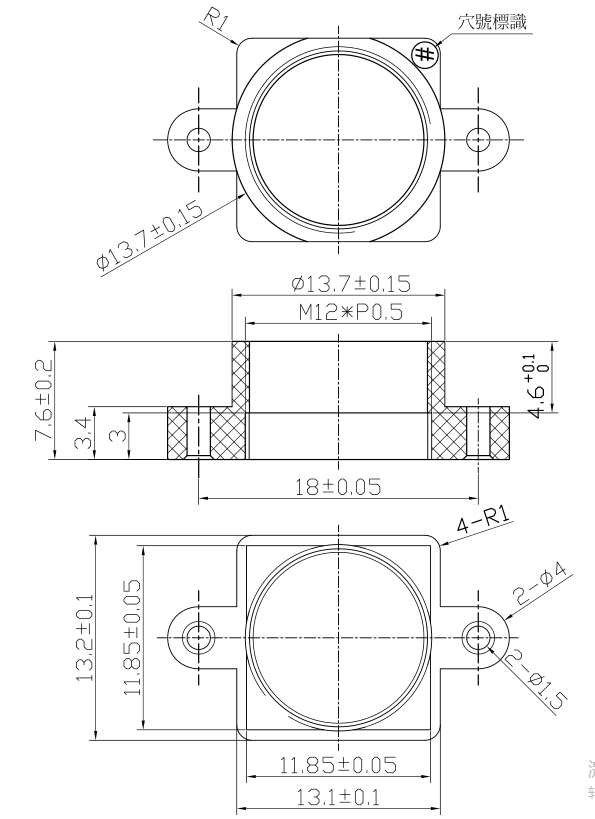

11, mount type: M12*P0.5
12, Lens construction: 6G+IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, Waterproof Grade: IP67

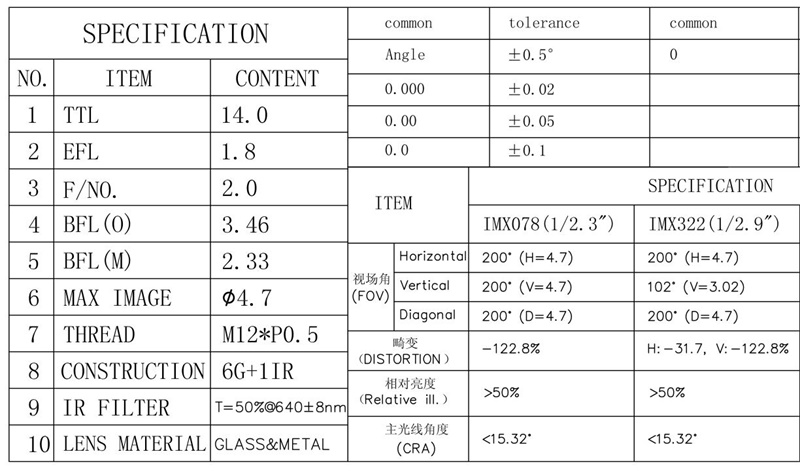

Technical Datasheet of 1.8mm Fisheye Lens
Product Application
1, Lens for Fish eye Camera
2, Lens for panoramic camera lens
3, Lens for Projector
4, Lens for sport action Camera gopro
5, Lens for Drone Camera DJI
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed, thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
