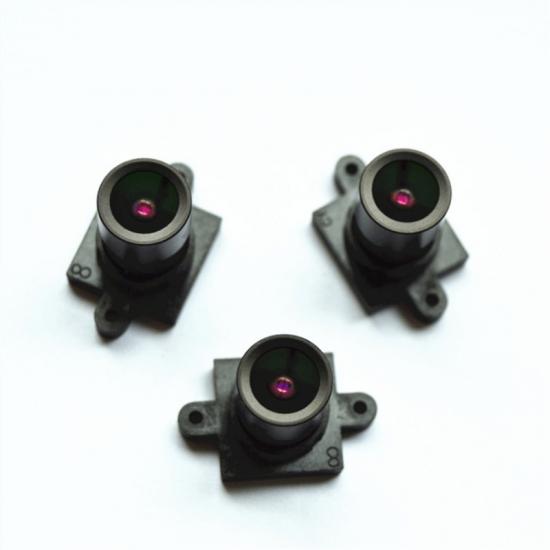

Product Name: waterproof IP68 3.65mm m9 automotive front view camera lens
Product Advantage
1, 3.65mm Car Camera Lens m9 1080P
2, 115 degree Car Front View Lens
3, Used in Board Camera, MTV Lens, Cmos Board Module etc
4, Widely used in multiple field ( see as following)
Production Specification
keying technical feature of 3.2mm M9 FULL HD Lens
1，TTL: 15.91mm
2, EFFECT Focal length: 3.65mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length: 5.48mm
5, Mechnical Back Focal Length: 2.80mm
6, Max image circle: 8.2

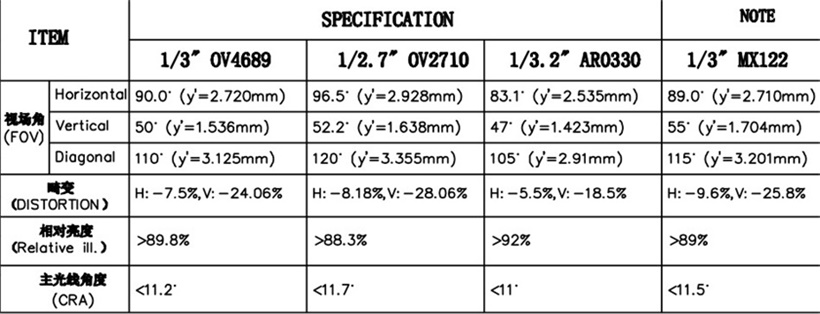

7, FOV (D/H/V): 115/89/55 (1/2.9 imx322)
8, Optical Distortion: H:-9.6%, V:-25.8%
9, Relative illumination: >89%
10, CRA: 11.5 degree

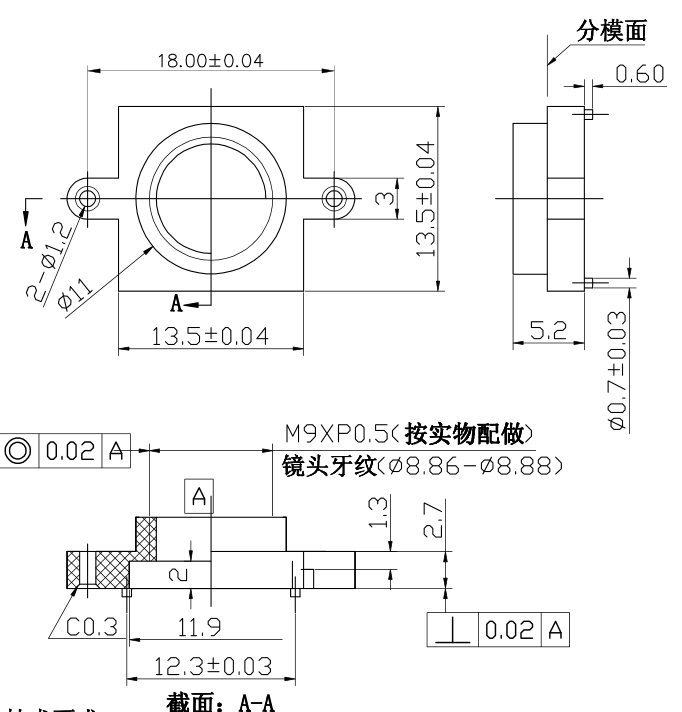

11, mount type: M9*P0.5
12, Lens construction: 6G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, waterproof grade: IP67

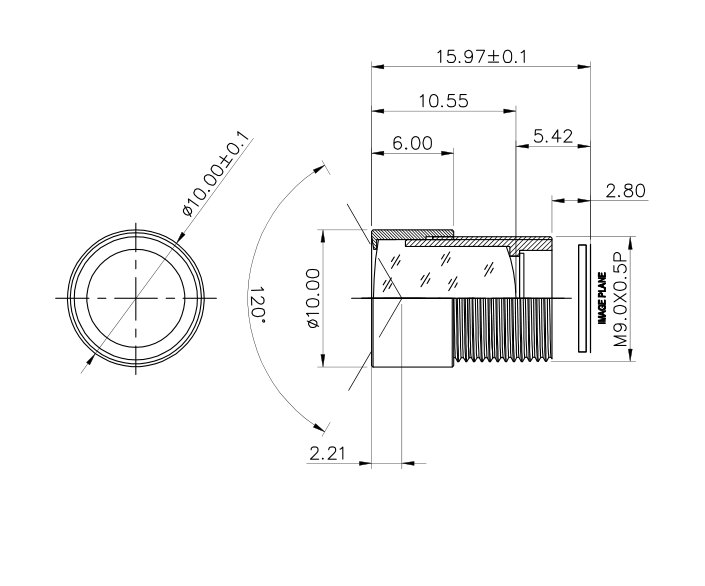

Technical datasheet of Car Front view lens
Product Application
Lens for Car front view camera
Lens for FPV DJI drone camera
Lens for mini camera recorder
Lens for Smart Home doorbell phone camera
Lens for mini wifi cctv Camera
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
