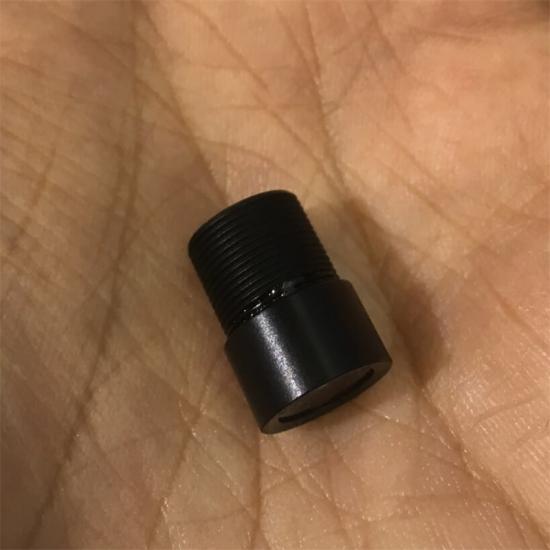

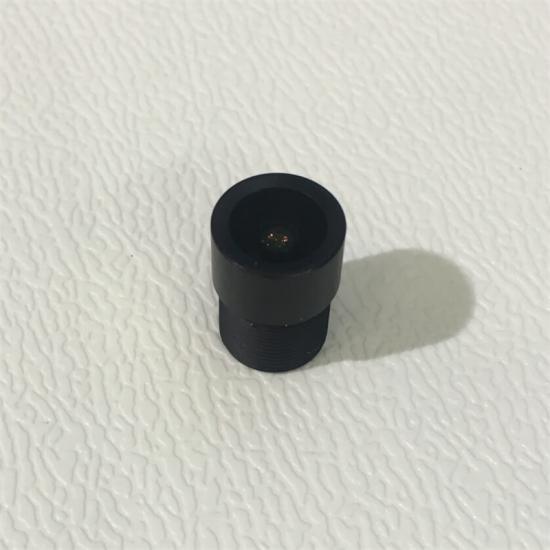

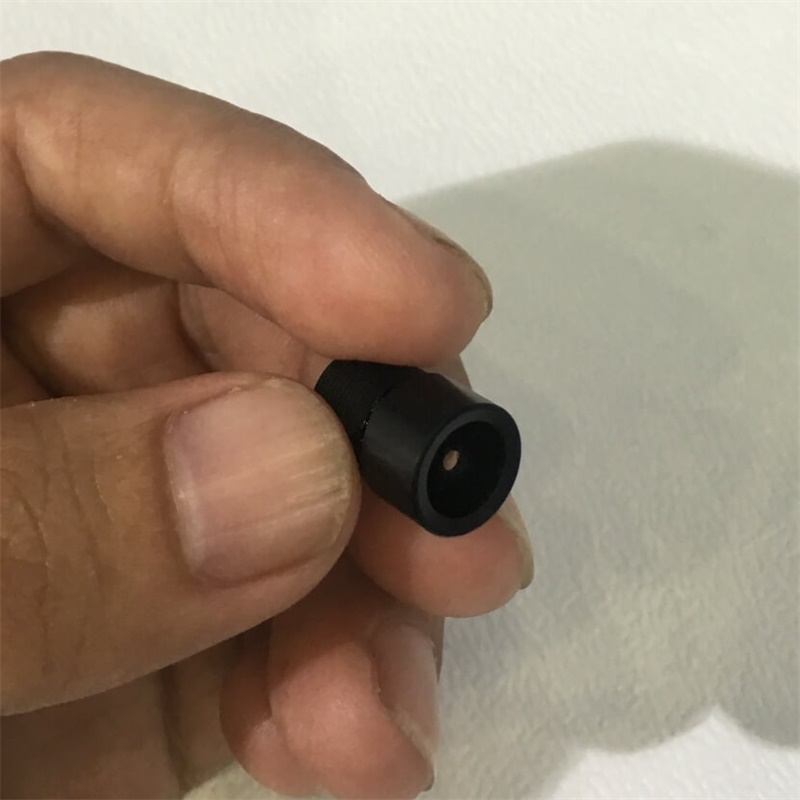

Product Name: 1/2.7'' 3.2mm F2.0 aperture m9 wide angle car backup camera lens
Product Advantage
1, 133 degree Automotive Lens M9
2, IP67 Waterproof+ Low Temperature Car Camera Lens
3, 6G Car DVR Camera Lens, OV10635 Camera Module Lens
4, Used in Board Camera, MTV Lens, Cmos Board Module etc
Product Specification
keying technical feature of 3.2mm m9 Car Camera Lens

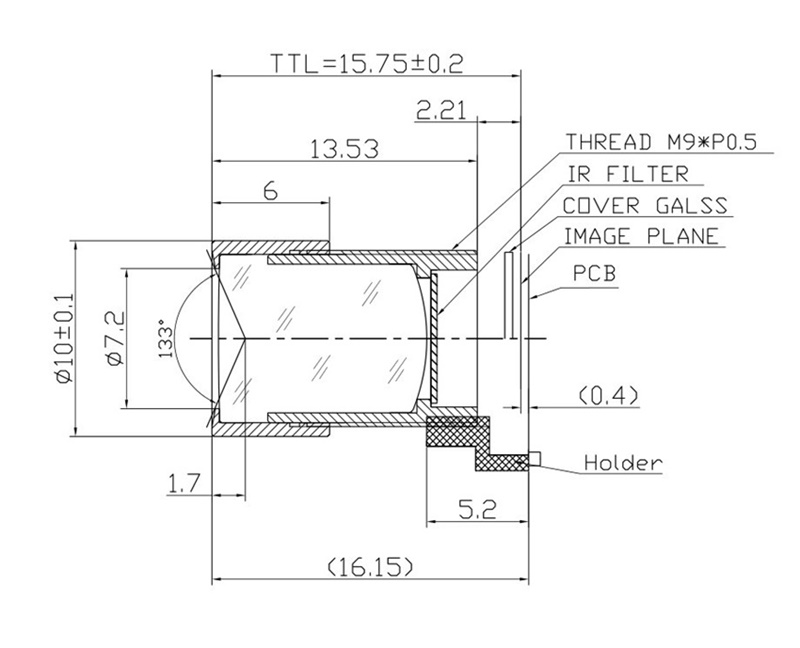

1，TTL: 15.75mm
2, EFFECT Focal length: 3.2mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length: 4.79mm
5, Mechnical Back Focal Length: 2.21mm
6, Max image circle: 6.5
7, FOV (D/H/V): 133/106/62 degree
(OV10635 Cmos Sensor)
8, Optical Distortion: H:-12.48%, V:-36.5%
9, Relative illumination: >81.5%
10, CRA: <11.4 degree

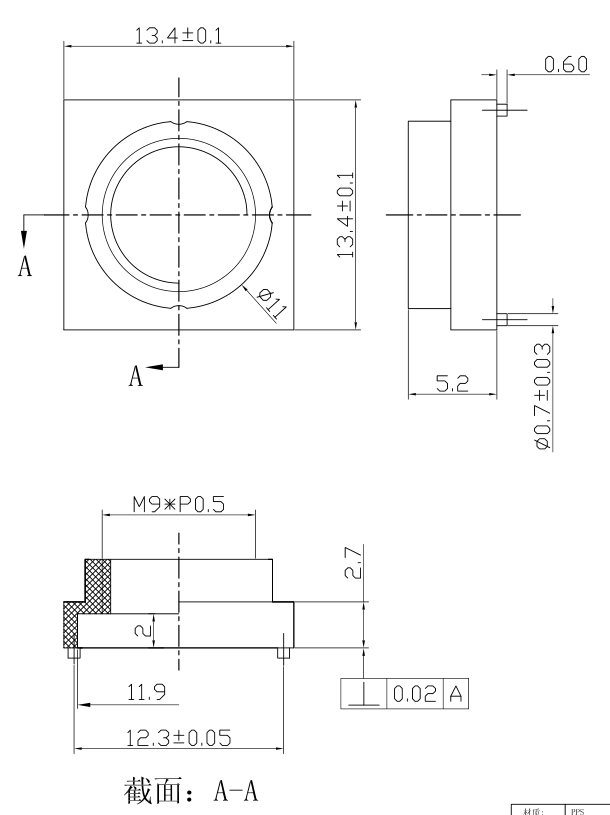

11, mount type: M9*P0.5
12, Lens construction: 6G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, waterproof grade: IP67

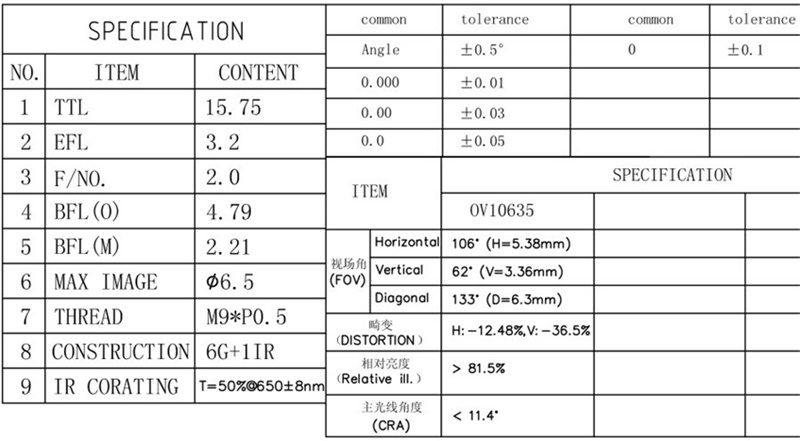

Technical datasheet of 3.2mm M9 Car DVR Lens
Product Application
1, Lens for dual lens car DVR Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed, thank you very much
