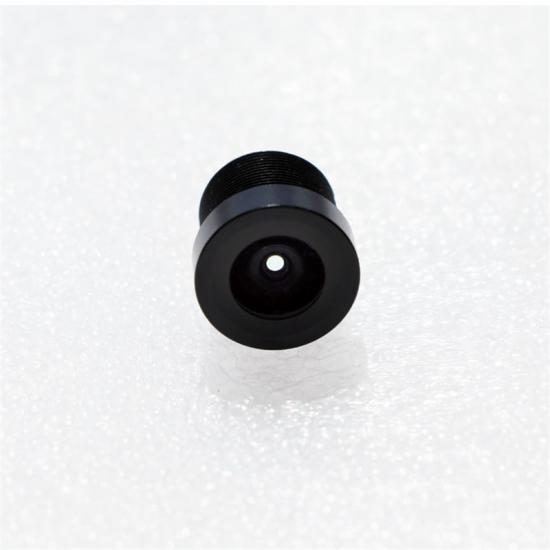

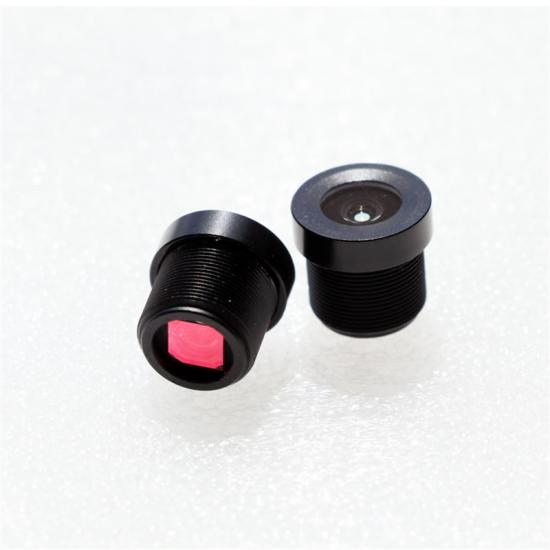

Product Name: 3.2mm 5G 5MP m12 lens F2.2 Car Rearview Camera lens
Product Advantage
1,Widely used as Automotive Industry Lenese, Car Rearview Cameras Lens etc
2,IP67 waterproof good used for Backup Camera Lens, Rearview Camera Lens
3,3.2mm Fixed Focus bring 133 degree Wide Angle
4,CE and RoHS Approval, ODM or Custom made Lenses available

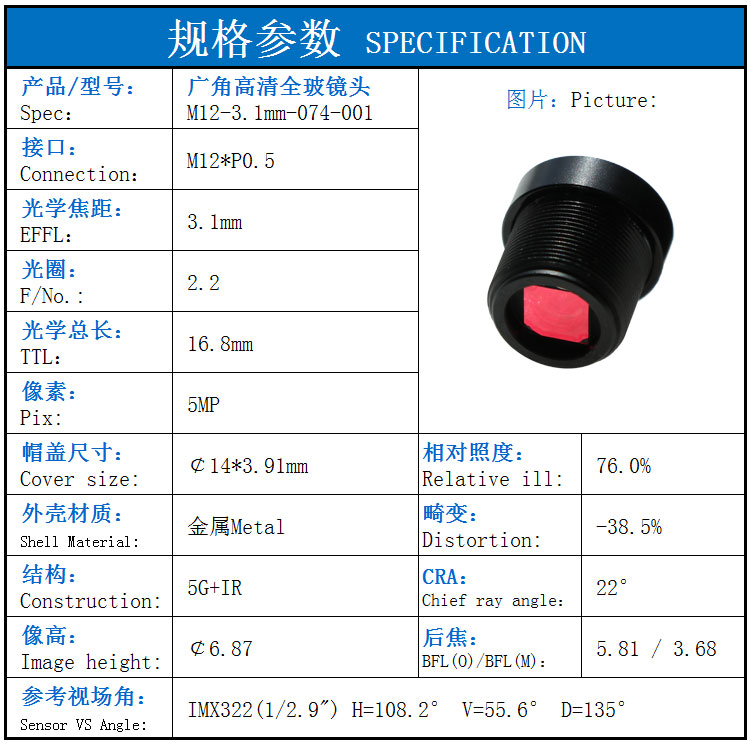

Product Specification
keying technical feature of 3.2mm m12 Car Dash Camera Lens
1，TTL：16.81mm
2, EFFECT Focal length：3.2mm
3, Aperture F/No: 2.2
4, Optical Back Focal Length：5.81mm
5, Mechnical Back Focal Length：3.68mm
6, Max image circle：6.75
7, FOV (D/H/V)：133.3/107/55.5 degree (1/2.92 PS1210K)
8, Optical Distortion：H:-12.9%, V:-32.6%
9, Relative illumination：>79%
10, CRA：<23.36 degree

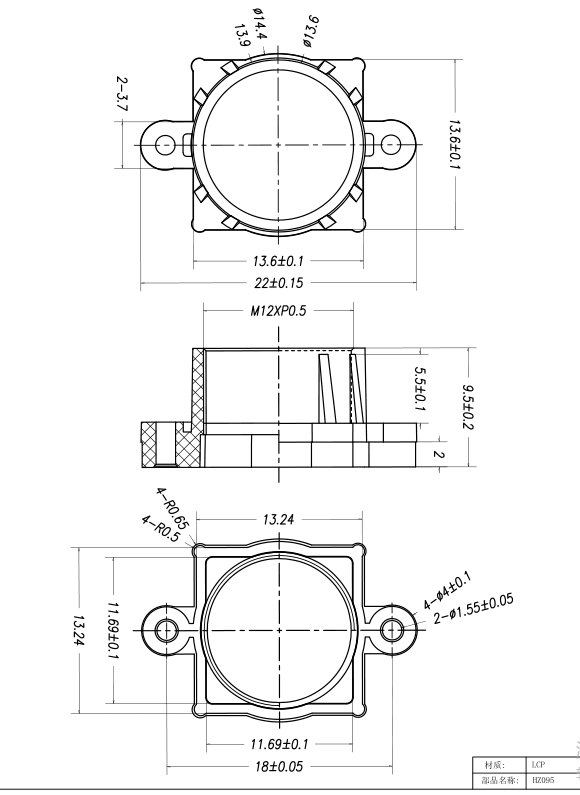

11, mount type：M12*P0.5
12, Lens construction：5G+1IR
13, IR Coating：T=50%@650+/-8nm
14, working temperature：-40 to +80 degree
15, storage temperature：-40 to +90 degree
16, ultraviolet-proof standard：500w@72H
17, waterproof grade：IP67

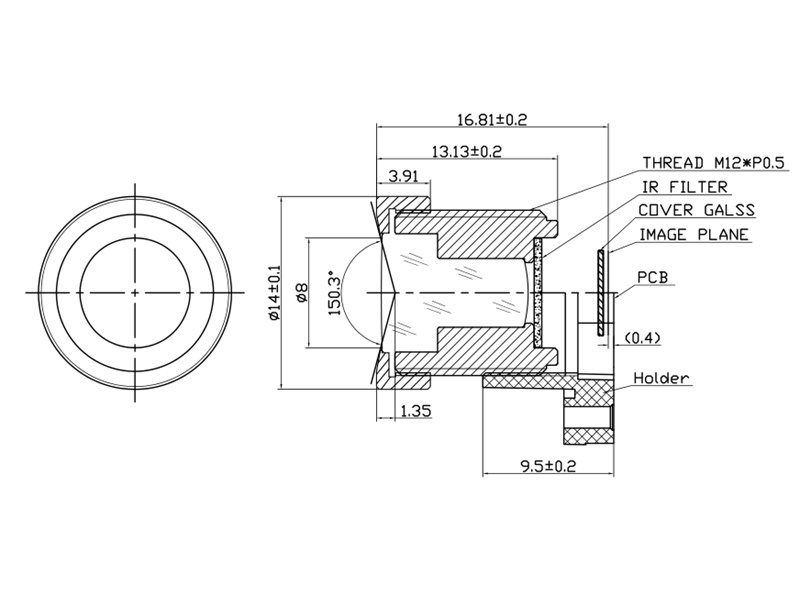

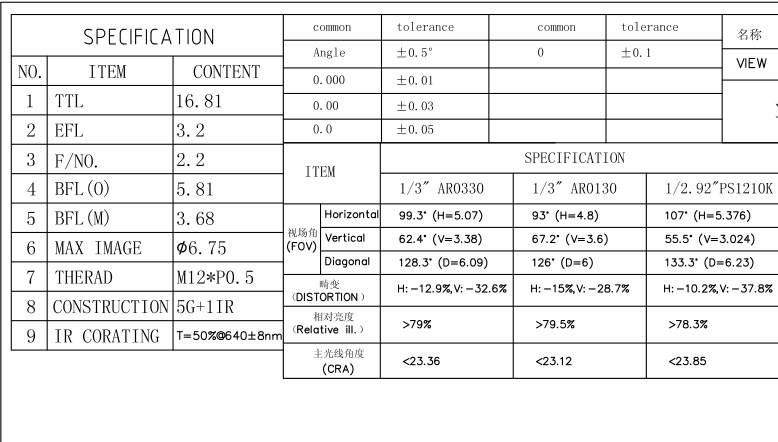

Keying technical Datasheet of 3.2mm M12 Wide Angle Lens
Product Application
Lens for Car dash DVR camera
Lens for Car Rearview Camera
Lens for Car Black Box
Lens for Car DVR Camera
Lens for Automobile Camera
About us
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.. Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc. of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
