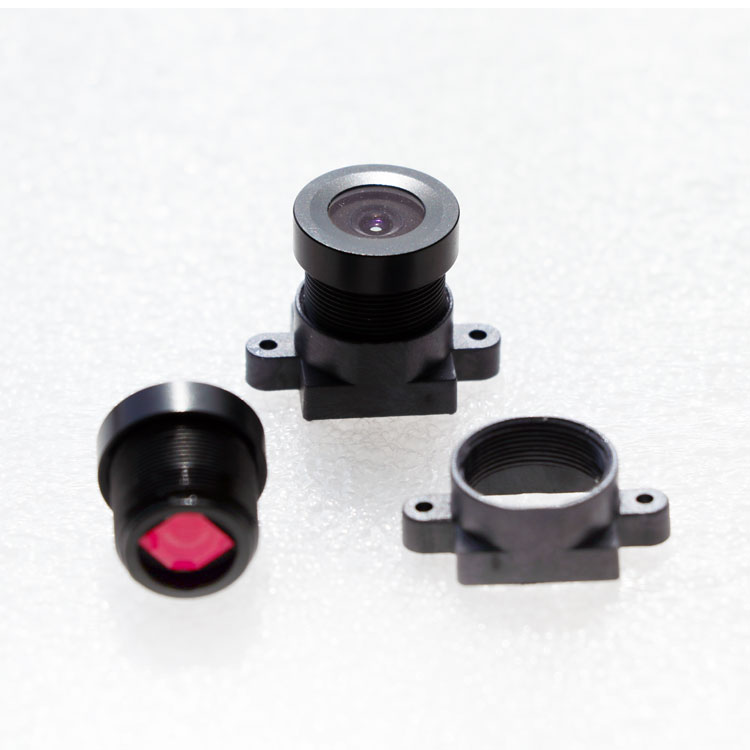

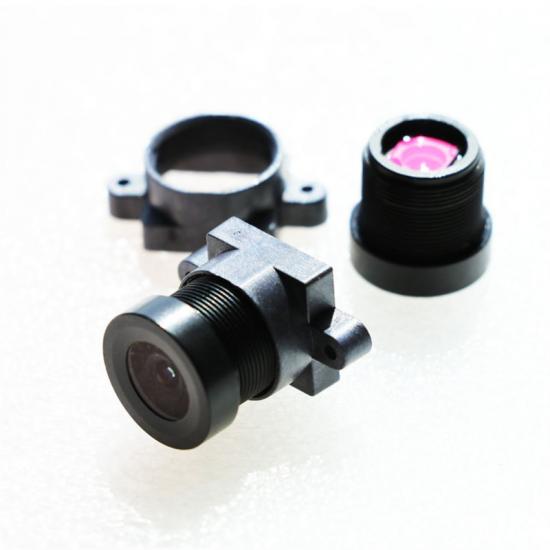

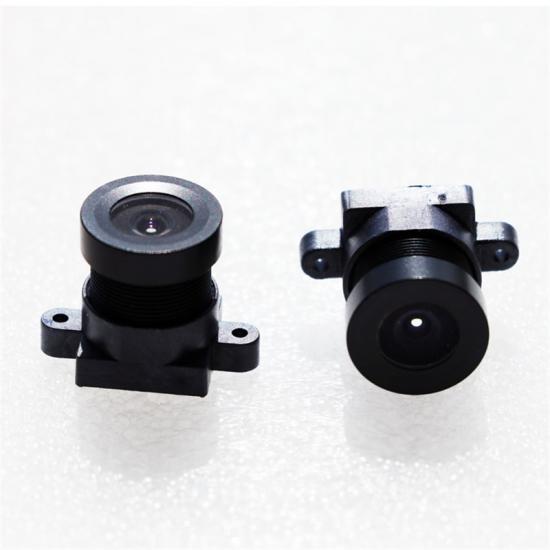

Product Name: 3.0mm wide angle m12 lens 5G 5MP resolution DFOV 143 degree for cctv camera
Product Advantage
1, 143 degree CCTV Wide Angle Lens
2, Shorter TTL and Compact structure
3, Japan imported Glasses lensese bring top quality optical image
Product specification

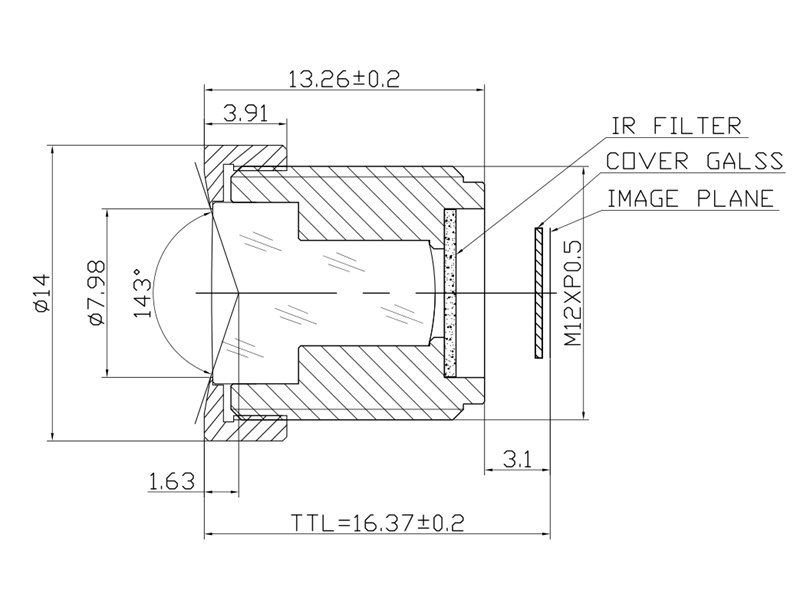

keying technical feature of 3mm fixed focal length 5 Megapixel CCTV Lens
1，TTL：16.37mm
2, EFFECT Focal length：3.0mm
3, Aperture F/No: 2.4
4, Optical Back Focal Length：5.44mm
5, Mechnical Back Focal Length：3.10mm
6, Max image circle：6.23
7, FOV (D/H/V)：143/101/71 degree (1/3 PC1099K)
8, Optical Distortion：H:-17.3%, V:-34.7%
9, Relative illumination：>80.3%
10, CRA：<20.2%
11, mount type：M12*P0.5
12, Lens construction：5G+1IR
13, IR Coating：T=50%@640+/-8nm
14, working temperature：-40 to +80 degree
15, storage temperature：-40 to +90 degree
16, ultraviolet-proof standard：500w@72H
17, MTF Resolution: 5 Megapixel Lens

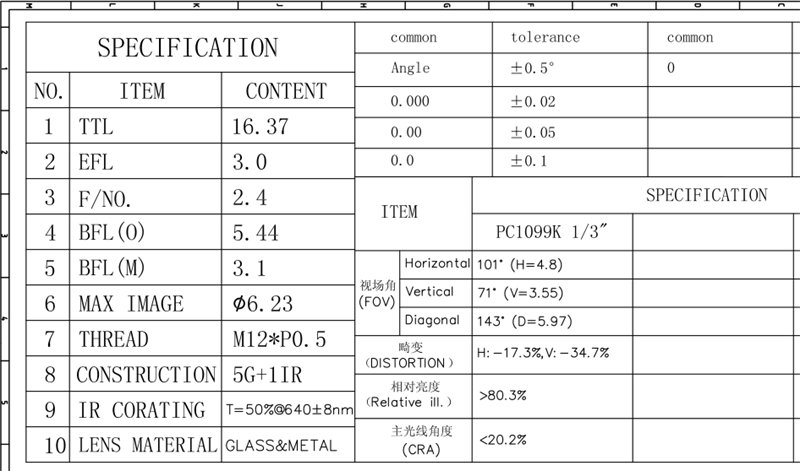

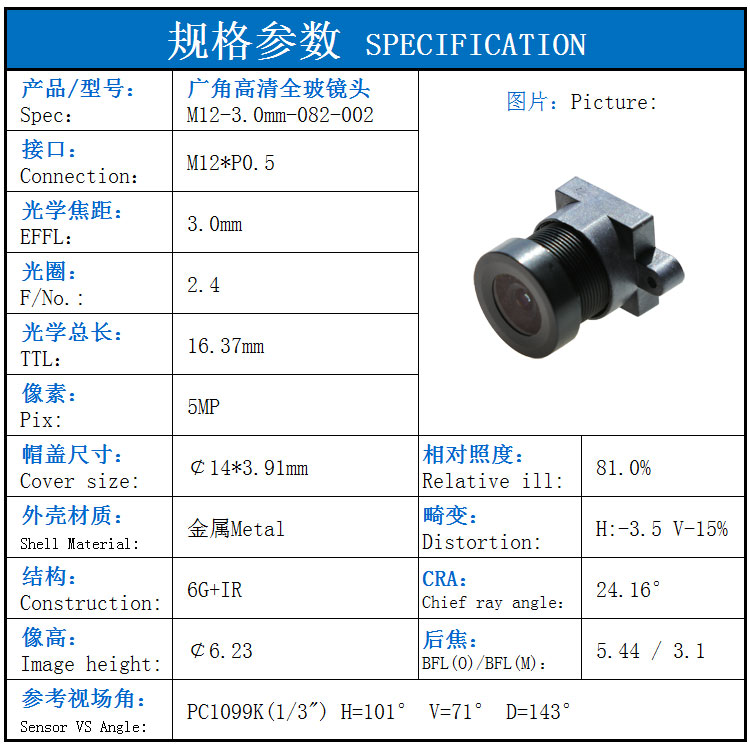

Keying technical datasheet of 3mm M12 CMOS Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera Lens, Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
