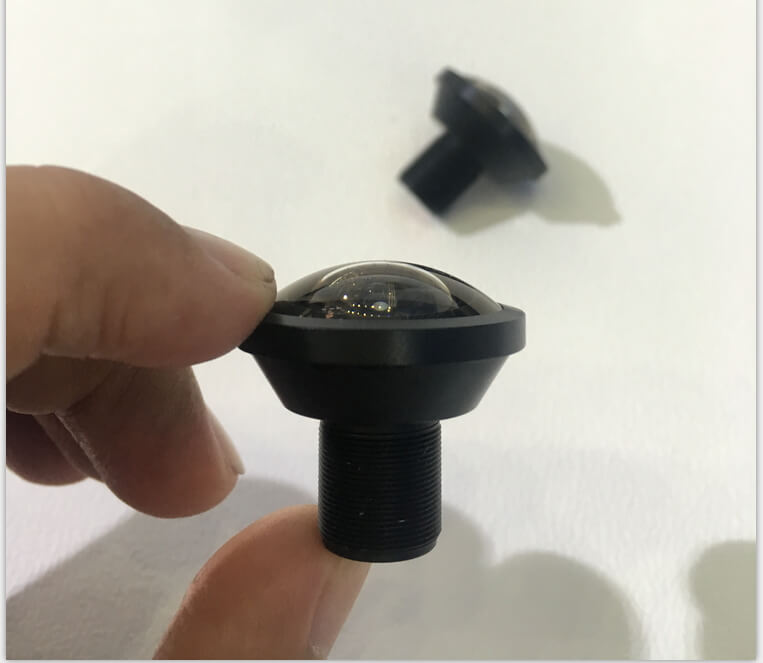

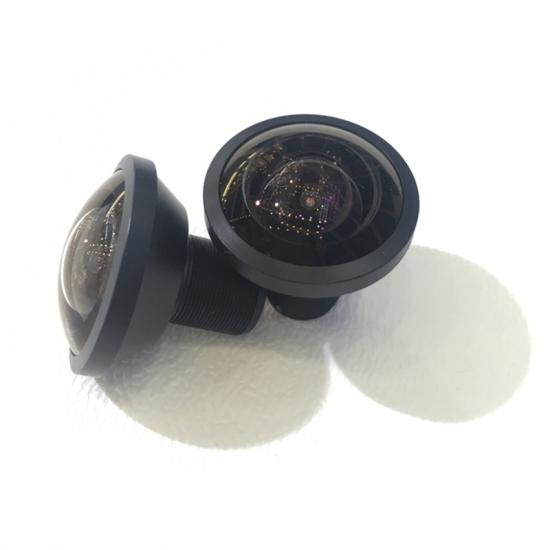

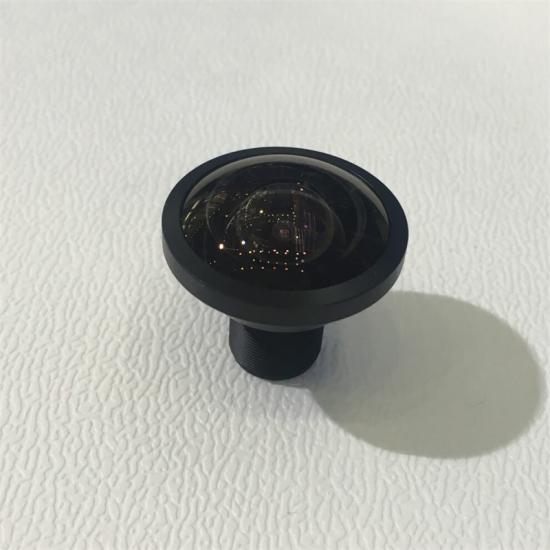

product name: OV2710 2.33mm S mount 7G 180 degree ultra fisheye lenses
Product Advantage
1, Fisheye 180 degree Ultra Wide Angle Lenses
2, Japanese Glass elements bring top quality optical performance
3, CE and RoHS Approval, ODM or Custom made Lenses available
4, 180 Fisheye Lens used for Panoramic Camera, Driving recorder lens
product Specification

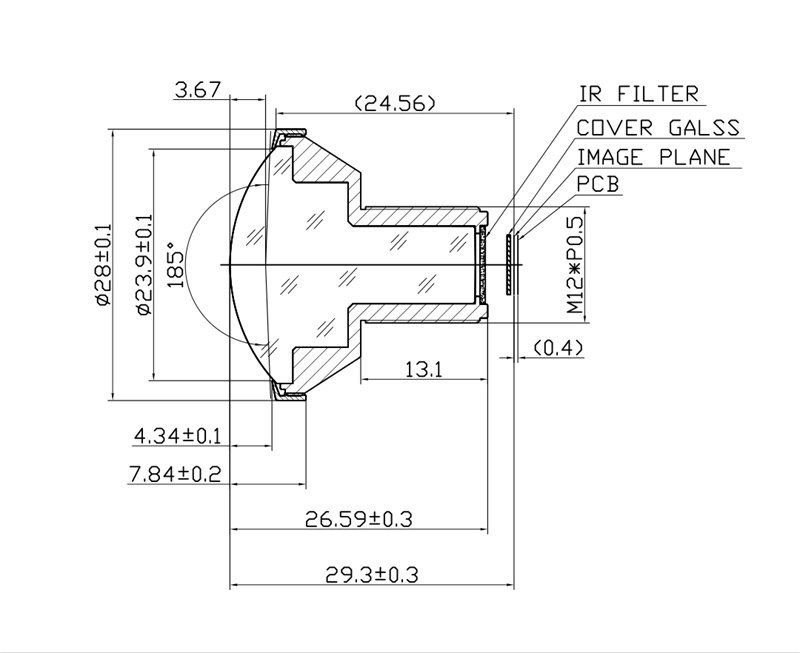

keying technical feature of 2.33mm Driving Recorder Lens
1，TTL: 29.3mm
2, EFFECT Focal length: 2.33mm
3, Aperture F/No: 2.0
4, Optical Back Focal Length: 3.99mm
5, Mechnical Back Focal Length: 2.71mm
6, Max image circle: 6.77
7, FOV (D/H/V):180 degree/149.6 degree/80.9 degree
(1/2.7 OV2710) fisheye
8, Optical Distortion: H:-18.3%, V:-66.5%
9, Relative illumination >99%
10, CRA: <16.85 degree

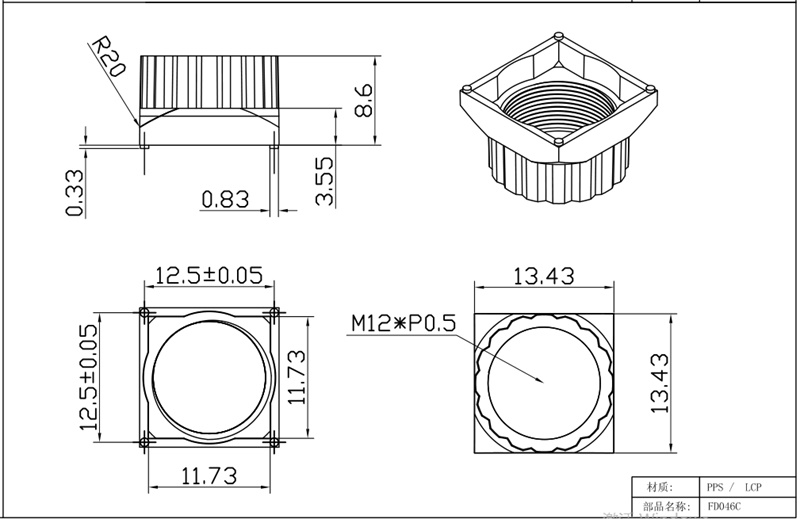

11, mount type: M12*P0.5
12, Lens construction: 7G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature； -40 to +90 degree
16, ultraviolet-proof standard：500w@72H

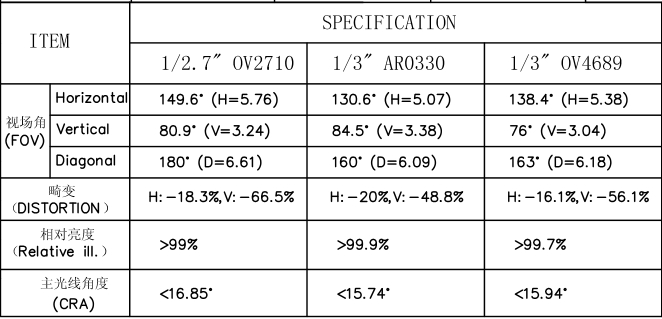

Keying technical datasheet of 2.33mm Ultra Wide Angle Lens
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
