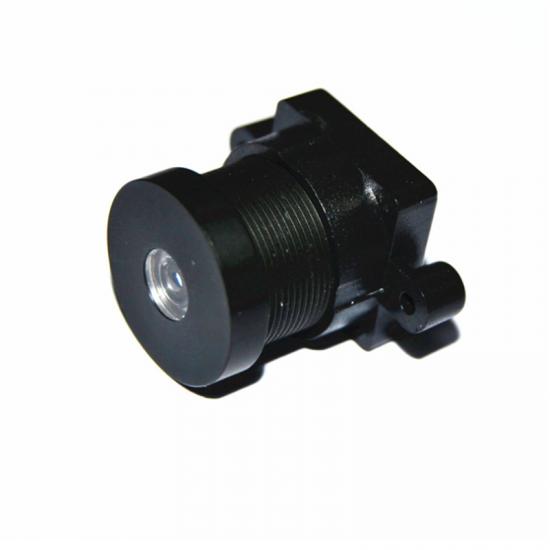

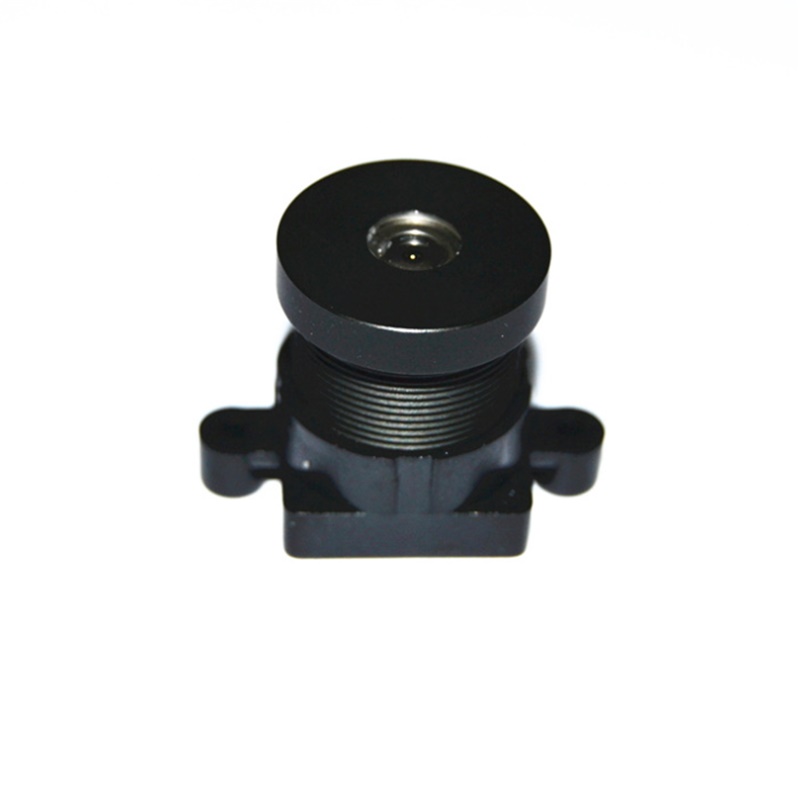

Product name: 1/4'' 2.99mm Vehicle Lens and in-car monitoring camera lens
Product Advantage
1,67.5 degree Wide Angle good for Car Side View Camera Lens
2,meanwhile used as In Car Camera Lens, Car ADAS Camera
3, Widely used in Car front camera Lens, Vehicle Lens
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification
keying technical feature of 2.99mm in car camera Lens

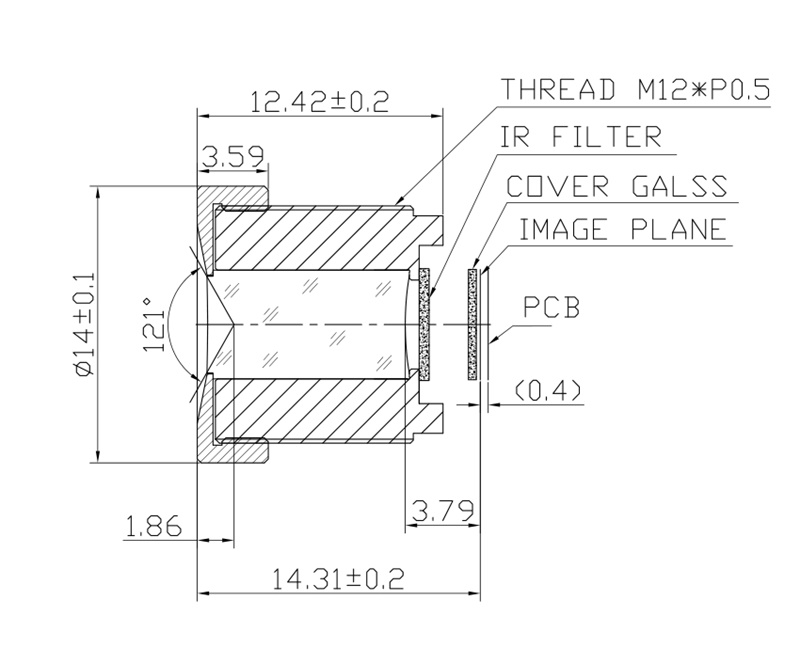

1，TTL: 14.31mm short TTL
2, EFFECT Focal length: 2.99mm
3, Aperture F/No: 2.8
4, Optical Back Focal Length: 3.79mm
5, Mechnical Back Focal Length: 1.89mm
6, Max image circle: 6.0
7, FOV (D/H/V):121/94/67.5 degree
1/3.2 OV5653 sensor
8, Optical Distortion: H:-14.4%, V:-28.3%
9, Relative illumination: >78%
10, CRA: <22.3 degree

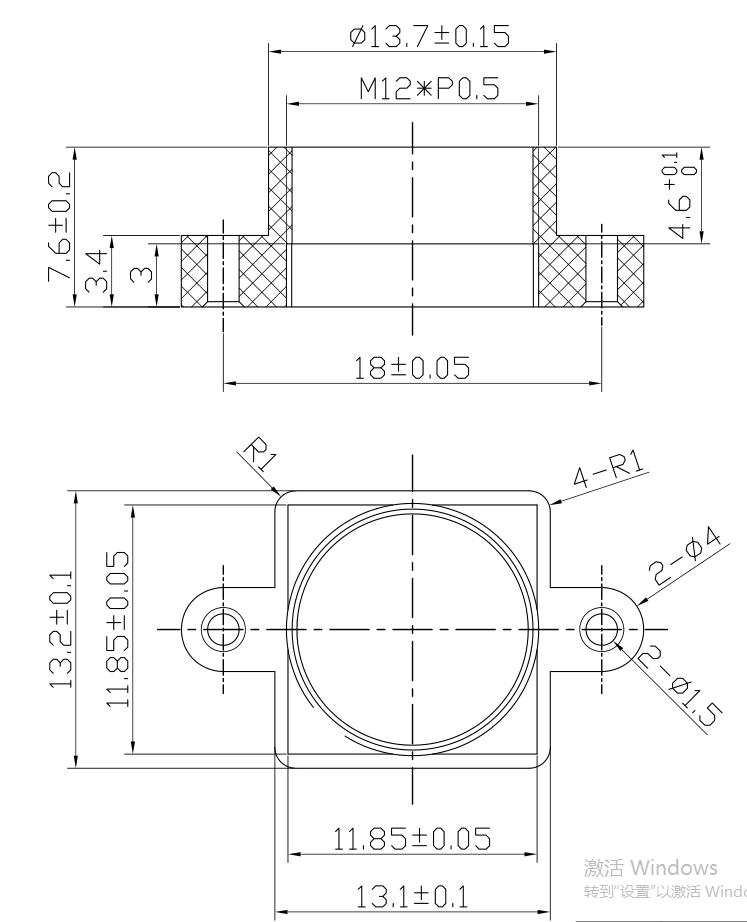

11, mount type: M12*P0.5
12, Lens construction: 2P2G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, waterproof grade: IP67

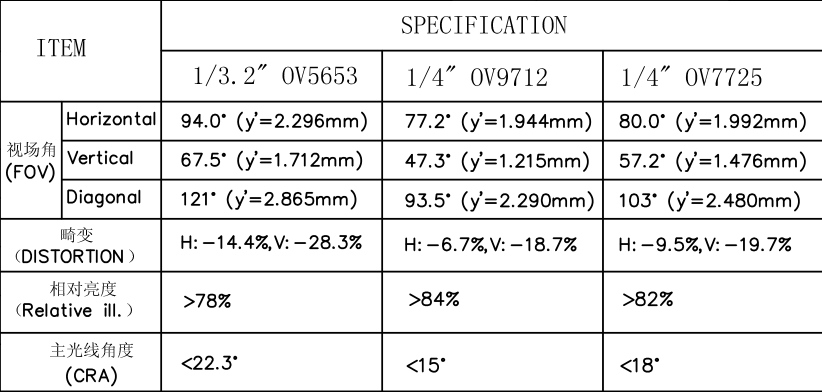

Keying technical datasheet of 2.99mm Vehicle Lens for Car Side Camera
Product Application
Lens for Car side view camera
Lens for in-car monitoring DMS camera ( inside view)
lens for school bus and truck camera
Lens for Smart Home camera
Lens for cctv security IP camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers
that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，
backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
