Product Name: 1/4'' Sensor 3.65mm m12 6G car side view camera Cabin lens
Product Advantage
1, 1/4 OV5648 Camera Module Lens
2, Standard 3.65mm focal length used for Car Cabin Camera Lens
3, Used in Board Camera, MTV Lens, Cmos Board Module etc
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product Specification
keying technical feature of 3.65mm m12 Car camera Lens

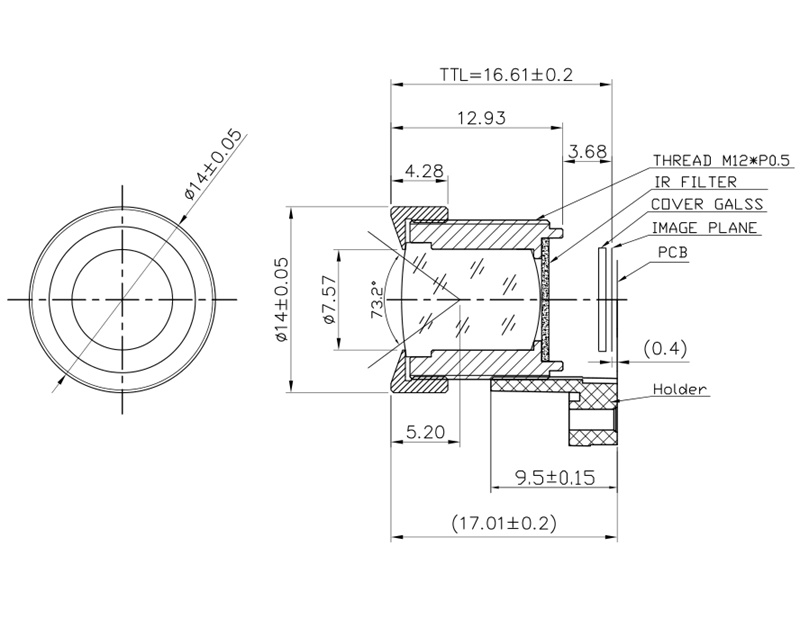

1，TTL: 16.61mm
2, EFFECT Focal length: 3.65mm
3, Aperture F/No: 1.8
4, Optical Back Focal Length: 5.39mm
5, Mechnical Back Focal Length: 3.68mm
6, Max image circle: 8.2

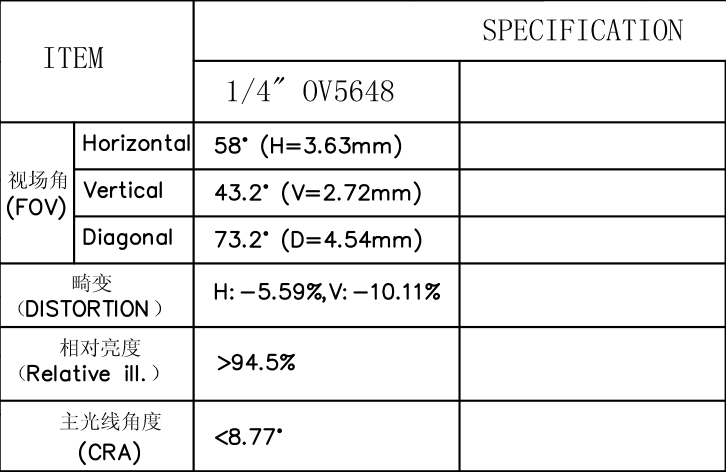

7, FOV (D/H/V): 73.2/58/43.2
(1/4 OV5648 Cmos Sensor)
8, Optical Distortion: H:-5.59%, V:-10.11%
9, Relative illumination: >94.5%
10, CRA: <8.77 degree

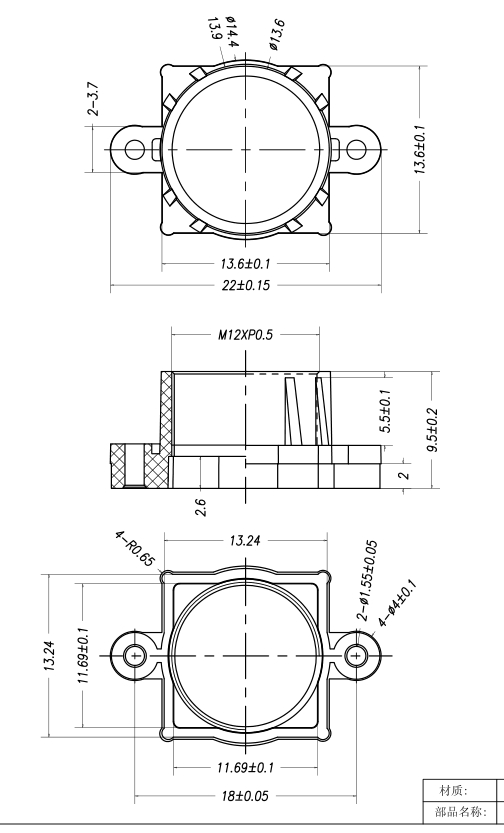

11, mount type: M12*P0.5
12, Lens construction: 6G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
Keying technical datasheet of 3.65mm High Temperature Lens
Product Application
Lens for car side view camera
Lens for automotive DMS in-car camera cabin
Lens for smart home camera
Lens for Camera Lens Cabin
Lens for Car Adas Camera
Custom Camera Lenses
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly,
can communicate all problems freely and fastly
