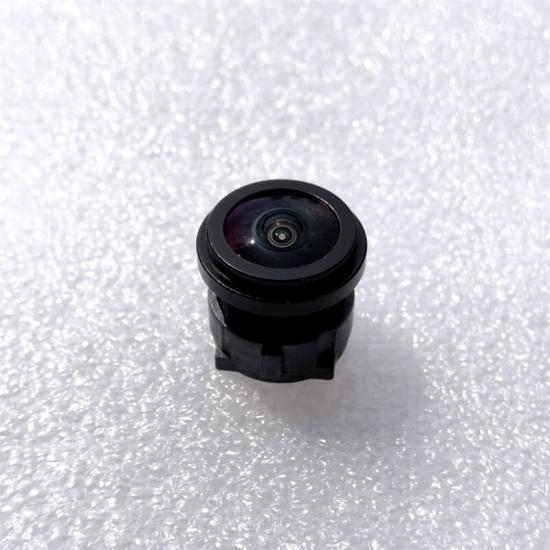

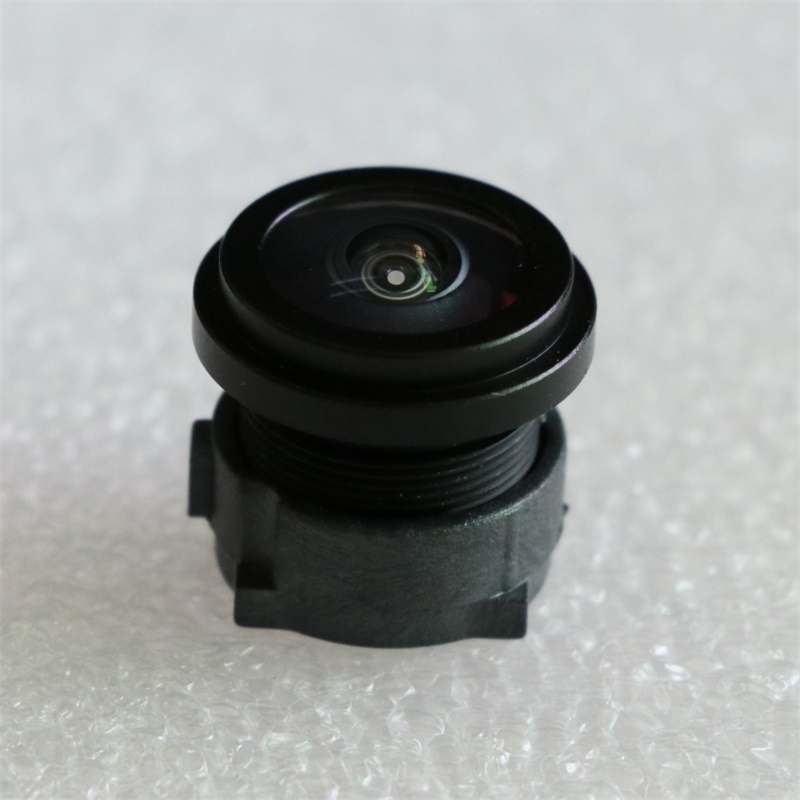

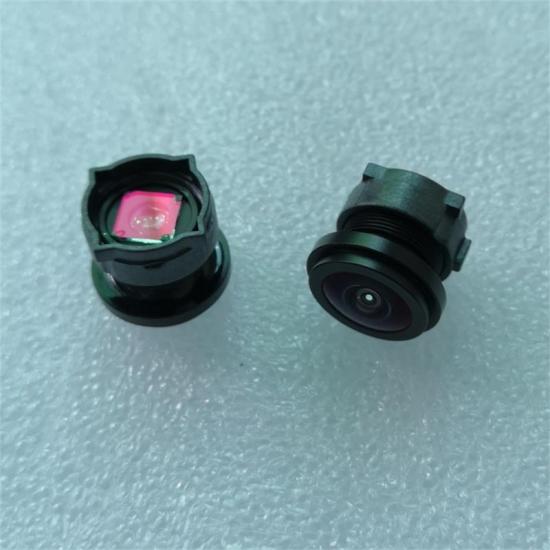

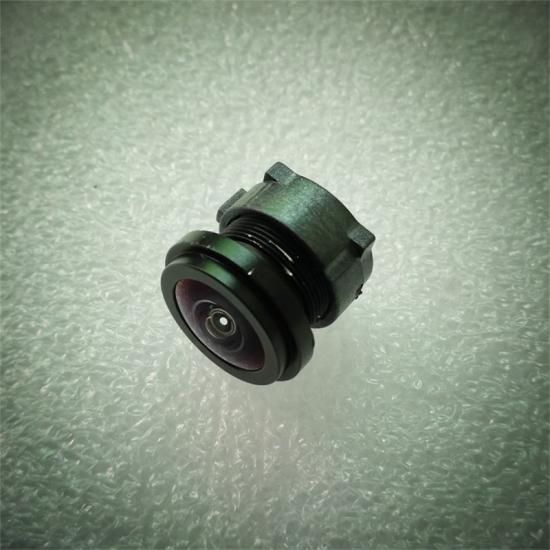

Product Name: 1/4'' 1.3mm backup car camera around view Lens Fisheye 200 degree IP67 waterproof night vision Lens
Product Advantage
1, 200 degree Lens creat Car 360 Surround View
2, Hortizontal 173 degree ideal for truck camera lens, backup camera lens and Fisheye Projector
3, IP67 waterproof widely used in any automotive industry lenses
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification

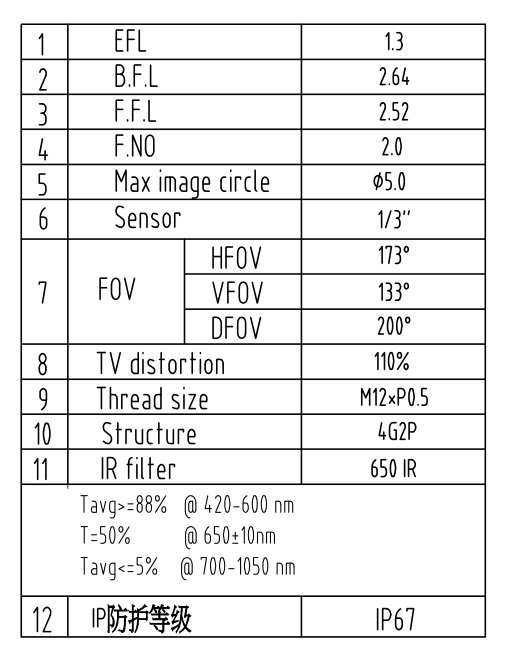

Technical specification of 1.3mm 360 Surround View Lens
1,Effect Focal Length: 1.30mm
2,Back Focal Length: 2.64mm
3,Flange.Focal.Length; 2.52mm
4,Aperture F/NO: 2.0
5,Matching Sensor: 1/3"
Max image circle: 5.0
6,HFOV: 173°
VFOV: 133°
DFOV: 200°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 4G2P
10,IR filter: 650IR
11,Waterproof Grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
11,TTL: 14.6mm

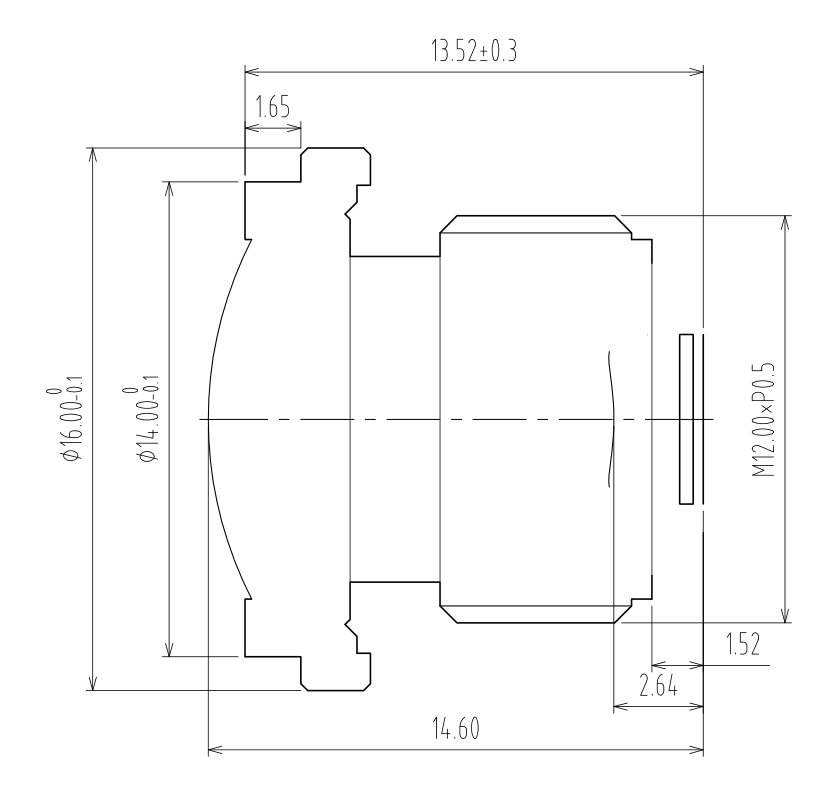

Technical Datasheet of Car Backup Camera Lens
Product Application
Lens for car reverse camera
Lens for sport action camera
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Custom Made Fisheye Lenses, Custom Fisheye Lens Design
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
