Product Name: 150 degree 1/2.7'' 2.9mm automotive car rear view camera wide angle M7 lens Waterproof
Product Advantage
1, Horizontal 122 degree Wide Angle Lens M7 apply for Car Rearview Camera Lens
2, waterproof IP67 also apply for Truck Camera Lens
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, barrel made of aluminum alloy raw material, surface oxidized, All black Design
Product Specification

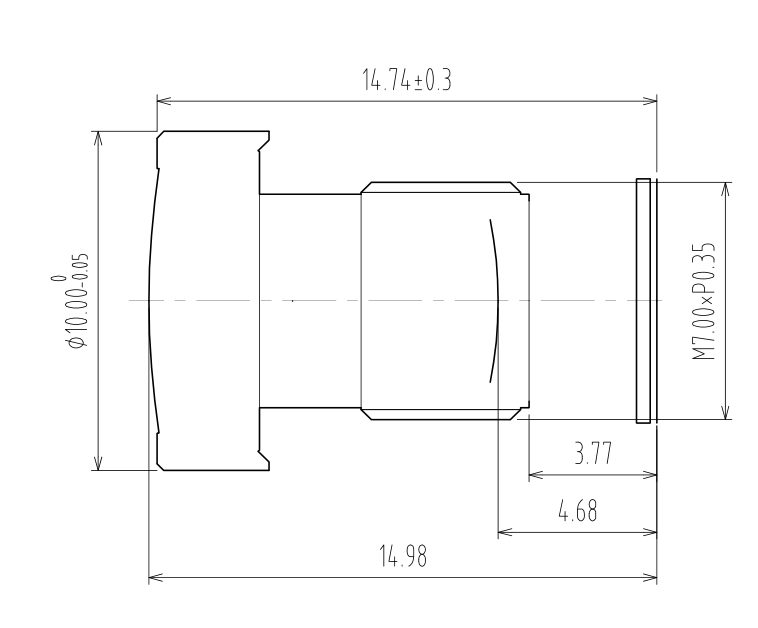

Technical Feature of 2.9mm car rearview Camera Lens
1,Effect Focal Length: 2.9mm
2,Back Focal Length: 4.68mm
3,Flange.Focal.Length: 3.77mm
4,Aperture F/NO: 2.4
5,Matching Sensor: 1/2.7"
6,HFOV: 122°
V FOV: 64°
D FOV: 150°
7,TV distortion: 22%
8,Thread size: M7xP0.35
9,Lens Structure: 4G full glass
10,IR filter: 650IR
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

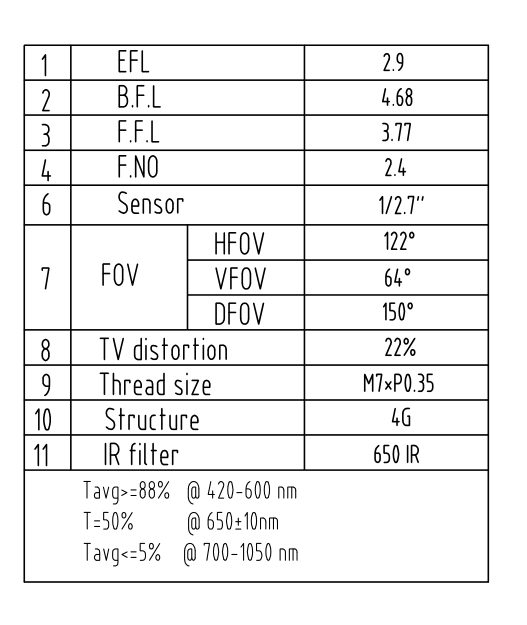

Technical datasheet of 2.9mm waterproof wide angle Lens Automotive
Product Application
Lens for Car rear view camera RVC
Lens for FPV DJI drone camera
Lens for mini cctv & security camera
Lens for Smart Home doorbell camera
Lens for customized camera with m7 compact design
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens, M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly,
can communicate all problems freely and fastly
