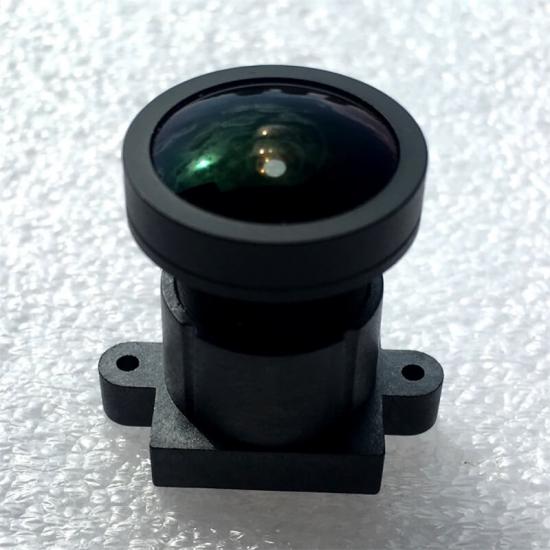

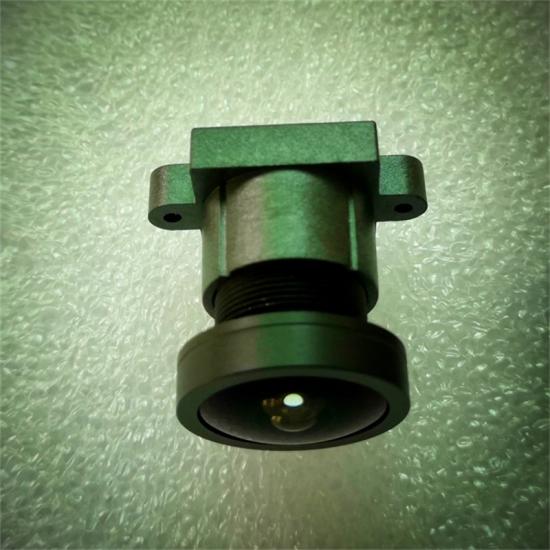

Product Name: 4K 16mp m12 2.9mm 7G 1/2.3'' wide angle lens HFOV 120 for car DVR dash camera and DJI drone FPV
product advantage
1, Horizontal 120 degree 16MP Wide Angle Lens
2, support big formats 1/2.3'' sony cmos for Car DVR and DJI Drone Camera
3, barrel made of aluminum alloy raw material, surface oxidized, All black Design
4, Produced by Fully Automated Lens Assembly Machines
Product Specification
Technical specification of 2.9mm 4K Camera Lens
1,Effect Focal Length: 2.90mm
2,Back Focal Length: 6.14mm
3,Flange.Focal.Length: 5.25mm
4,Aperture F/NO: 2.4
5,Matching Sensor: 1/2.3"
6,HFOV: 120°
V FOV: 90°
D FOV:152°
7,TV distortion: 15%
8,Thread size: M12xP0.5
9,Lens Structure: 7G full glass
10,IR filter: 650IR
T avg>=88% Q420-600nm
T=50% ①650±10mm
T avg<=5% Q700-1050nm
11.TTL: 21.15mm

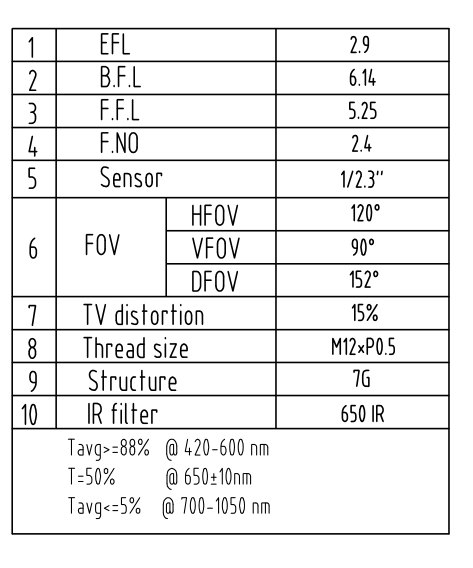

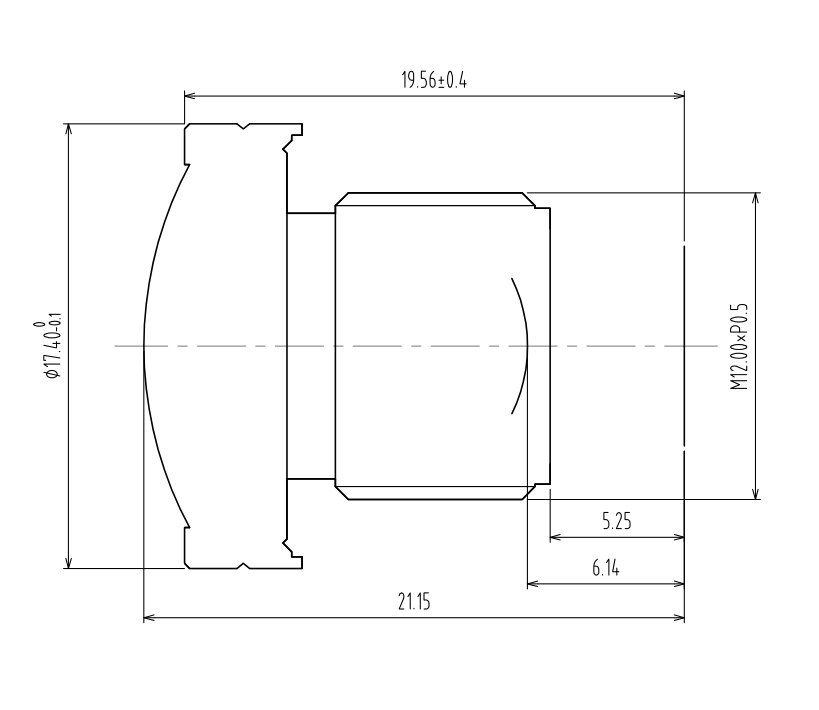

technical datasheet of 2.9mm Car DVR Lens
2.9mm M12 Lens Application
Lens for Car dash DVR camera
Lens for 4K FPV DJI drone camera
Lens for 4K sport action camera
Lens for Smart Home camera
Lens for Video Conference Camera
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
