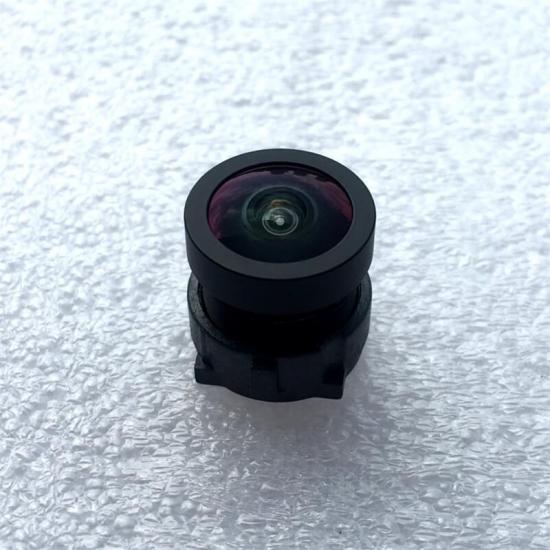

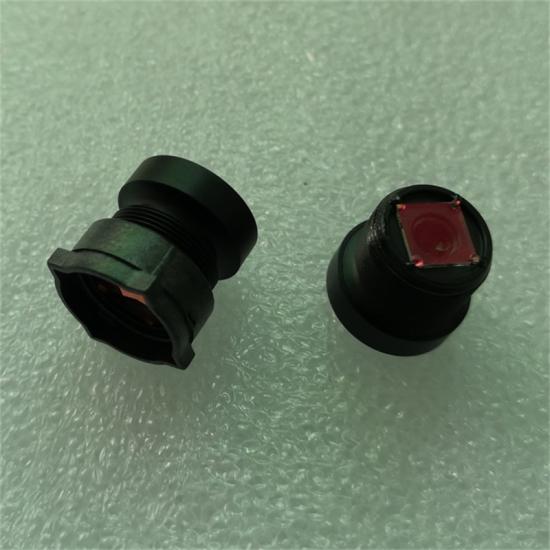

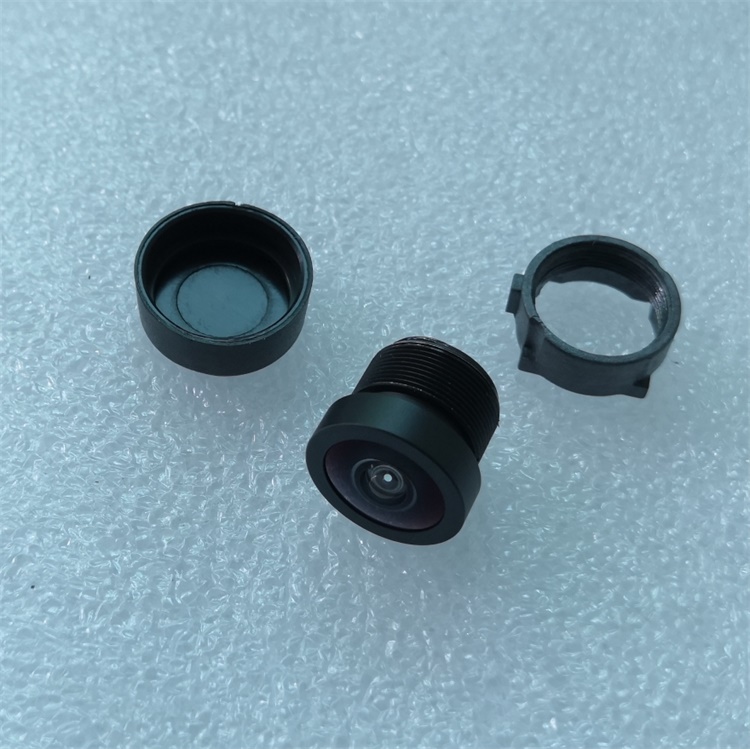

Product Name: 1/4'' 1.3mm m12 180 wide angle automotive ADAS Lens for trailer IP67
Product Advantage
1, 180 degree Ultra Wide Angle Automotive Camera Fisheye Lens
2, Lens meet the standard of Car ADAS Camera, Car Front View Lens
3, 1/4 hortizontal 156 degree ideal for Truck Camera Lens
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification

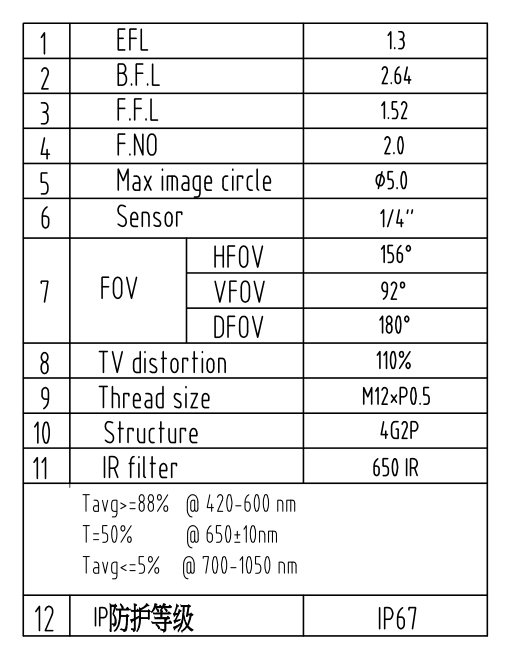

Technical Datasheet of 1.3mm M12 Car ADAS Lens
1，EFL: 1.30mm
2，B.F.L: 2.64mm
3，F.F.L: 1.52mm
4，F.N0: 2.0
5，Sensor: 1/4",
6，HFOV: 156°
VFOV: 92°
DFOV: 180°
7，TV distortion: 110% ,
8，Thread size: M12xP0.5
9，Lens Structure: 4G2P,
10，IR filter: 650IR
11，Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
11. TTL: 14.6mm

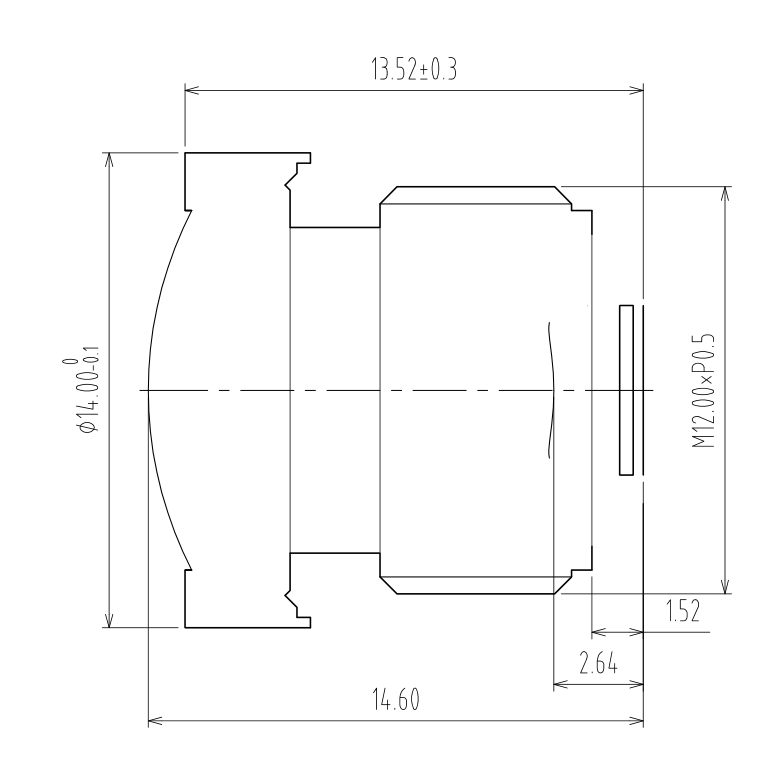

technical datasheet of 1.3mm waterproof Camera Fisheye Lens
1.3mm M12 Lens Application
Car Front View Lens
Lens for Car rearview backup camera
Lens for Car dash DVR camera
Lens for FPV DJI drone camera
Lens for sport action camera
Lens for Smart Home video doorphone camera
Lens for IP network Camera wide angle
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,
E-mirror lens，backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
