Product name: China IP67 waterproof 1.45mm m12 200°super fisheye Lenses for automotive applications
product advantage
1, 100% made in China Fisheye Lens
2, 200 degree Fish Eye Lenses are used in Car camera, automobile camera
3, IP67 waterproof good for truck camera lens, bus camera, backup camera lens
4, barrel made of aluminum alloy raw material, surface oxidized, All black Design
Product Specification
Technical Feature of 1.45mm Car Fisheye Lens
1,Effect Focal Length: 1.45mm
2,Back Focal Length: 3.06mm
3,Flange.Focal.Length: 2.06mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,max image circle: 4.1
7,HFOV: 200°
V FOV: 134°
D FOV: 200°
8,TV distortion: 110%
9,Thread size: M12xP0.5
10,Lens Structure: 6G
11,IR filter: 650IR
12,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
13.TTL: 12.96mm

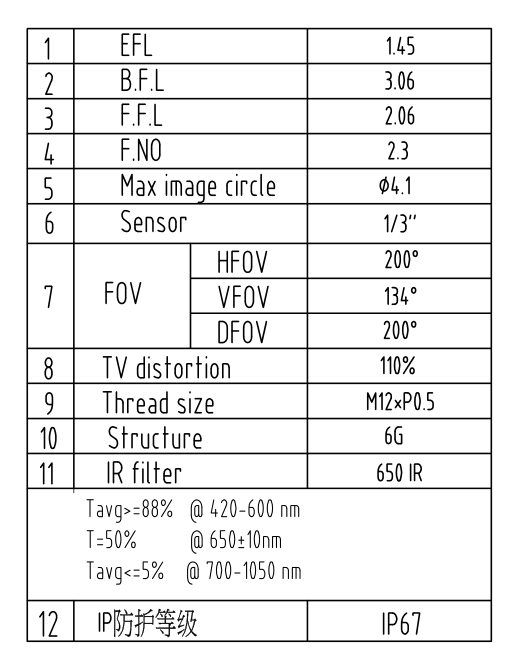

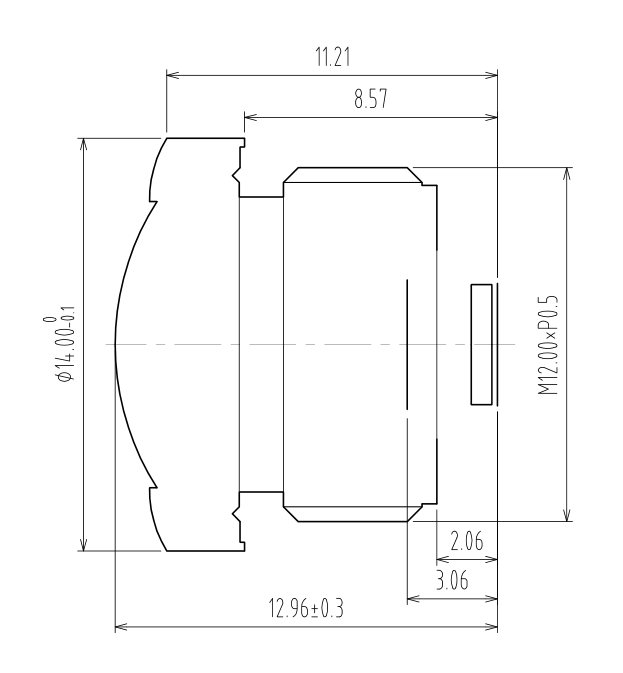

Technical Datasheet of waterproof Fisheye Lens for Car
Product Application
Lenses for Automotive Applications
Lens for car surround view camera lens
Lens for automotive SVS lens (round view camera lense)
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
lens for 360° panoramic surveillance camera
