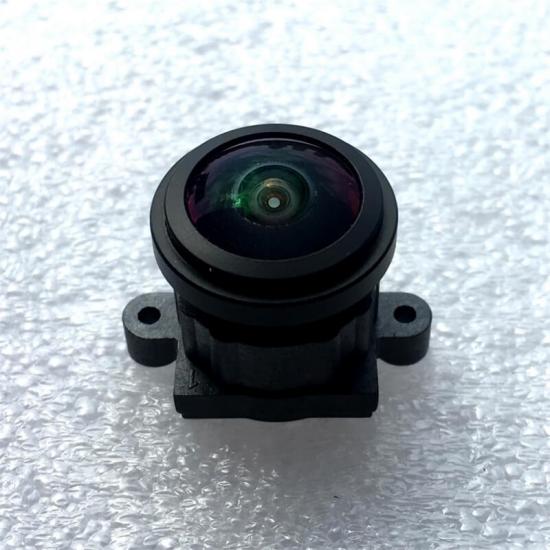

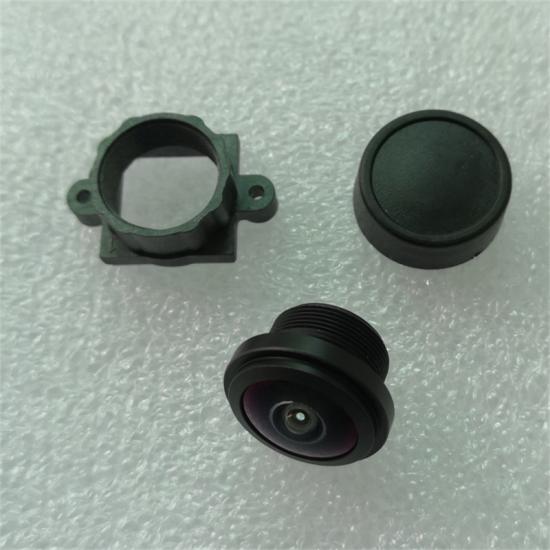

Product Name: 200 degree waterproof 1/3'' 1.7mm fisheye lens S mount for car cctv
Product advantage
1, 200 degree Autotmotive Fisheye Lens
2, 200 degree super fish eye lens for CCTV camera
3, Fisheye Lens China 100% produced, M12 Fisheye Lens manufacturer
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification

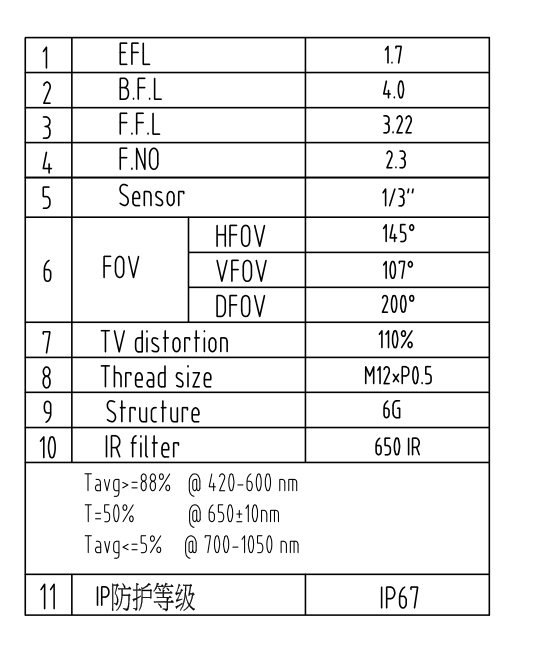

Technical feature of 1.7mm Ultra Wide Angle Lenses
1,Effect Focal Length:1.7mm
2,Back Focal Length: 4.0mm
3,Flange.Focal.Length: 3.22mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,HFOV: 145°
VFOV: 107°
DFOV: 200°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 6G
10,IR filter 650IR
11,Waterproof grade IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
12.TTL: 14.44mm

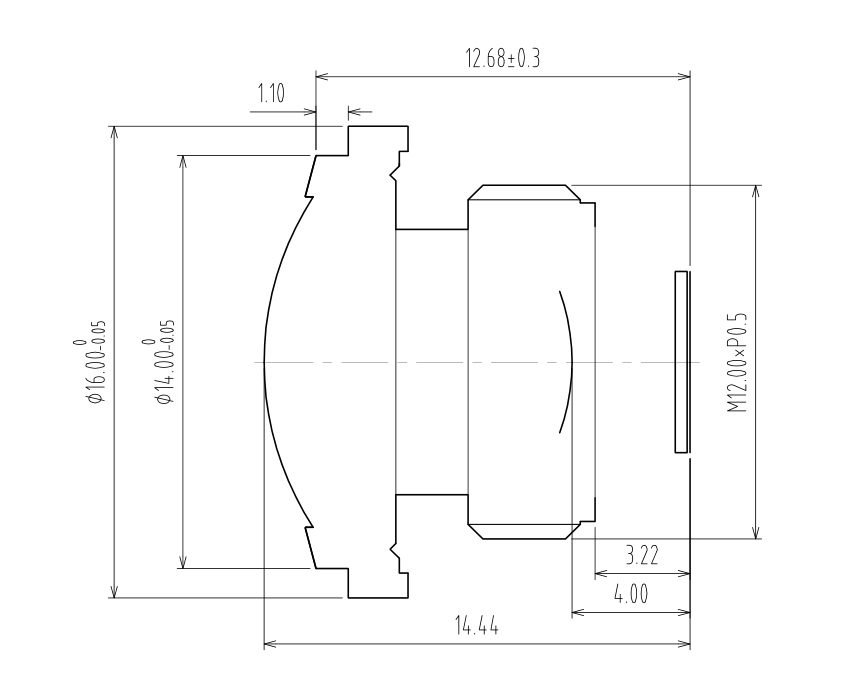

Technical datsheet of 200 degree Autotmotive Fisheye Lens
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Automotive 360 surround view Camera
7, Lens for CCTV Fisheye Camera
Custom-Made Lenses, Customized Lens
we are Personalized Custom-design and Custom-Made Fisheye Lenses Manufacturers in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
About US- China Optical Lens Manufacturer
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
