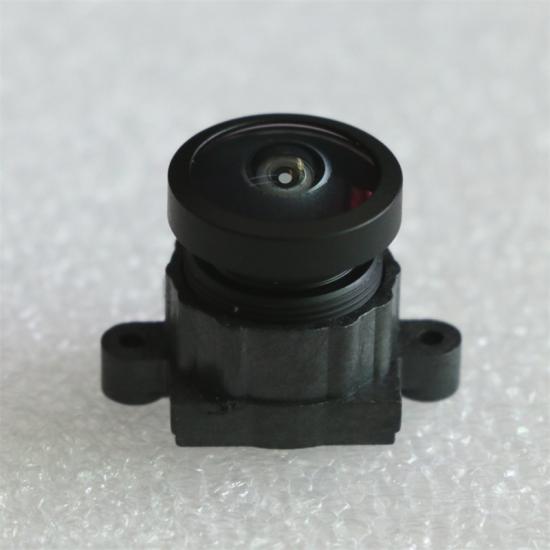

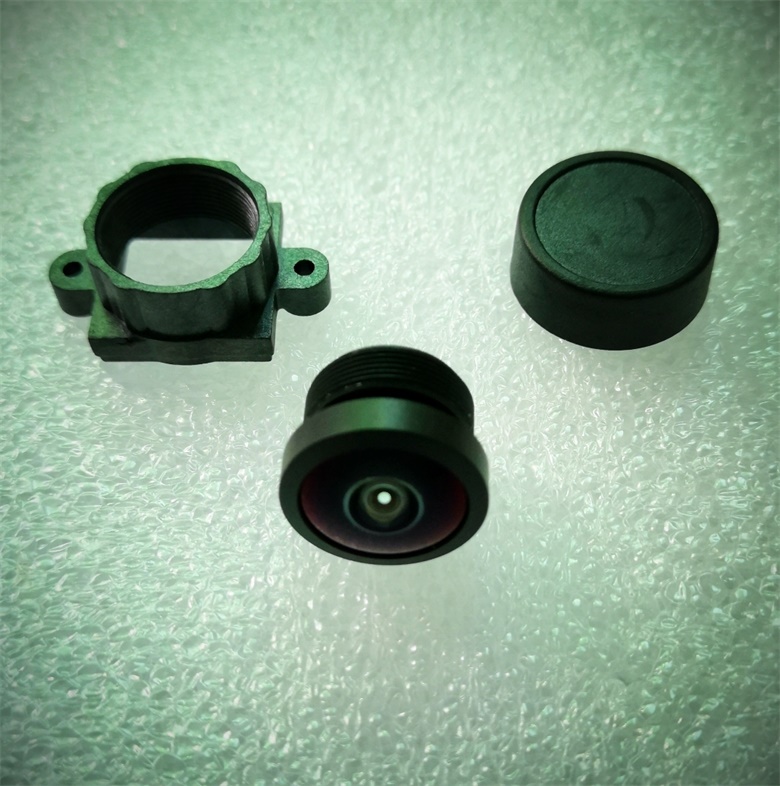

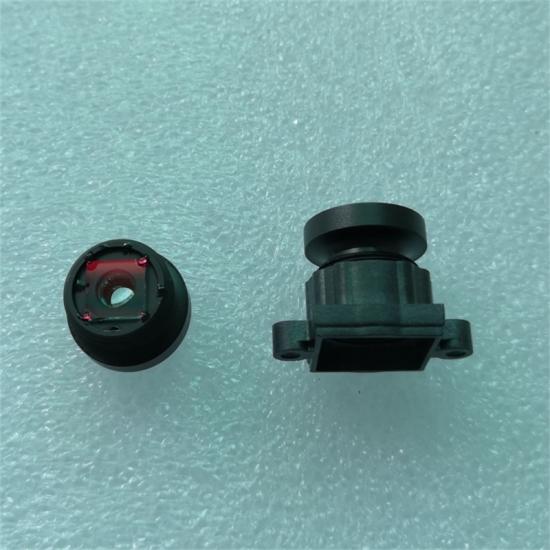

Product Name: IP68 1/3'' 1.7mm fisheye lens for Car Reverse Parking Camera and Video Door Phone
product advantage
1, Hortizontal 145 degree Video Door Phone Lens
2, widely used in multiple product field as following
3, Hortizontal 145 degree ideal as Rearview camera Lens Automotive, Parking Lens
4, produced by Fully Automated Lens Assembly Machines
Product Specification

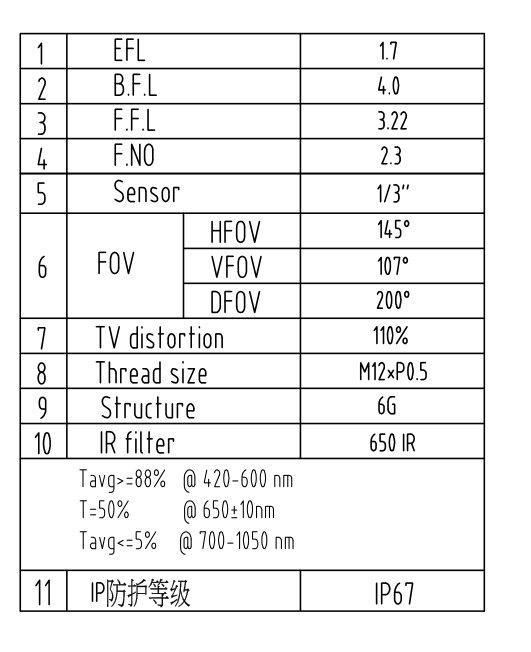

Technical Feature of 1.7mm 360°Camera Reverse Parking Lens
1,Effect Focal Length: 1.7mm
2,Back Focal Length: 4.0mm
3,Flange.Focal.Length: 3.22mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,HFOV: 145°
VFOV: 107°
DFOV: 200°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 6G
10,IR filter: 650IR
11,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
12, TTL: 14.44mm

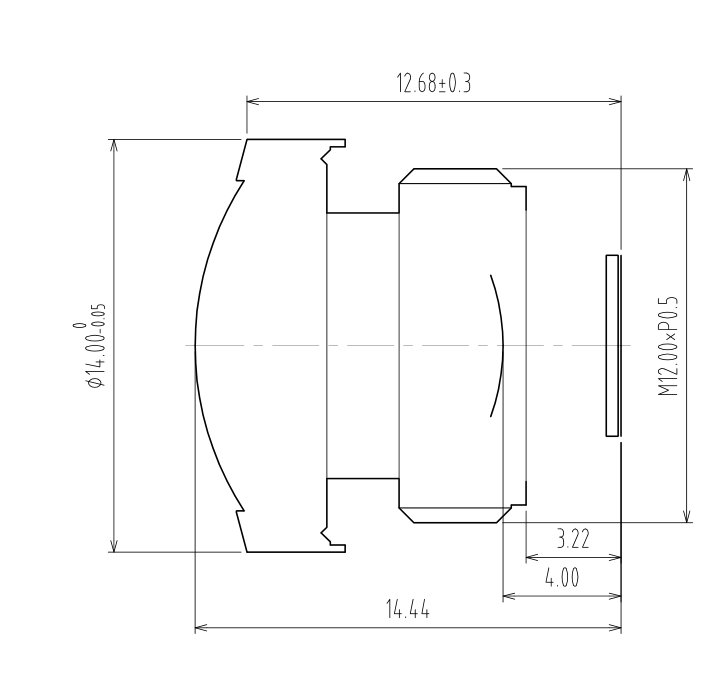

technical datasheet of Lens Automotive
Product Application
1，Lens for Video Door Phone
2, Lens for 360 car camera
3, Lens for action camera
4, Lens for Projector
5, Lens for Car Parking Lens
6. Lens for Automotive 360 surround view Camera
