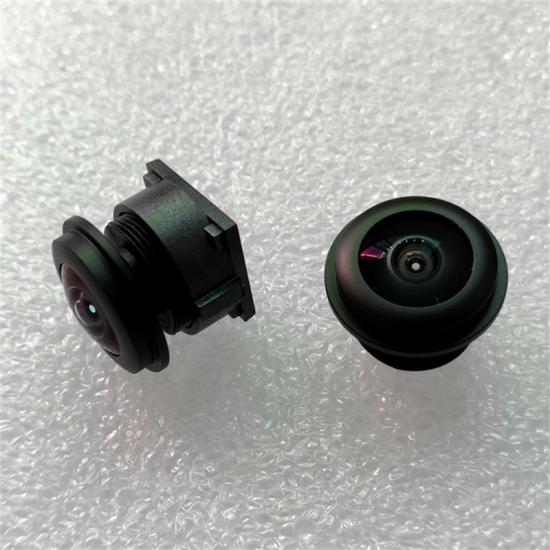

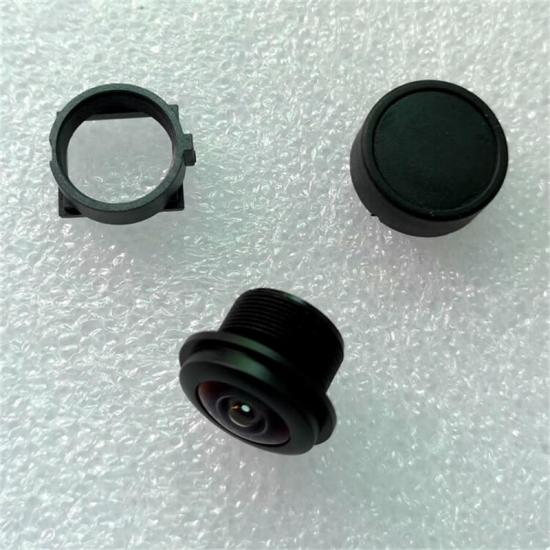

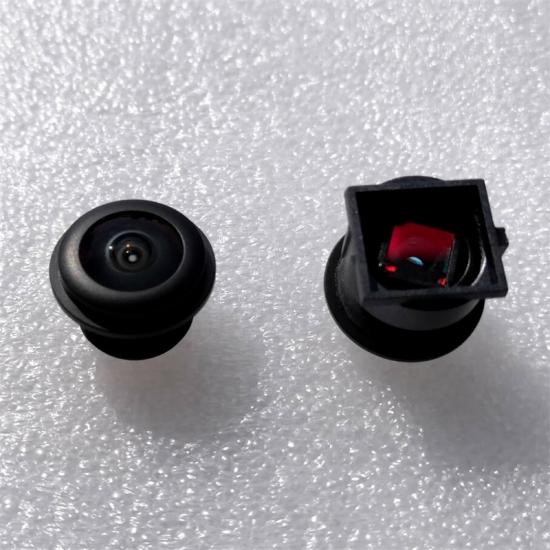

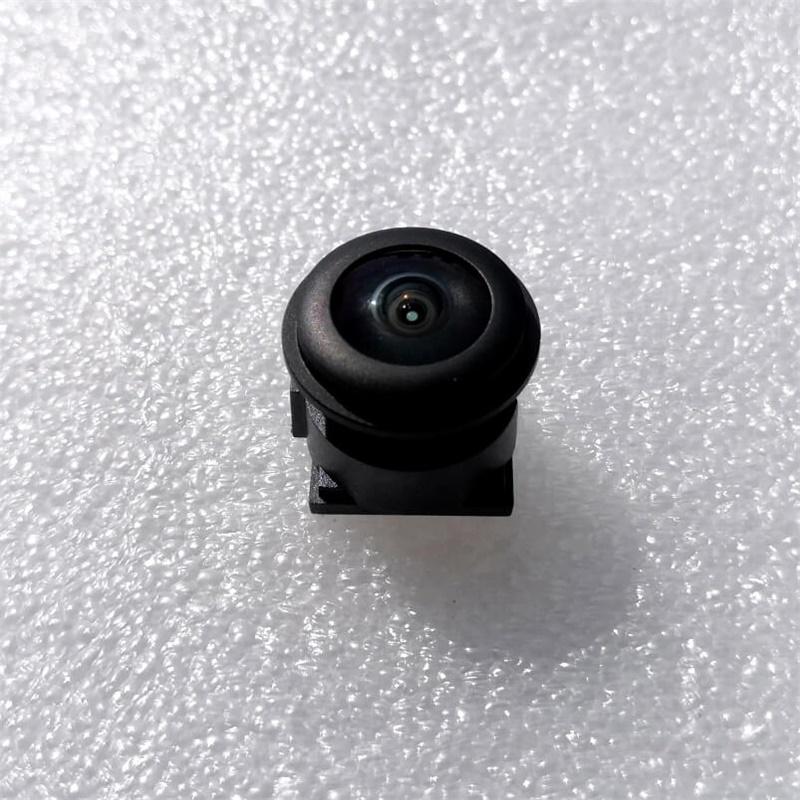

Product Name: IP67 1/3'' IMX225 1.45mm m12 fisheye 195 degree Lens for Automobile Cameras, 360 Panoramic Camera Lenses
product advantage
1, 195 degree Fish Eye Automobile Cameras Lens
2, 360 Panoramic surround view for car camera
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, Compact structure, excellent optical performance
Product Specification
Technical feature of 1.45mm Fish Eye Lenses
1,Effect Focal Length: 1.45mm
2,Back Focal Length: 2.39mm
3,Flange.Focal.Length: 1.35mm
4,Aperture F/NO: 2.2
5,Matching Sensor: 1/3" sony IMX225
6,HFOV: 195°
VFOV: 148°
DFOV: 195°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 2G3P
10,IR filter: 650IR
11,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

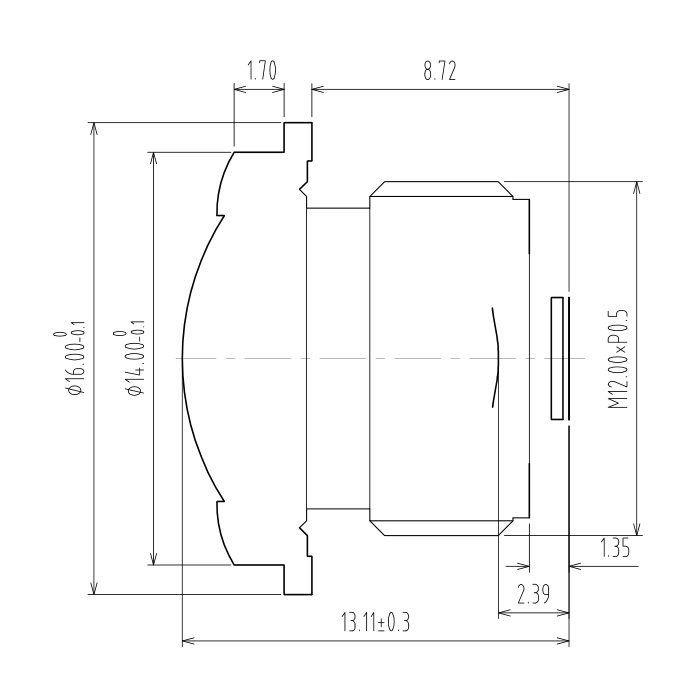

12, TTL:13.11mm

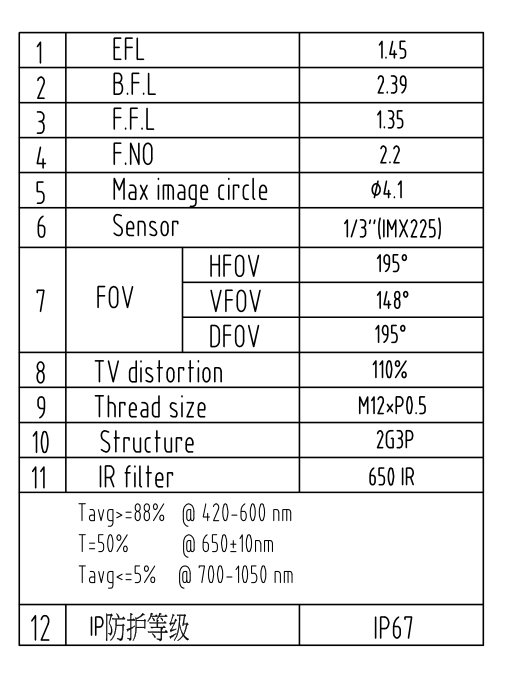

Technical datasheet of Automobile Cameras Lens
Product Application
Lens for Car driving camera
Lens for car reverse camera
Lens for sport action camera
Lens for 360 panoramic camera
Lens for Fisheye projector
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop.Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
