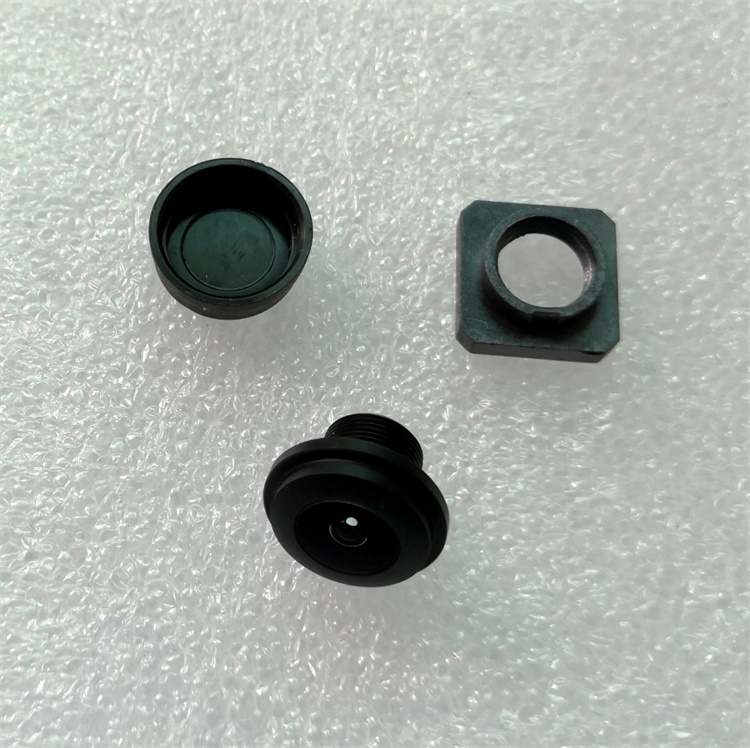

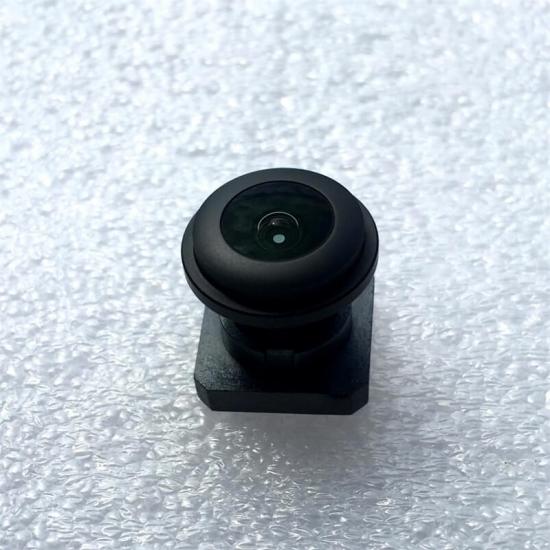

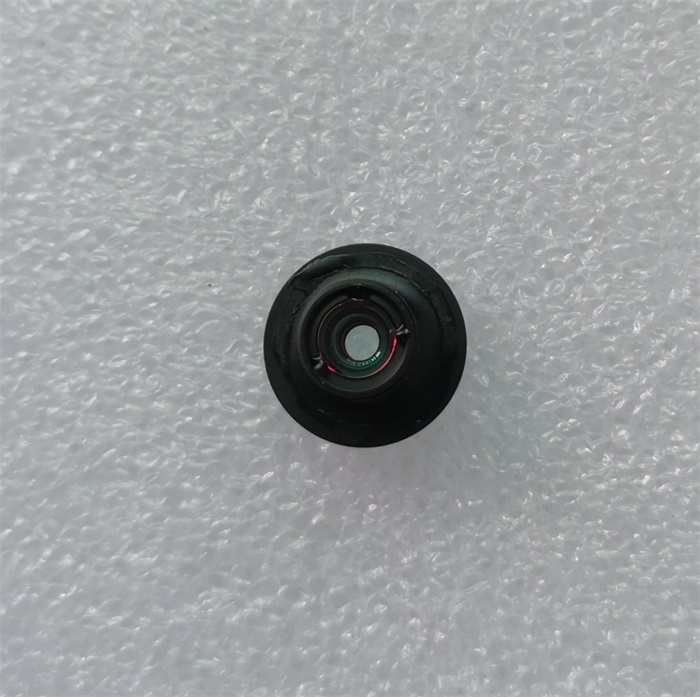

Product Name: 1/4" IP67 waterproof 2.0mm 3MP 150 degree wide angle Lens for car/truck/trailer/bus reversing lens
Product Advantage
1, 150 degree wide angle car Reversing Lens
2, 150 degree backup camera lens with 18% acceptable distortion
3, compact constructure M12 Lens Automotive
4, work as Car Camera lenses, car front view Lens, Backup Camera Lens available
Product Specification

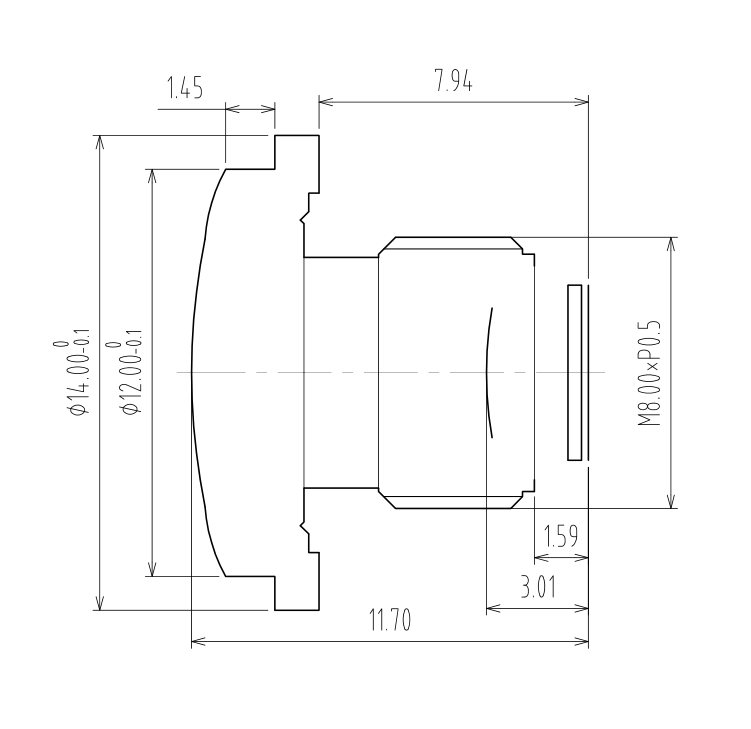

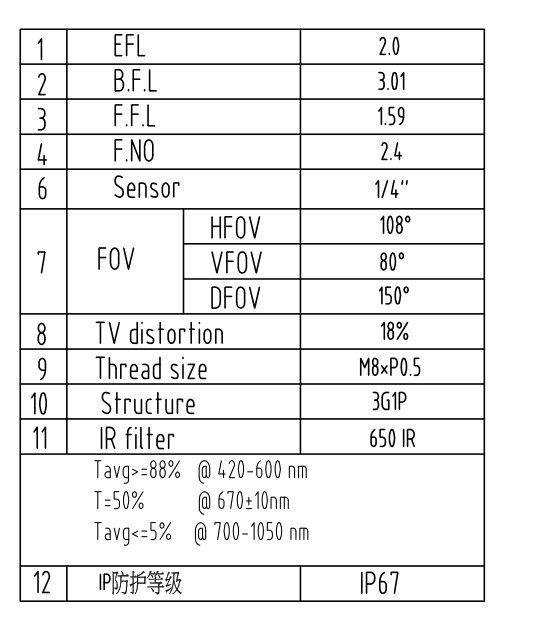

Technical datasheet of 2.0mm Car Camera Lenses
technical feature of 2mm Ultra Wide Lenses
1,Effect Focal Length: 2.0mm
2,Back Focal Length: 3.01mm
3,Flange.Focal.Length: 1.59mm
4,Aperture F/NO： 2.4
5,Matching Sensor：1/4"
6,HFOV：108°
VFOV： 80°
DFOV：150° 150 Degree Lens
6,TV distortion：18%
7,Thread size： M8xP0.5
8,Lens Structure： 3G1P
9,IR filter： 650IR
10,Waterproof grade： IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

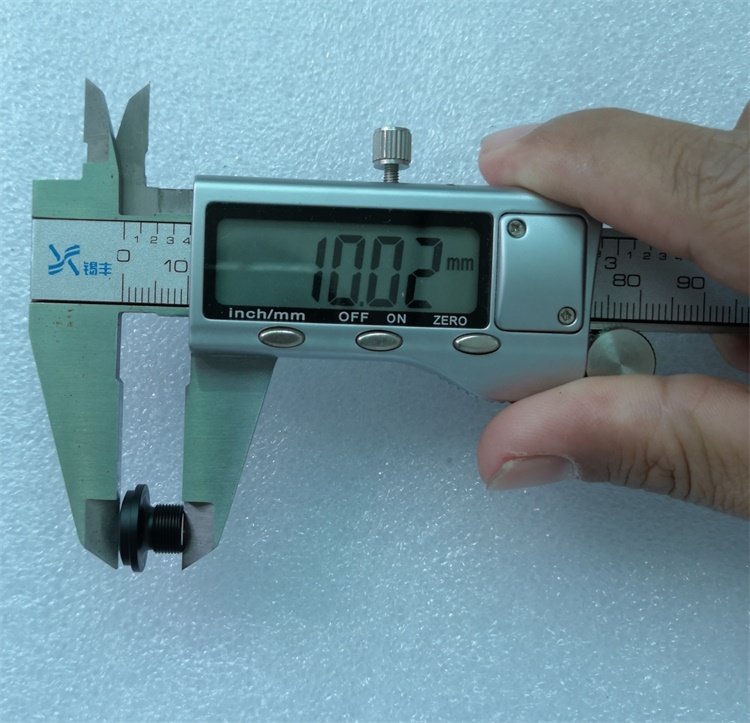

11, TTL: 11.7mm
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
