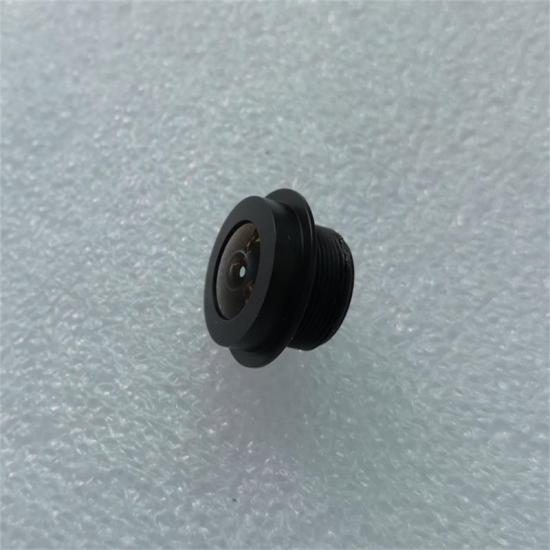

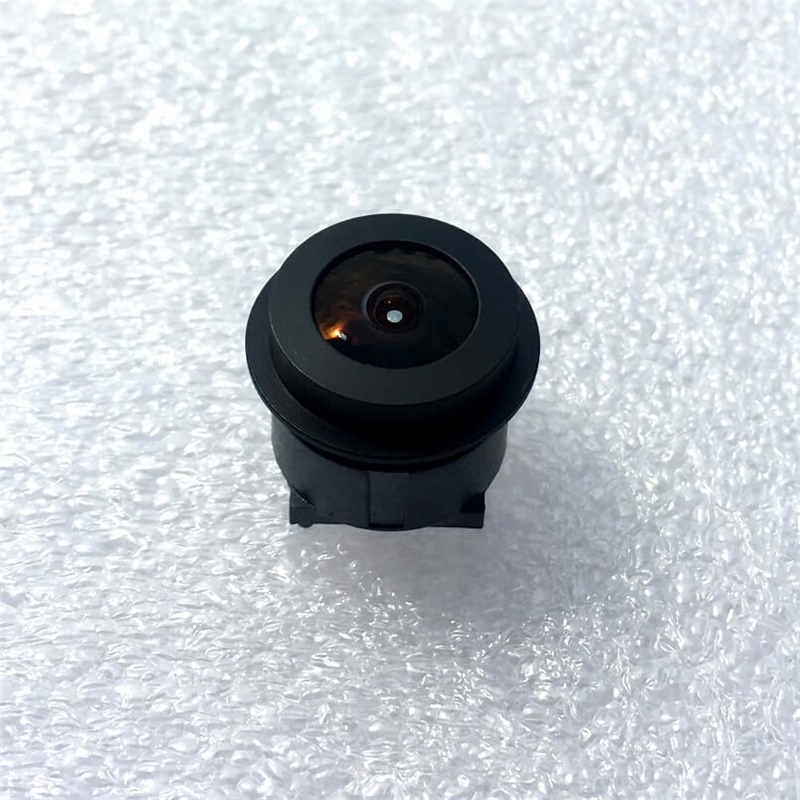

Product Name: 1/3" IP68 Waterproof 2.5mm F2.5 150° Automotive Lens
Product Advantage
1, Hortizontal 114 degree Car Black Box Lens,
2, IP67 waterproof also permit it to used for outdoor cctv smart home camera lens too
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, China profesional optical Lens Producers, Car Camera Lens Manufacturers
Product Specification

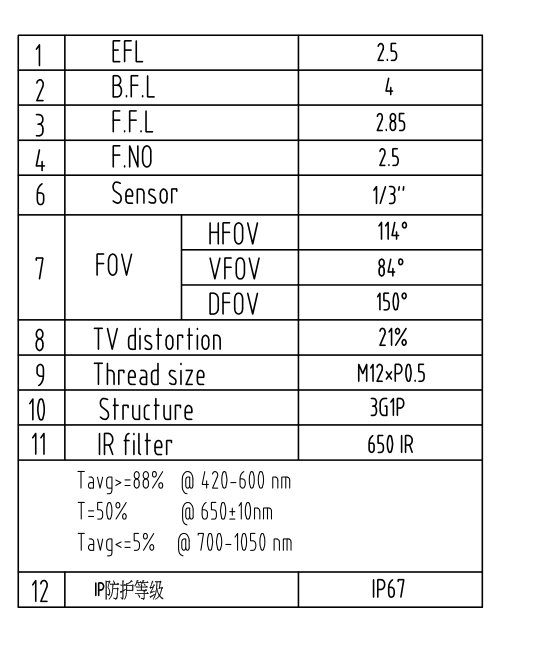

Technical Feature of 2.5mm Backup Cameras Lens
1,Effect Focal Length: 2.5mm
2,Back Focal Length: 4.0mm
3,Flange.Focal.Length: 2.85mm
4,Aperture F/NO: 2.5
5,Matching Sensor: 1/3"
6,HFOV: 114°
VFOV: 84°
DFOV: 150°
7,TV distortion: 21%
8,Thread size: M12xP0.5
9,Lens Structure: 3G1P
10,IR filter: 650IR
11,Waterproof grade: IP68
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
12,TTL: 13.23mm

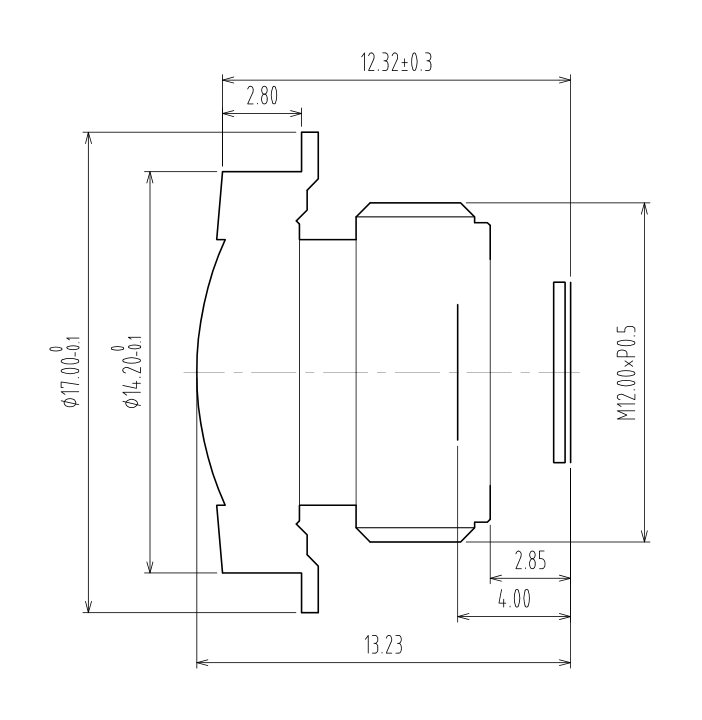

Technical Datasheet of 2.5mm M12 Waterproof Car Camera Lens
Product Application
1,Lens for Car Camera
2,Lens for Automobile Camera
3,Lens for Car Black Box, Dash Camera, Car DVR Camera
4,Lens for Car backup Camera, Rearview Camera, front View Camera
5,Lens for Automotive Camera DMS, ADAS Camera
6,Lens for Smart Home Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Custom Car Camera Lenses
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China, Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too,welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
