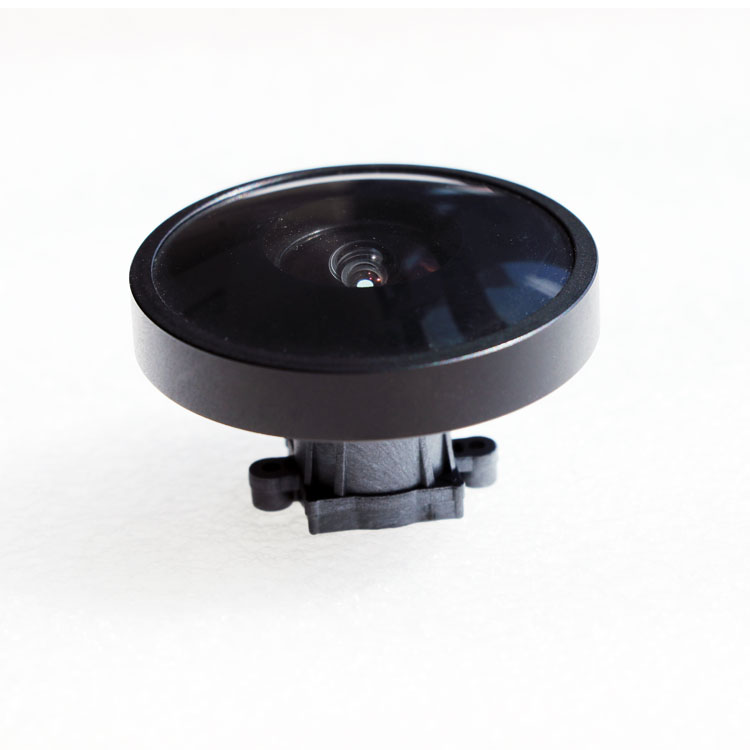

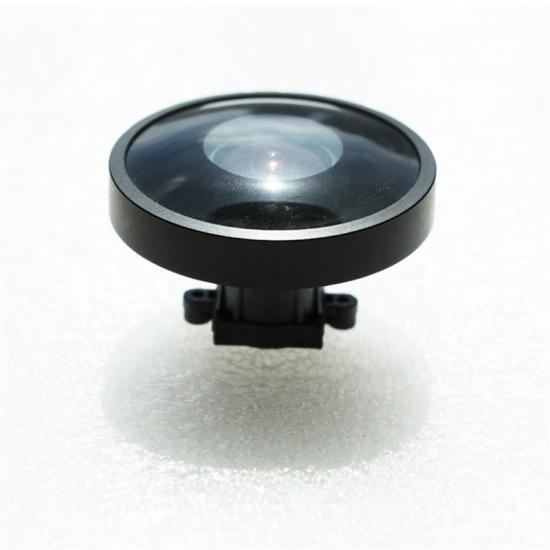

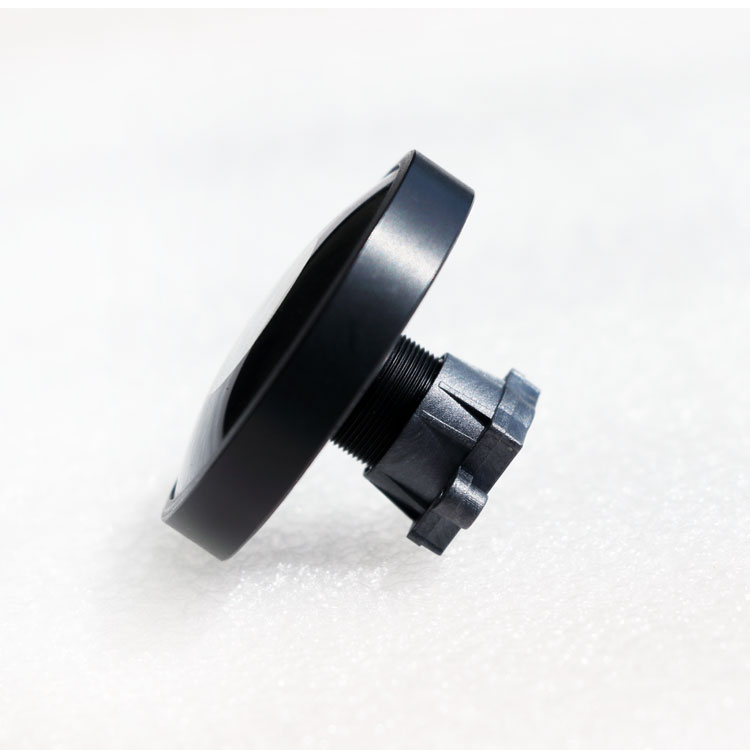

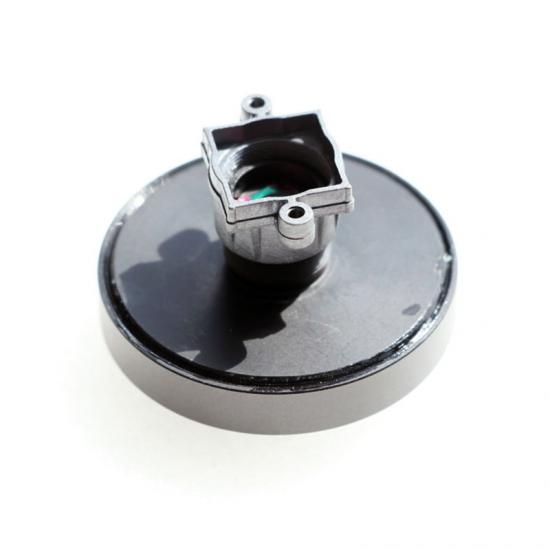

Product name: 1/2.7'' OV10635 2.85mm m12 Wide Angle CCTV Lens
Product Advantage
1, Hortizontal 120 degree M12 Wide Angle Lens
2, 5 Megapixels high resolution + Wide Angle
3, Low cost Cheap Wide Angle Lens
4, Japanese Glass elements bring excellent optical performance
Product specification
keying technical feature of 2.85mm 5MP wide angle lens
1,Sensor size: 1/3" 1/2.7" inch CMOS SENSOR
2,matching sensor: OV4689,AR0330,OV2710
3,Focal length (EFL): 2.85mm
4,F/NO (infinite): 2.4
5,View angle (diagonal/horizontal/vertical): 138/120/ 66.5 degree
6,TTL: 24.2mm
7,TV Distortion: <10%
8,Back focal length (MBFL): 6.25mm
9,Flange back length: 3.32mm
10,Thread size: M12x P0.5
11,ELEMENT: 7G +IR
12,Max image circle: 7.6
13,Relative illumination >74.5% (1/2.7 sensor)
14,CRA <22.1 degree (1/2.7 sensor)
15,Wavelength: 650nm~940nm
16,MTF resoltion: 5MP
Product Application
1，lens for automotive camera lens,
2，lens for Wide Angle CCTV security camera,
3，lens for car rearview backup camera
4，lens for 1080P smarthome camera lens
5, Lens for Drone Camera
6, Lens for Mini CCTV Camera
7, Lens for Mini video recorder
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment. Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc
of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
