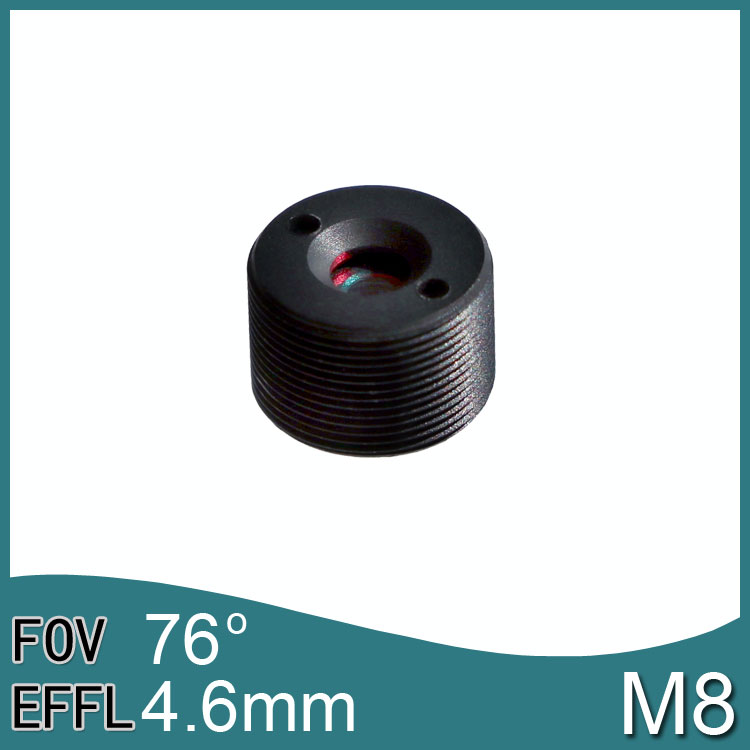

1/3" 5M 4.6mm m8 F3.0 5MP Zero No Distortion Lens

0.8% distortion and short TTL 6.5mm compact m8 lens can be used for smart home lens, lens for face recognition camera and other AI biometric scanner camera etc

  • Item No.:

    m8-4.6mm-126-003
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    200
  • Product weight:

    2
  • Shipping port:

    Shenzhen
  • Lead Time:

    4 days
  • Keying selling point:

    M8 Compact Design, Less than 0.8% distortion
  • H.S.Code:

    90029090
  • MTF Resolution:

    5megapixels FULL HD

  • Product Detail

Product Name: 1/3'' 4P 5MP 4.6mm AI face recognition Biometric scanner camera lens m8 No Distortion Lens -0.8% TTL 6.5mm

Product Advantage:

1, Less than 0.8% distortion, Non Distortion Lens, Zero Distortion Lens

2, 5 Megapixels high resolution

3, Widely used for Face Recognition Lens

4, Japanese Glass elements and metal barrel housing

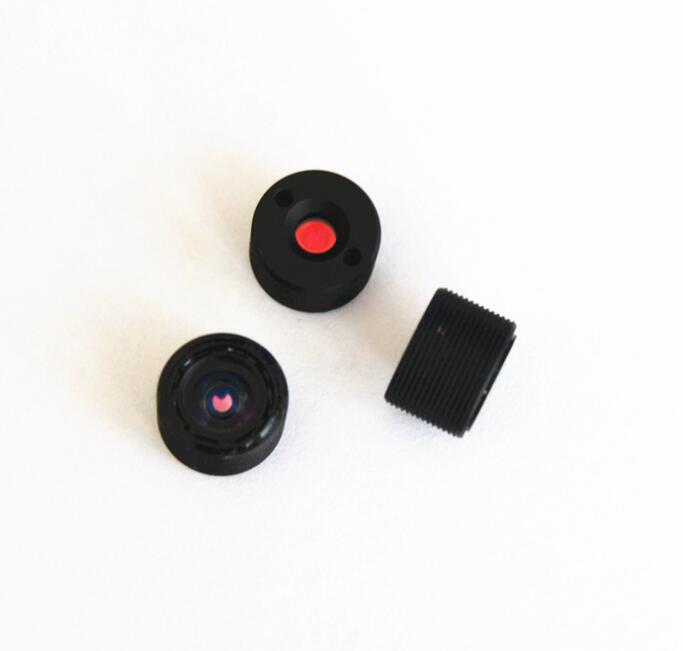

m8 Mini Lens


Product Specification

TECHNICAL FEATURE OF 4.6mm M8 Face Recognition Lens

1. LENS CONSTRUCTION:4P

2.CMOS SENSOR 1/3”5 Megapixels

3.EFFECTIVE FOCAL LENGTH:4.6MM;

4.MAX IMAGE CIRCLE:6.1MM;

5.F/No:3.0;

6.FOV:76°(D6.0),60.5(04.5);

7.OPTICAL DISTORTION <-0.8% ( Zero non distortion)

8.RELATIVEILLUMINATION:65%(ATD4.5);

9.IR COATING:645±10NMAT:50%;

10. CHIEF RAY ANGLE:<25°;

11, SHORT TTL: 6.5mm

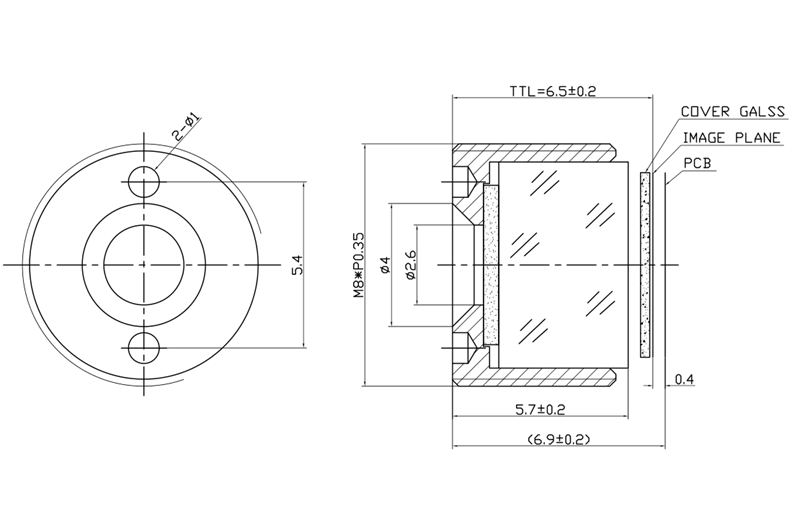

Zero Distortion Lens Drawing

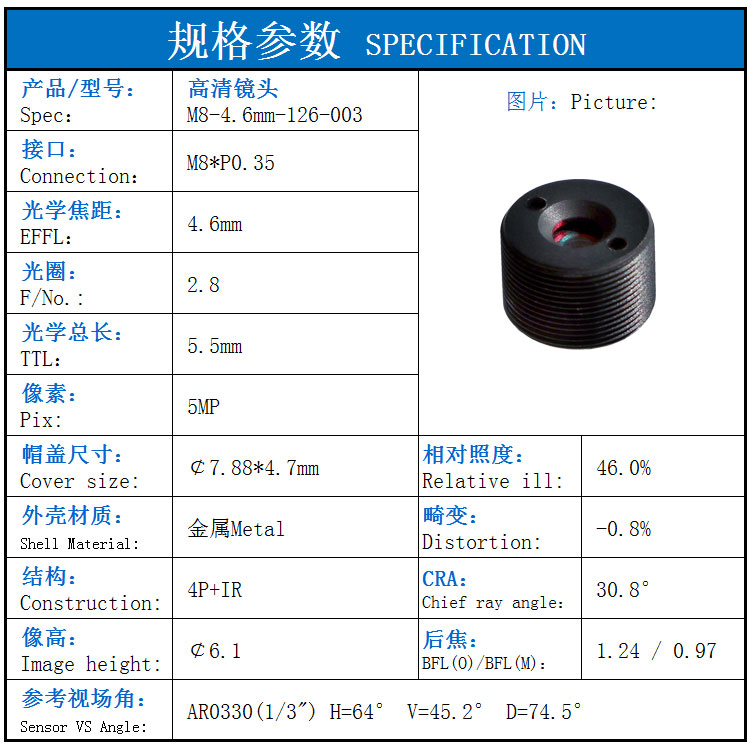

Non Distortion Lens datasheet

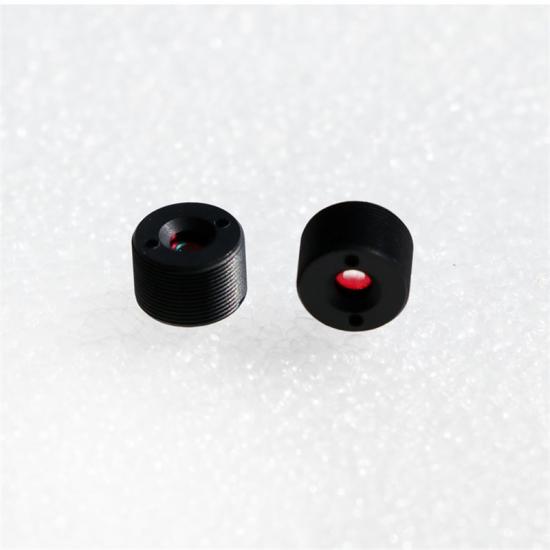

Face Recognition Lens

Product Application

1,Lens for Face recognition Camera

2, Lens for Document Scanner

3, Lens for portable handheld Scanner

4, Lens for Face reader

5, Lens for Car ADAS Camera, DMS Camera

6, Lens for Cabin Camera in Car

7,Lens for Smart Home Camera


Custom Design Lenses

we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China,Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed thank you very much


About US

we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment. Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc. of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
