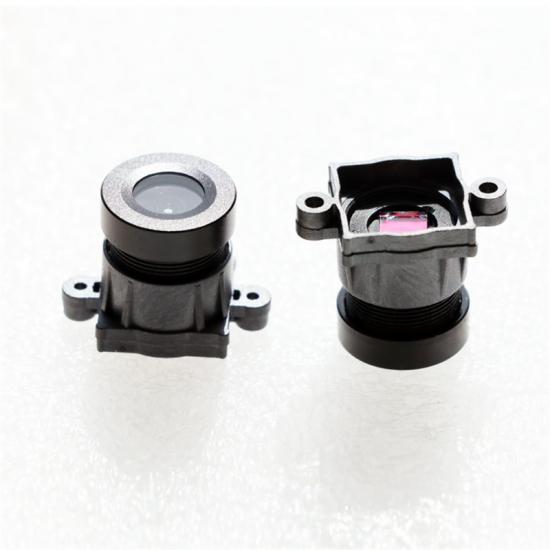

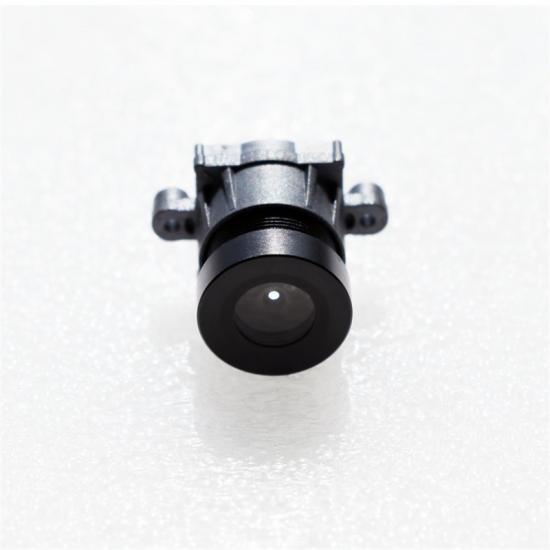

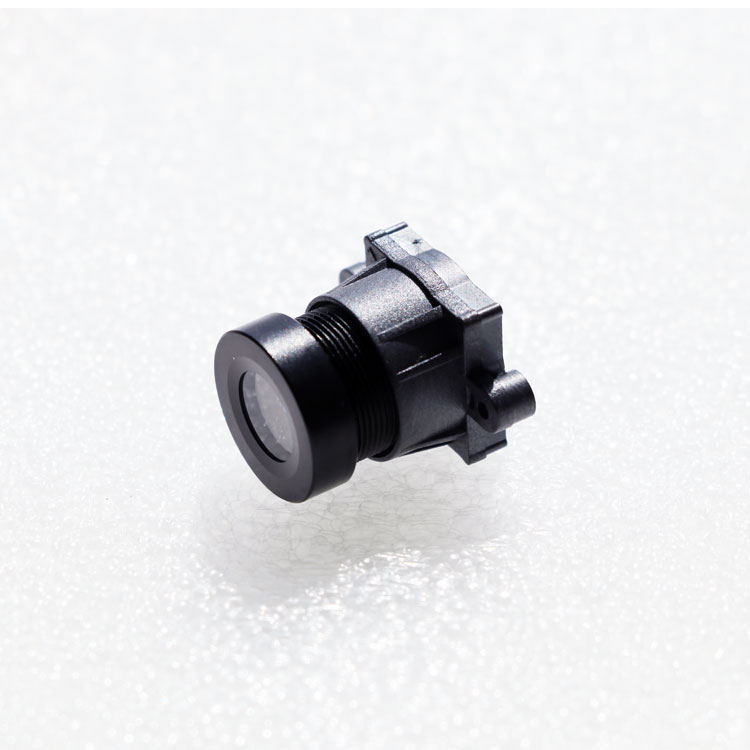

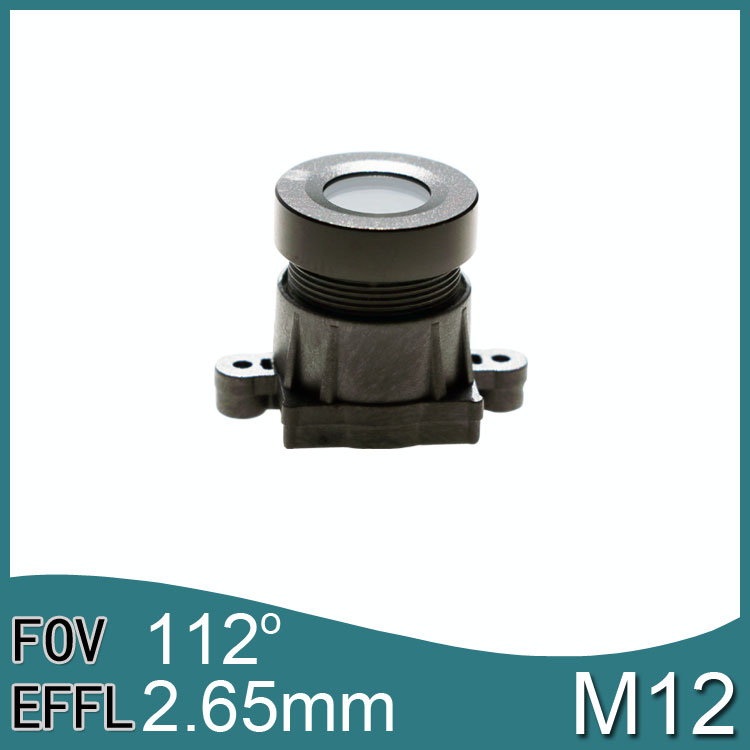

Product Name: 1/4'' OV9712 2.65mm 5G m12 Wide Angle Surveillance Camera Lens TTL 16.2 F2.6 HFOV 87.2
Product Advantage:
1, 1/4 112 degree Wide Angle Lens work with OV9712 Camera Module
2，1080P video resolution good for Smart Home Camera and Surveillance Camera
3, 5G Full Glasses Lenses, materials imported from Japan
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification
keying technical feature of 2.65mm 1/4" Wide Angle Lens

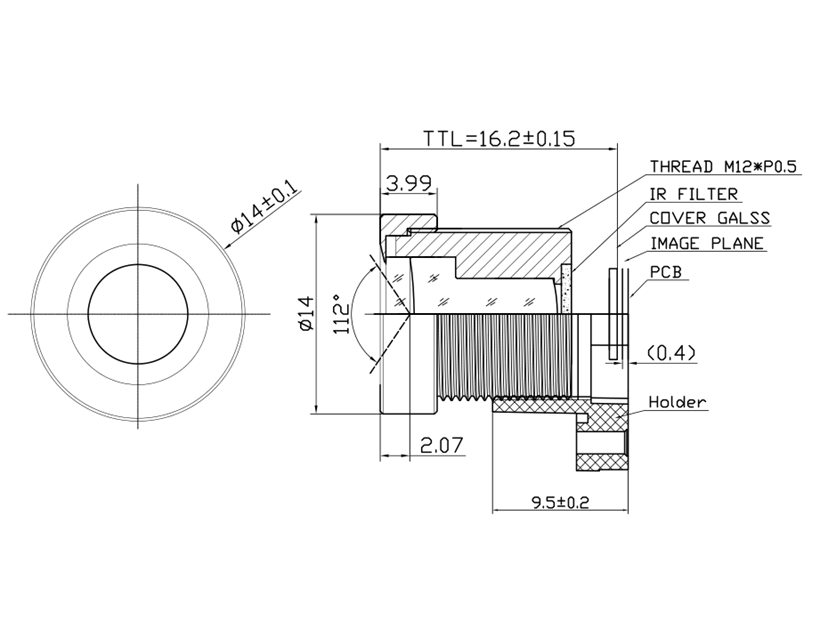

1，TTL：16.20mm
2, EFFECT Focal length：2.65mm
3, Aperture F/No: 2.6
4, OBFL：3.4mm
5, MBFL：2.52mm
6, Max image circle：5.6
7, FOV (D/H/V)：112/87.2/50.5 degree (1/4 OV9712)
8, Optical Distortion：H:-8.7%, V: -26.33%
9, Relative illumination：>88.5%
10, CRA：<16.2 degree

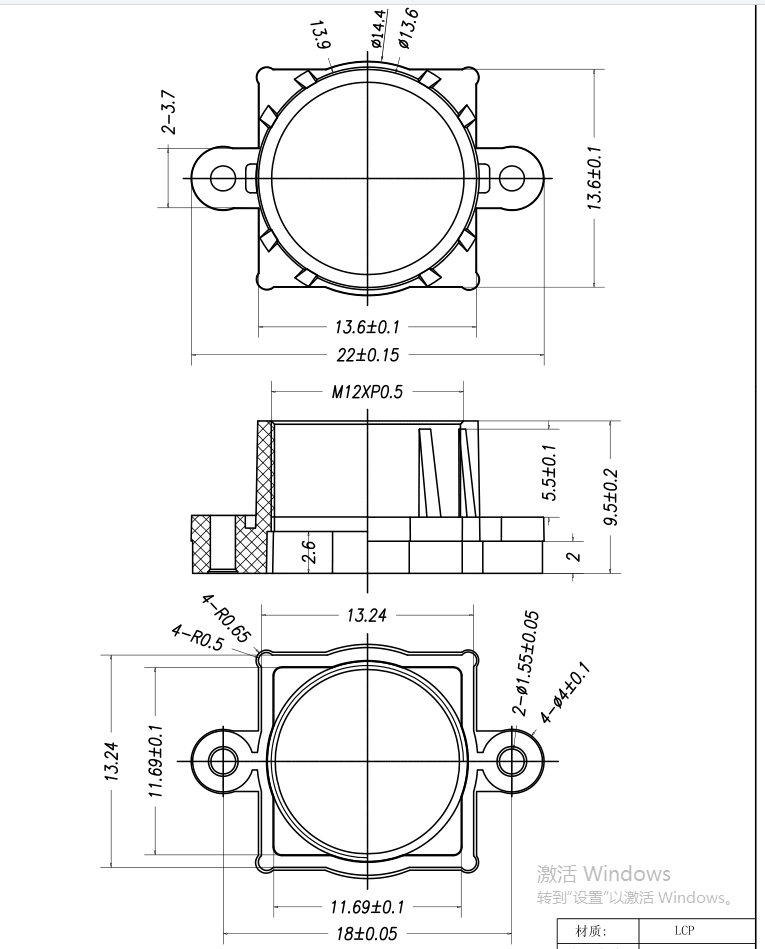

11, mount type：M12*P0.5
12, Lens construction：5G+1IR
13, IR Coating：T=50%@650+/-8nm
14, working temperature：-40 to 80 degree
15, storage temperature：-40 to 90 degree
16, ultraviolet-proof standard：500w@72H

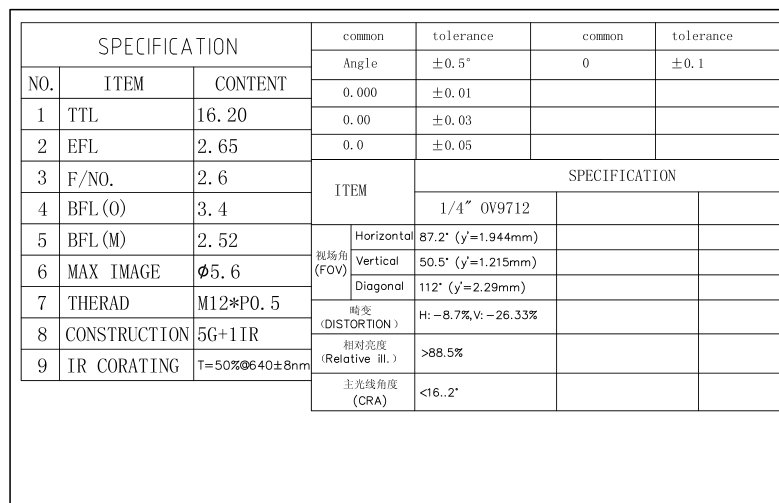

Technical Datasheet of Smart Home Lens
Product Application
lens for IP network camera
lens for CCTV security night vision camera
lens for car night vision rearview camera
lens for 1080P smarthome camera lens
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
