1/4" OV9712 1.8mm M7 177 degree Ultra Wide Angle Lenses Fisheye

1/4 HFOV 136 degree with 6G glass 5 megapixel 1080P

  • Item No.:

    m7-1.8mm-003
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    100
  • Product weight:

    7
  • Shipping port:

    Shenzhen
  • Lead Time:

    4 days
  • H.S.Code:

    90029090
  • MTF Resolution:

    5megapixels FULL HD

  • Product Detail

Product Name: IP68 1/4'' OV9712 1.8mm m7 wide angle 180 fisheye lens

Product Advantage

1, Ultra Wide Angle Fish Eye Lenses up to 177 degree

2, 1/4 CMOS Mini M7 Fisheye Lenses

3, 1.8mm Lens for Car rearview Camera

4, All Lens will be free from maintenance within Quality warranty period ( 2 years)

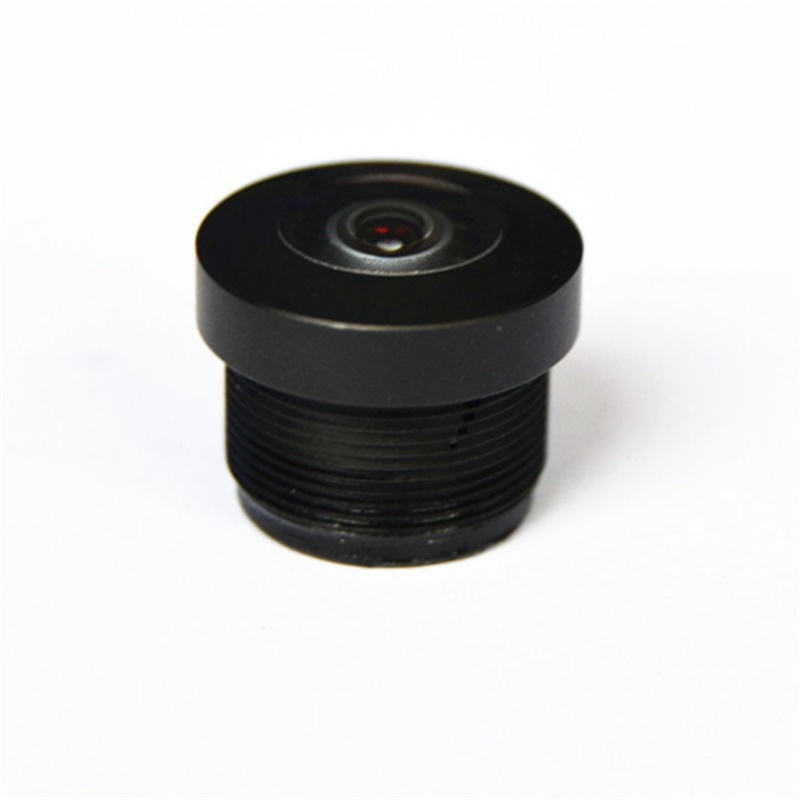

Fisheye Lenses


Product Specification

keying technical feature of 1.8mm m7 ultra wide angle lens

1,TTL:  14mm

2, EFFECT Focal length: 1.8mm

3, Aperture F/No: 2.0

4, Optical Back Focal Length: 3.46mm

5, Mechnical Back Focal Length: 2.33mm

6, Max image circle: 4.7

7, FOV (D/H/V): 177.2/136/79 degree

(1/4 OV9712 sensor) ultra wide angle

8, Optical Distortion: H:-18.9%, V:-56.7%

9, Relative illumination: >54.3%

10, CRA: <14.96 degree

11, mount type: M7*P0.35

12, Lens construction: 6G+1IR

13, IR Coating: T=50%@650+/-8nm

14, working  temperature: -40 to +80 degree

15, storage temperature: -40 to +90 degree

16, ultraviolet-proof standard: 500w@72H

17, Diameter of Lens cap: C10

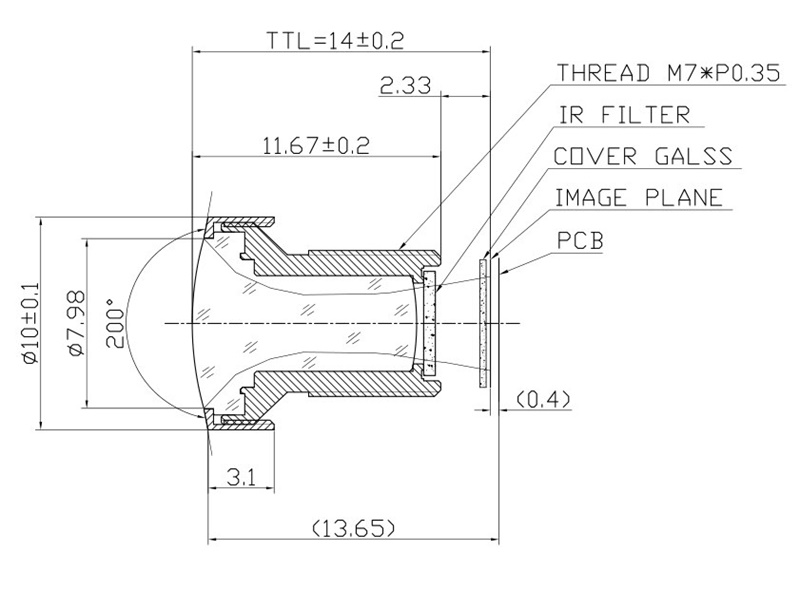

technical datasheet of M7 Fisheye Lens

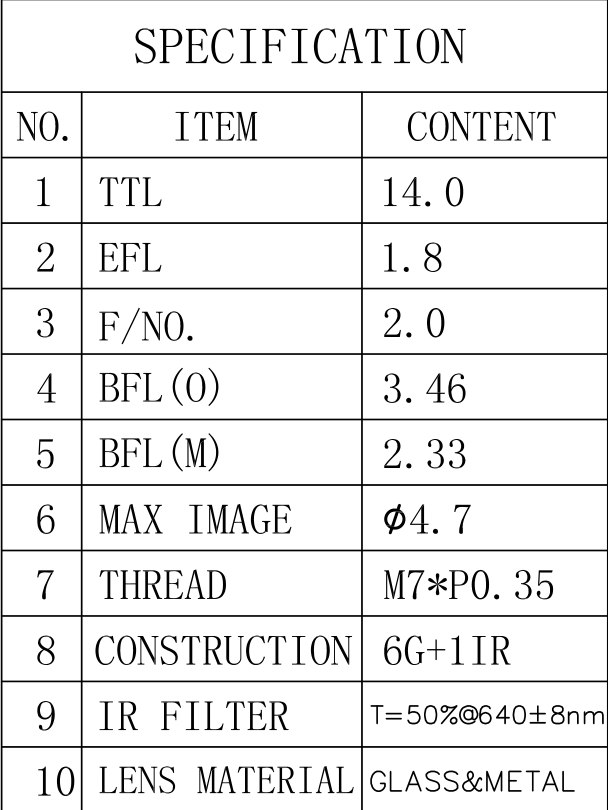

1.8mm Lens Specification

1.8mm M7 Lens data

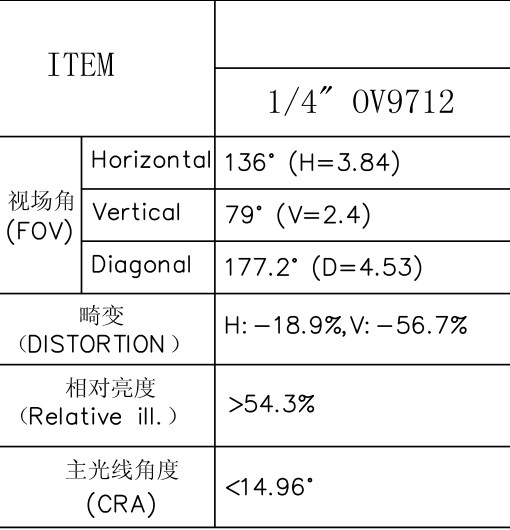

180 Degree Fisheye Lens Datasheet

Product Application

1, Lens for Fish eye Camera

2, Lens for Car rearview Camera, Front View Camera

3, Lens for Car Black Box, Car DVR Camera

4, Lens for mini sport action Camera

5, Lens for smart home Camera Lens

6, Lens for Drone Camera

7, Lens for Mini CCTV Camera

8, Lens for Mini video recorder

Fisheye Lens Effect

Custom Lens

we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed, thank you very much


Complete Lenses production and Glass lens assembly process

1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
