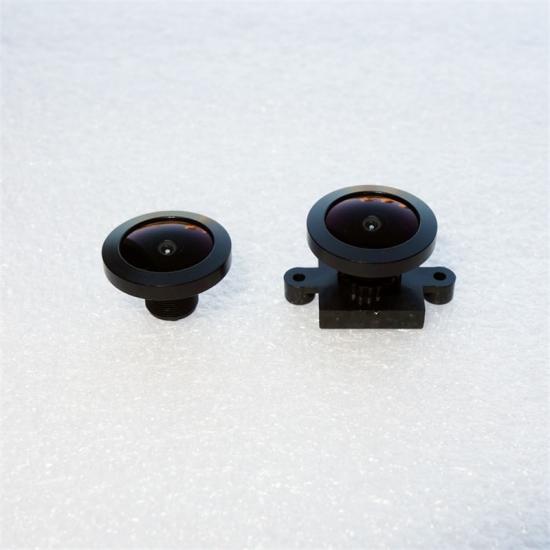

Product Name: 1/4'' 206 degree 1.08mm m7 super fisheye 360 car surveillance around view camera lens
Product Advantage
1, All Angles are Super Fish Eye 206 degree
2, Compact M7 Fish-eye Lens for 360 Panoramic Camera
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, barrel made of aluminum alloy raw material, surface oxidized, All black Design
Product Specification
keying technical feature of 1.08mm 360 panoramic lens

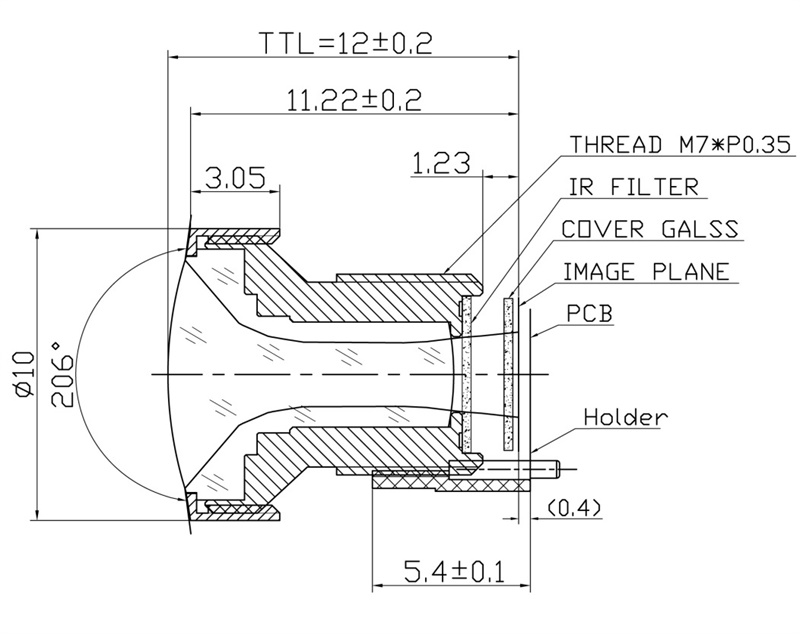

1，TTL: 12mm
2, EFFECT Focal length: 1.08mm
3, Aperture F/No: 2.2
4, Optical Back Focal Length: 2.22mm
5, Mechnical Back Focal Length: 1.23mm
6, Max image circle: 2.9
7, FOV (D/H/V): 206/206/206 degree
(1/3 OV4689 Cmos Sensor)
8, Optical Distortion: -117.7%
9, Relative illumination: >67.7%
10, CRA <20.26 degree
11, mount type: M7*P0.35
12, Lens construction: glass&IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree

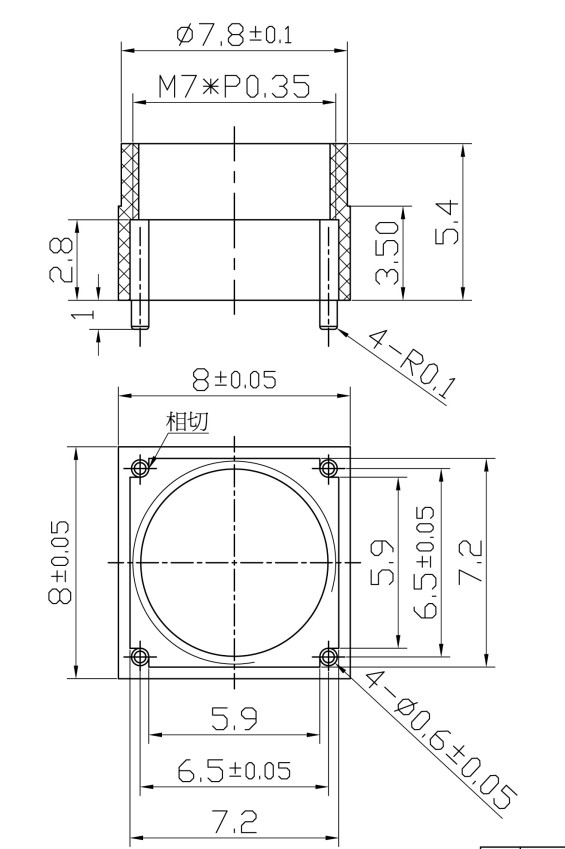

16, size of lens holder: 8*8mm

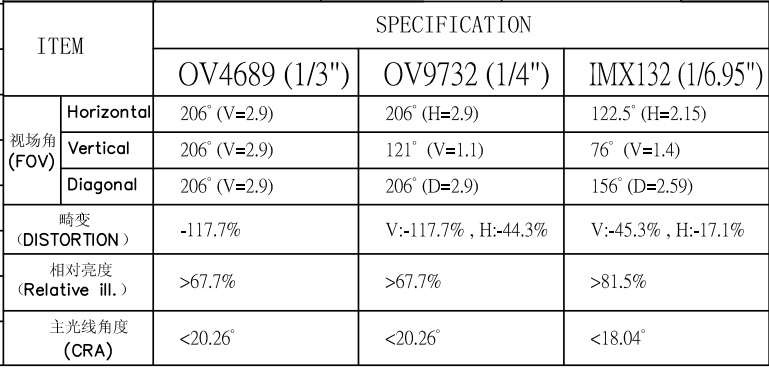

Technical datasheet of M7 super Fish Eye Lens
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
