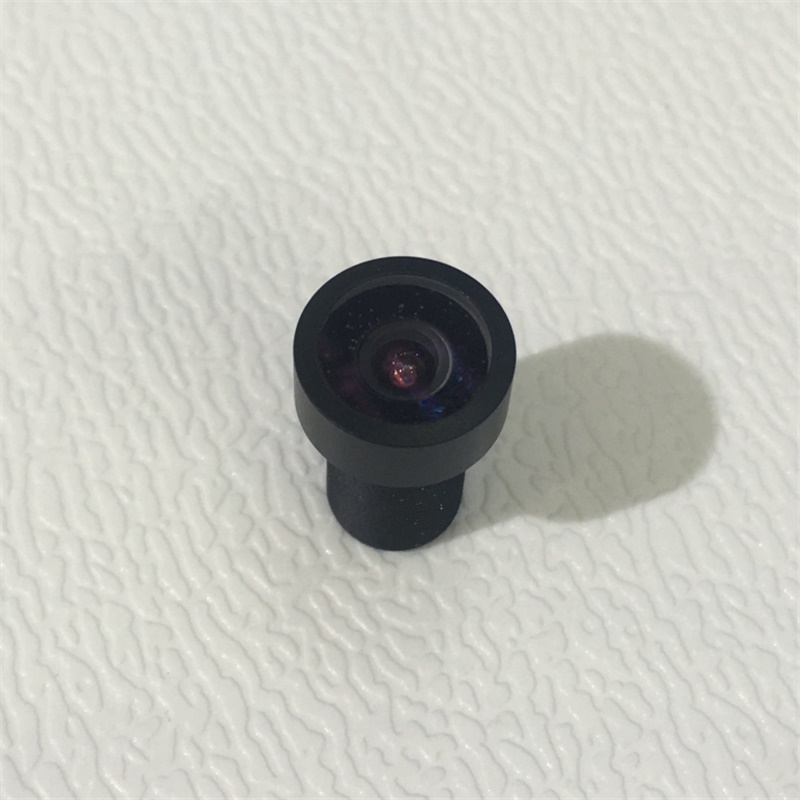

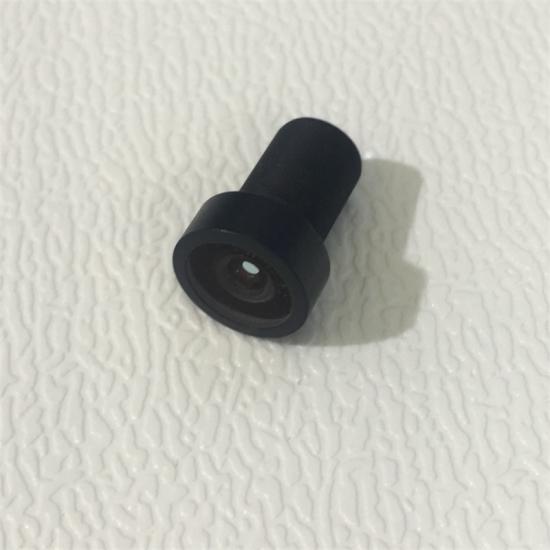

Product Name: 1/4 OV9712 3.2mm 3MP 5G m7 BSD car side corner view camera lens
Product Advantage
1, M7 car Side View Lens
2, IP67 waterproof Lens used in Automotive Industry Camera
3, Full Glasses lenses material imported from Japan
4, Used in Board Camera, MTV Lens, Cmos Board Module etc

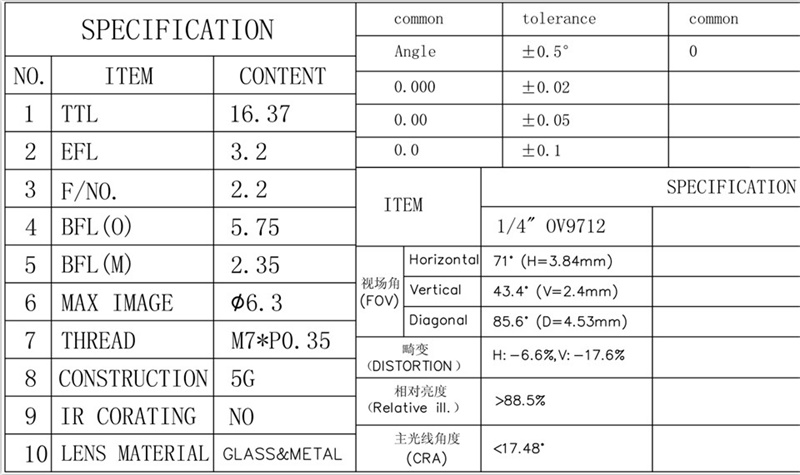

Product Specification
keying technical feature of 3.2mm m7 lens
1，TTL: 16.37mm
2, EFFECT Focal length: 3.2mm
3, Aperture F/No: 2.2
4, Optical Back Focal Length: 5.75mm
5, Mechnical Back Focal Length: 2.35mm
6, Max image circle: ￠6.3
7, FOV (D/H/V): 85.6/71/43.4 (1/4 OV9712)
8, Optical Distortion: H:-6.6%, V:-17.6%
9, Relative illumination: >88.5%
10, CRA: <17.48 degree
11, mount type: M7*P0.35
12, Lens construction: 5G
13, IR Coating: NO
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, lens material: Glass&metal
17, diameter of lens cap: ￠10

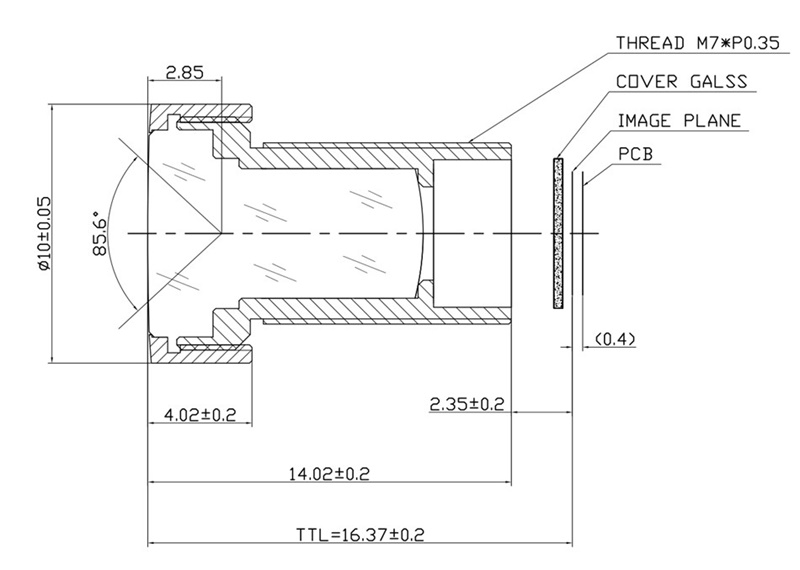

Technical Datasheet of M7 car camera lenses
Product Application
1,Lens for Car Camera
2,Lens for Automobile Camera
3,Lens for Car Black Box, Dash Camera, Car DVR Camera
4,Lens for Car backup Camera, Rearview Camera, front View Camera
5,Lens for Automotive Camera DMS,ADAS Camera
6,Lens for Smart Home Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
