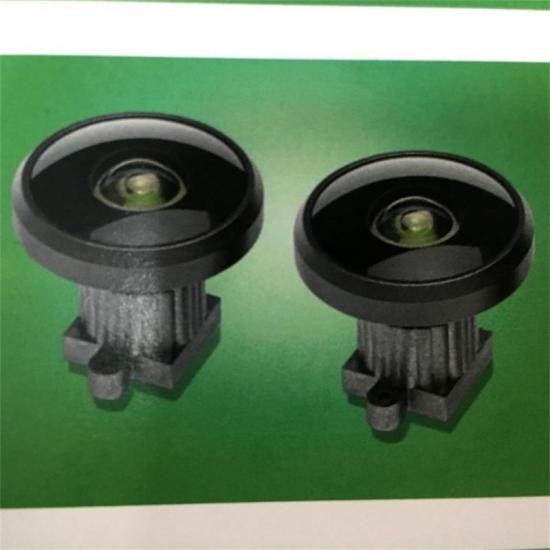

Product Name: 220/220/220 degree Super Fish-Eye Camera Lens
Product advantage
1, All Angles are 220 degree Fish-Eye Lens
2, 360 Degree panoramic Fisheye Lens
3, Glasses material are import from Japan
4, Remove and correct unexpected spherical aberration by using asperical Lenses
5，Professional Fisheye Lenses wholesaler for different Angle and EFL
Product Specification
Main Technical feature of 1.05mm 220 degree Fish-Eye Lens
Model No:M12-1.05-220-627
Effect Focal Length: 1.05mm
Back Focal Length: 3.8mm
Flange.Focal.Length 2.88
Aperture F/NO:2.0
Matching Sensor 1/2.8”
HFOV: 220°
VFOV: 220°
DF0V: 220°
TV distortion: 110%
Thread size: M12xP0.5
Lens Structure:7G
IR filter: 650IR
T avg>=88% Q420-600nm
T=50%
@650+10nm
T avg=5% 0700-1050mm

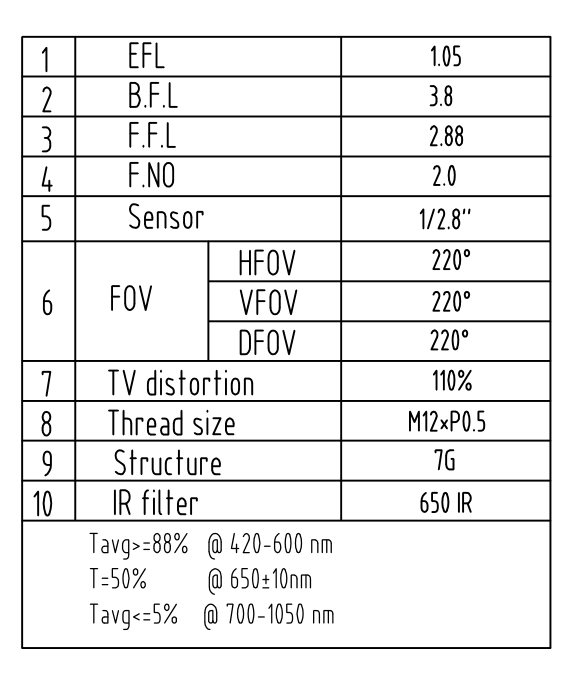

Technical datasheet of 220 degree Fish-Eye Lens
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
