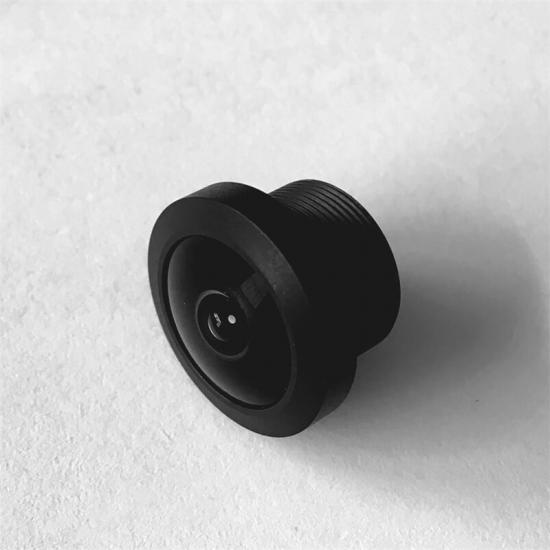

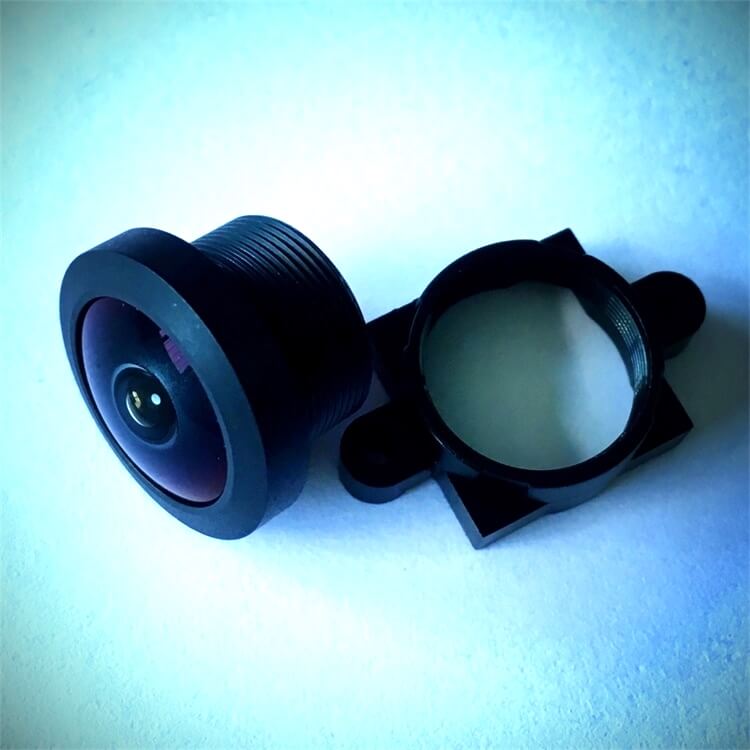

Product name: 210/210/210 super Fish Eye 360 Camera Lens for 360 Car surround view Camera
product Advantage:
1, All Angles are 210 Degree Fisheye Lens
2, barrel made of aluminum alloy raw material, surface oxidized, All black Design
3, Glass material are Imported From Japan
4, produced by Fully Automated Lens Assembly Machines
5, widely used for 360 VR fisheye Lens， Panoramic camera Lens，
360 Degree Bird View Panoramic System， 360 Camera
Product Specification
Technical feature of 1.00mm Fisheye Lens For Camera
1,Effect Focal Length: 1.00mm
2,Back Focal Length: 2.30mm
3,Flange.Focal.Length: 1.30mm
4,Aperture F/NO: 2.0
5,Max image circle: 3.0
6,Matching Sensor: 1/2.8”
7,HF0V: 210° widest fisheye lens
VFOV: 210°
DF0V: 210°
8,TV distortion:110%
9,Thread size: M12xP0.5
10,Lens Structure: 6G
11,IR filter: 650IR
T avg>=88% Q420-600nm
T=50%
Q650±10nm
T avg<=5% Q700-1050nm
12,TTL: 12.8mm

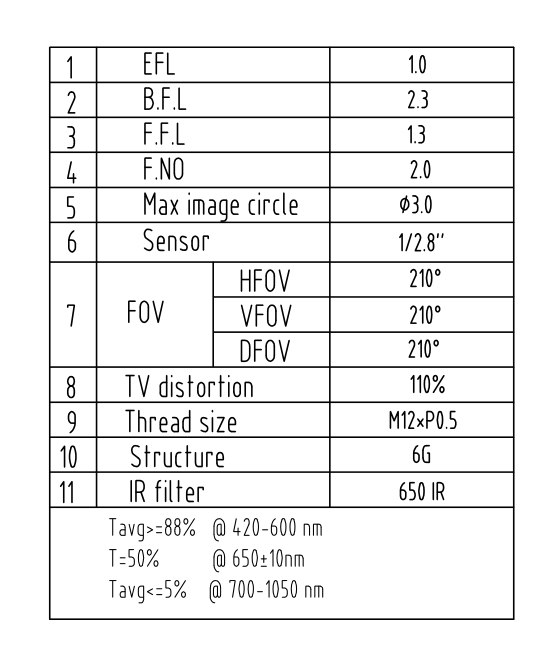

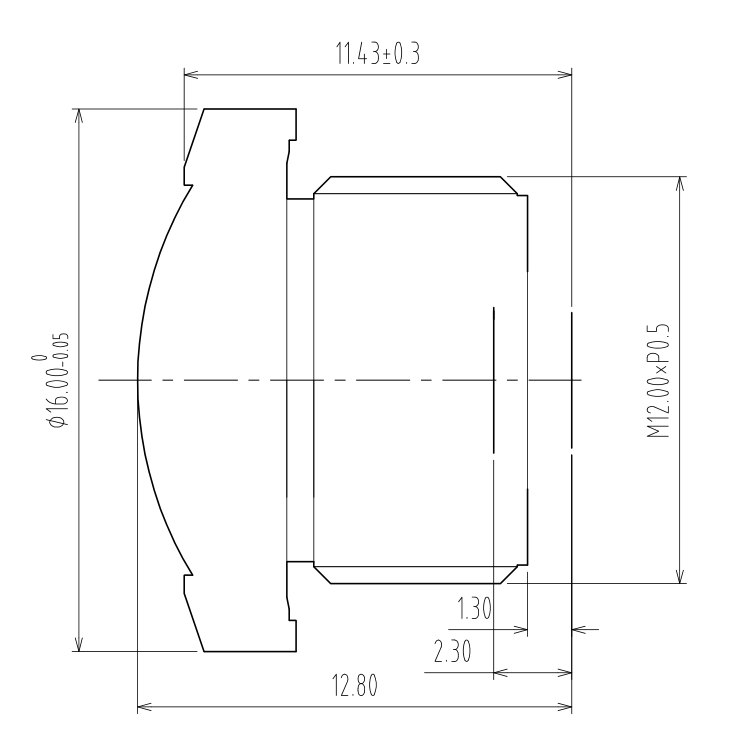

Technical datasheet of Best Fish Eye Lens M12
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers
that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop
Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc.of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
