Product Name: 1/3" 1.7mm fisheye lens for 360 car camera 200 degree IP68
Product Advantage
1, Horizontal 145 degree S mount Fisheye Lens DFOV 200
2, IP68 waterproof Fisheye Lens widely used in Automotive industry Lenses
3, 200 degree Fisheye Lens CCTV camera
4, Vertical FOV 107 perfect for Car surround view Lens
5，200 degree Fisheye Lens For Sale （wholesale / retail / distribution）
Product Specification
Technical feature of 1.7mm Ultra Wide Angle Lenses
1,Effect Focal Length: 1.70mm
2,Back Focal Length: 4.00mm
3,Flange.Focal.Length: 3.22mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,HFOV: 145°
V FOV: 107°
D FOV: 200°
7,TV distortion: 110%
8,Thread size: M12xP0.5
9,Lens Structure: 6G full glass
10,IR filter: 650IR
11, Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
Ta vgc=5% @700-1050nm
12, TTL: 14.44mm

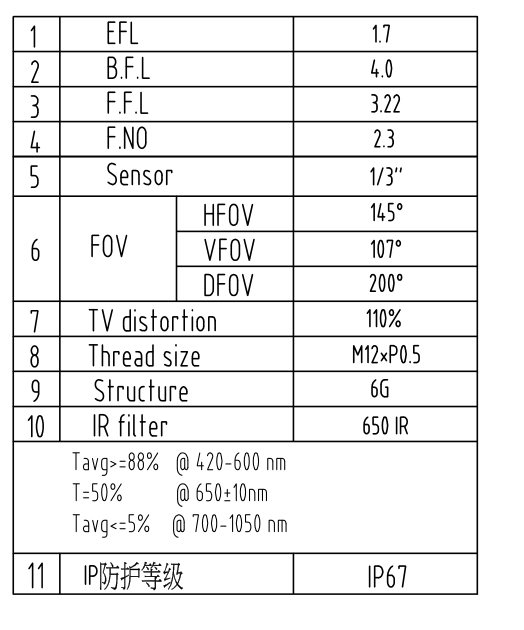

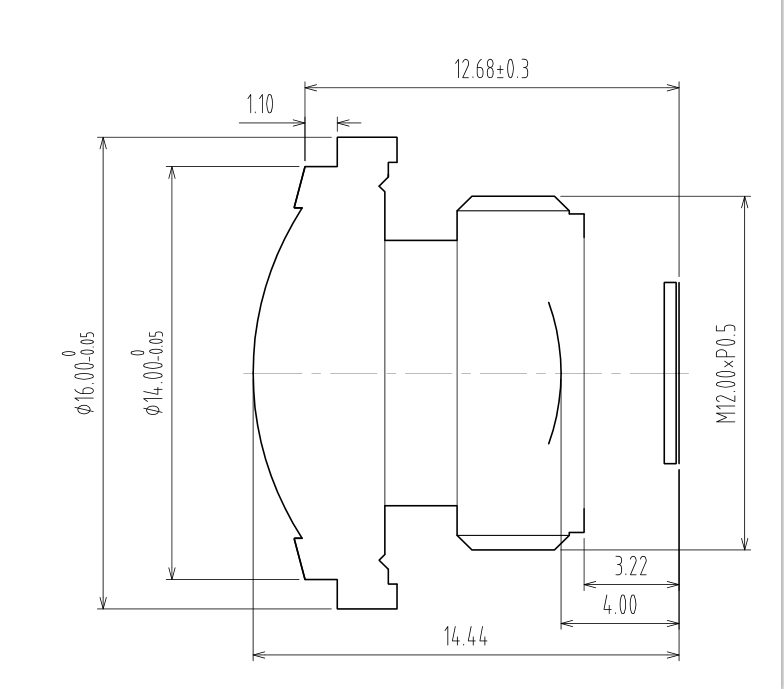

technical datasheet of 1.7mm Fish-Eye Lens
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for panoramic camera
8, Lens for Mini video recorder
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc . of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
