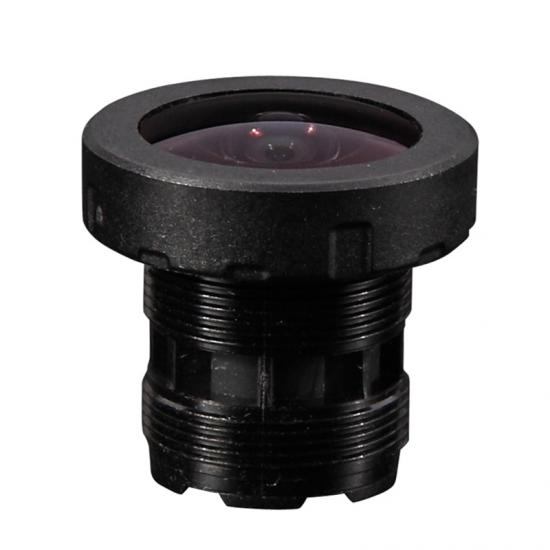

Product Name: 3.2mm M12 Ultra Wide Angle Lens HFOV 119 degree Aperture F2.7
Product Advantage:
1, Ultra Full 7G Glasses High Resolution Lenses bring top quality optical performance
and sharp image
2, Horizontal 119 degree perfect As any Action Camera Lens
3, Work with with 1/2.3’’ Sony CMOS Sensor, 16 Megapixels High Resolution Lens
4, Remove and correct unexpected spherical aberration by using asperical Lenses
5, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification

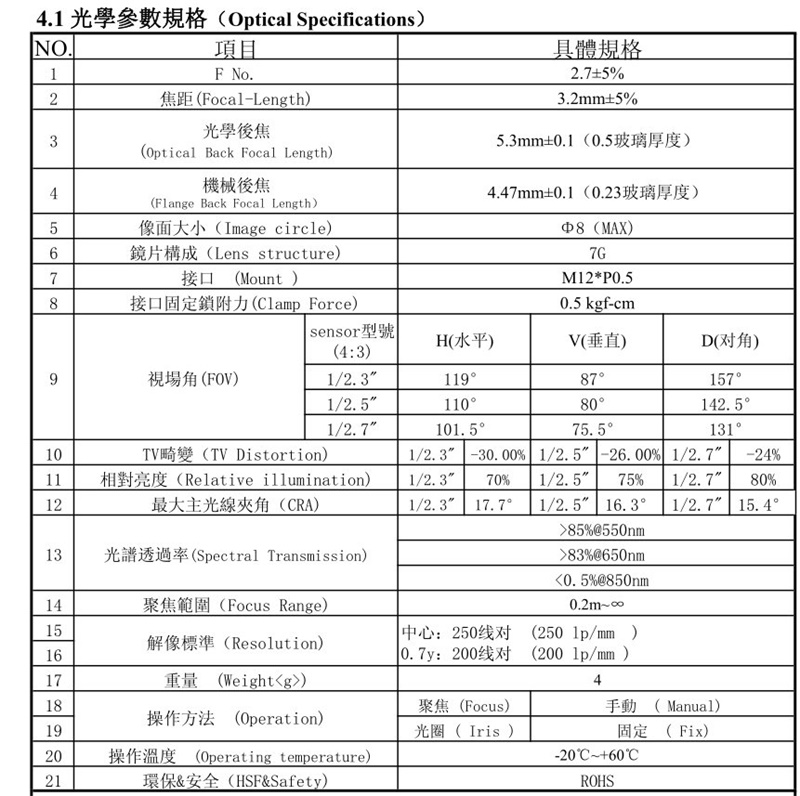

optical specification of 3.2mm 16MP m12 action camera lens
1, Focal length: 3.2mm±5%
2, Aperture F/No: 2.7±5%
3, Optical back focal length (OBFL): 5.3mm±0.1（0.5mm glass thickness）

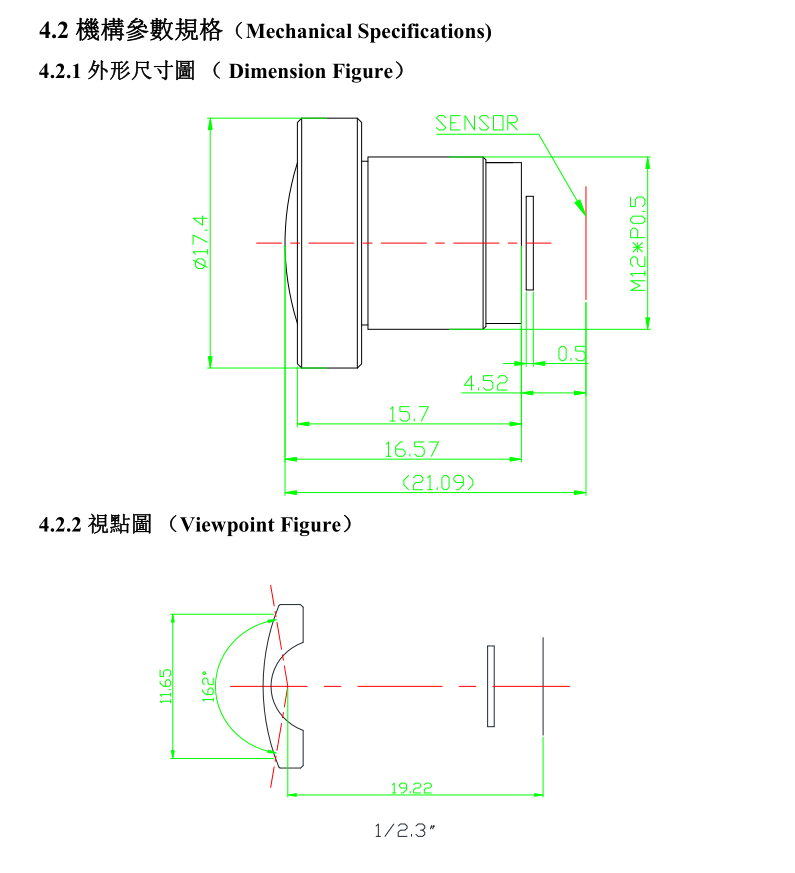

4. Mechanical back focal length (MBFL): 4.47mm±0.1（0.23 glass thickness）
5. TTL: 21.09mm
6, Max image circle: Φ8（MAX)
7, Lens structure: 7G
8, Mount type: M12*P0.5
9, Clamp Force: 0.5 kgf-cm
10, FOV (D/H/V): 1/2.3"(4:3) sensor D 157°/ H 119°/ V 87°
11, TV Distortion: 1/2.3" -30.00%, 1/2.7" -24%
12, Relative illumination: 1/2.3" 70% 1/2.7" 80%
13, CRA: 1/2.3" 17.7° 1/2.7" 15.4°
14, M.O,D./ Focus Range: 0.2m~∞

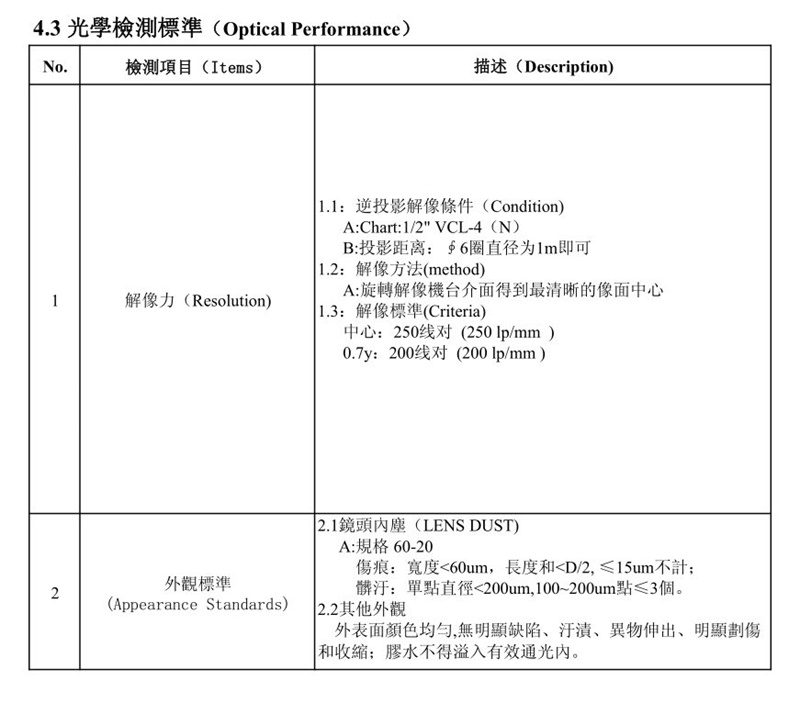

15, MTF resolution Center 250 lp/mm, 0.7Y 200 lp/mm
16, Spectral Transmission >85%@550nm,
>83%@650nm, <0.5%@850nm
17, HSF&safety: RoHS
18, Focus: manual, Iris operation: fixed
19, Operating temperature: -20℃~+60℃
Technical Datasheet of Sport Camera Lens
Product Application
1, Lens for gopro hero Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for xiaomi yi 4K action Camera
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning
-6 Inspection- 7 Film - 8 Coating
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
