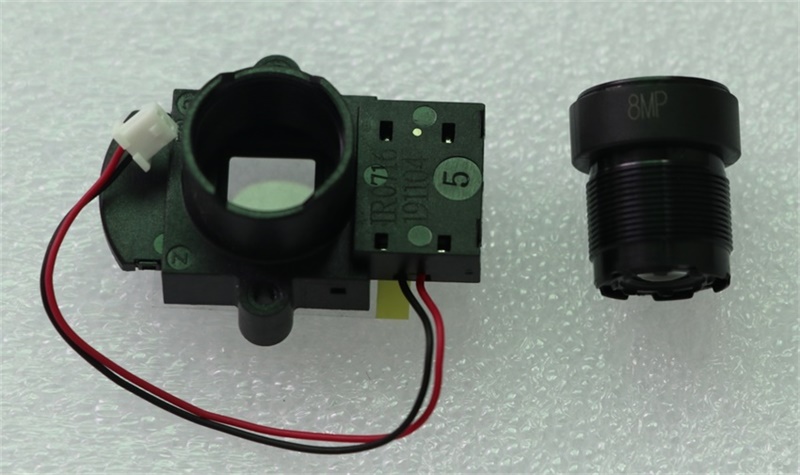

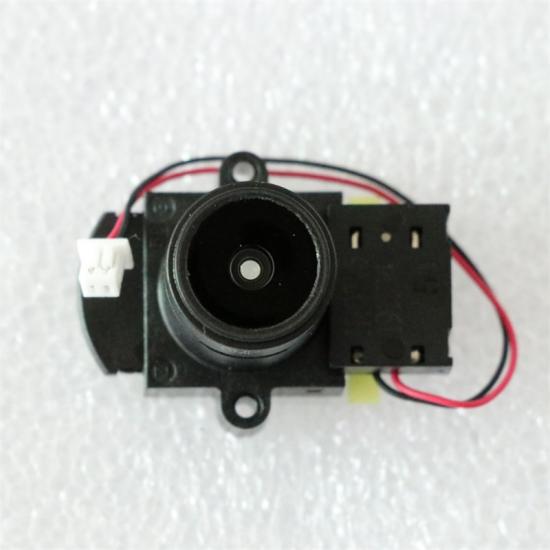

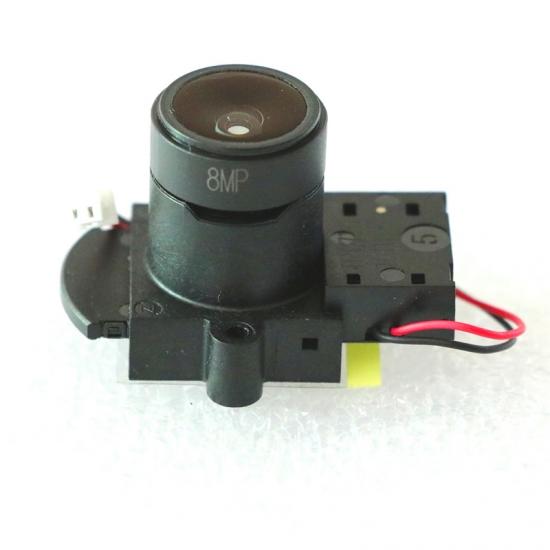

Product Name: 3.3mm 8mp 4K s mount lens cctv camera lens with ICR 1/2.7''
Product Advantage:
1, 4K Wide Angle equivalent 2.8mm Camera Lens CCTV
2, 8MP high resolution Megapixel CCTV Lens 2.8mm M12 Lens
3, Widely used in multiple field ( see as following)
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product Specificaiton

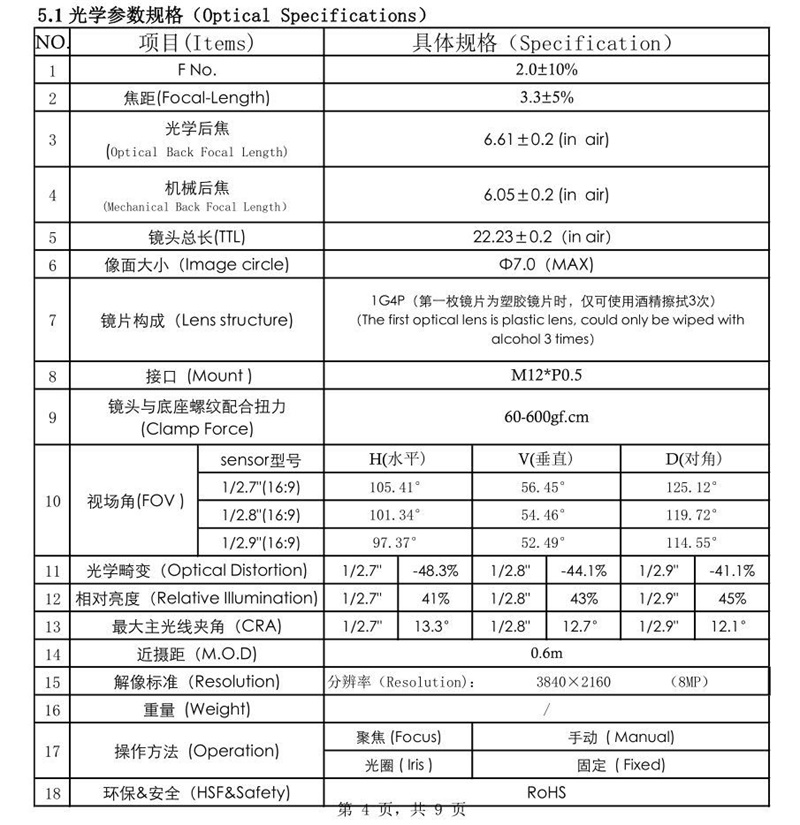

optical specification of 2.8mm equivalent 4K m12 wide angle Lens
1, Focal length: 3.3±5%
2, Aperture F/No: 2.0±10%
3, Optical back focal length (OBFL): 6.61±0.2 (in air)
4. Mechanical back focal length (MBFL): 6.05±0.2 (in air)
5. TTL: 22.23±0.2（in air）
6, Max image circle: Φ7.0（MAX)
Cctv Lens Size：Max 1/2.5 inch
7, Lens structure: 1G4P
8, Mount type: M12*P0.5 s mount lens
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) 1/2.7"(16:9) sensor,
D 125.12°/ H 105.41° / V 56.45°
11, Optical Distortion 1/2.7" -48.3% , 1/2.9" -41.1%
12, Relative illumination 1/2.7" 41% 1/2.9" 45%
13, CRA: 1/2.7" 13.3° 1/2.9" 12.1°
14, M.O,D. 0.6m
15, MTF resolution 3840×2160 （8MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

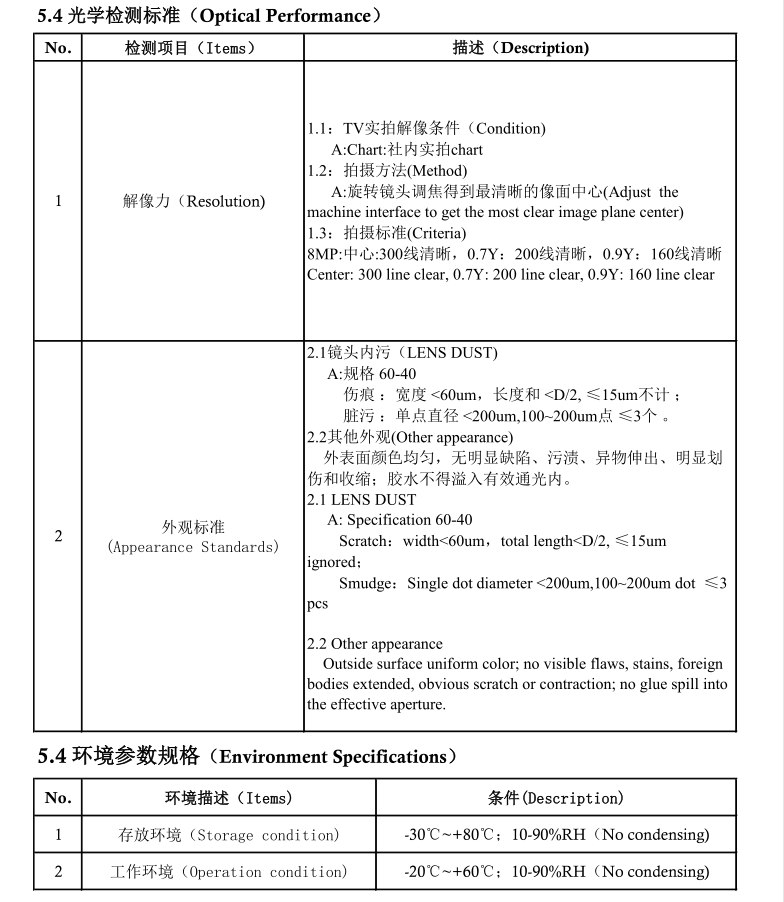

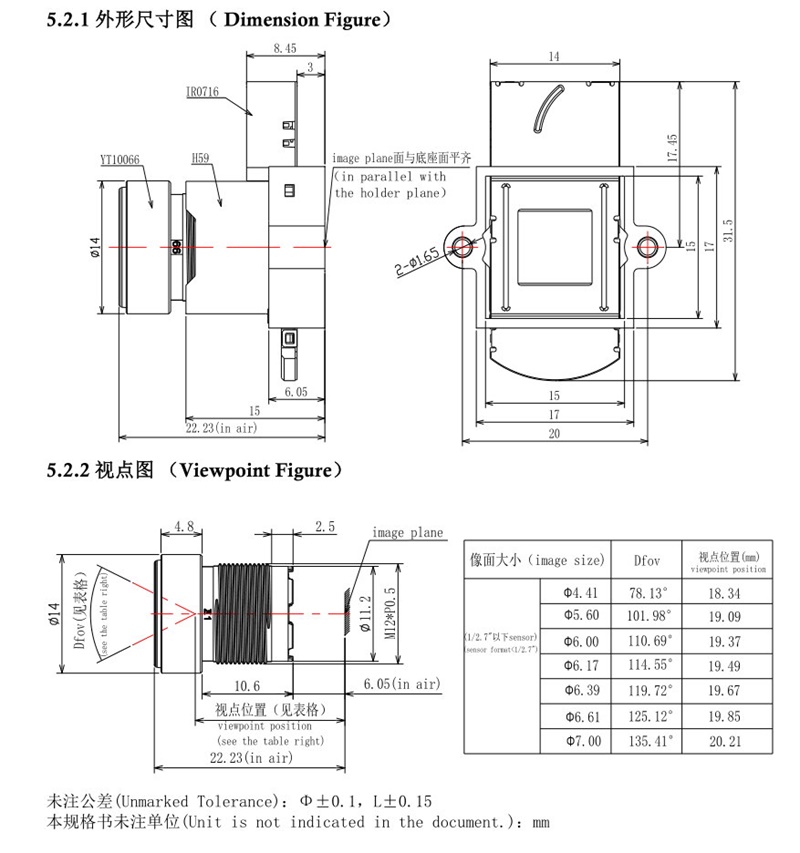

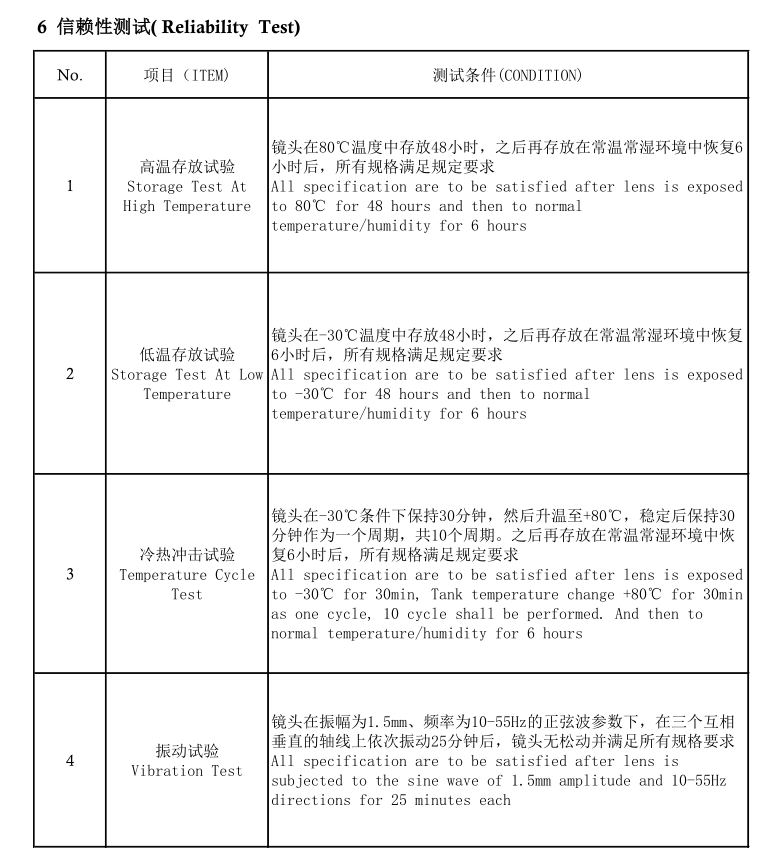

Technical datasheet of 2.8mm CCTV Wide Angle Lens
Lens Application
1, 2.8mm CCTV Camera Lens, 2.8mm Starlight Camera Lens
2, Surveillance camera Lens, 2.8mm Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, 4K Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, 4K Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
Custom CCTV Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
