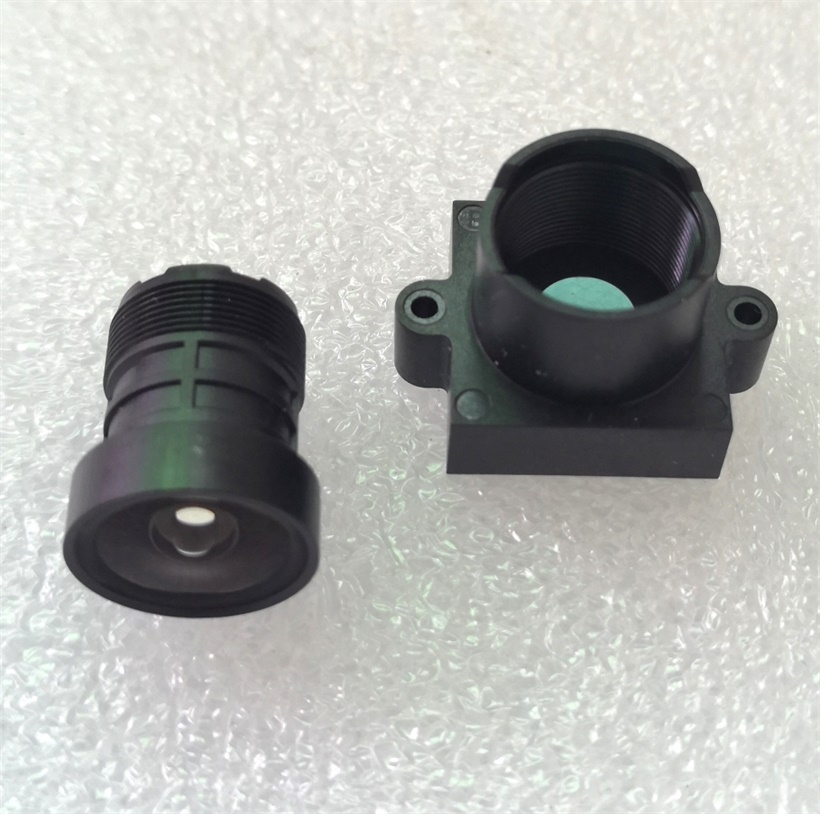

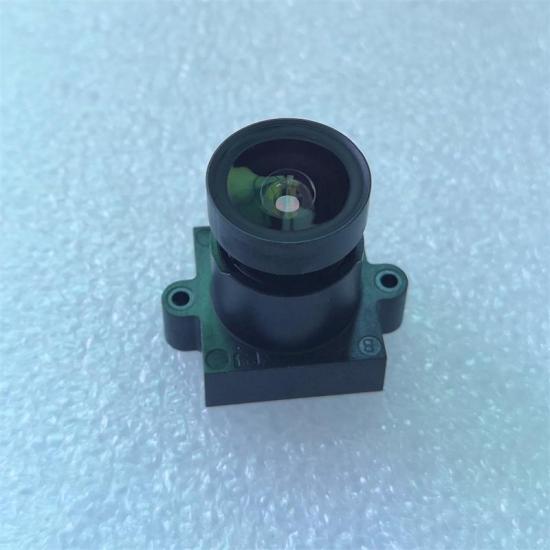

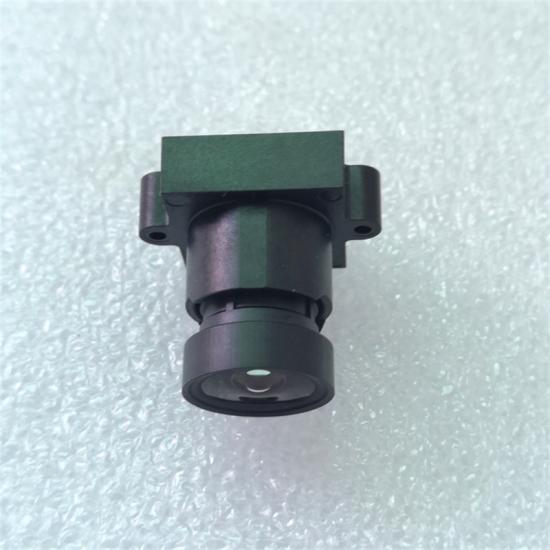

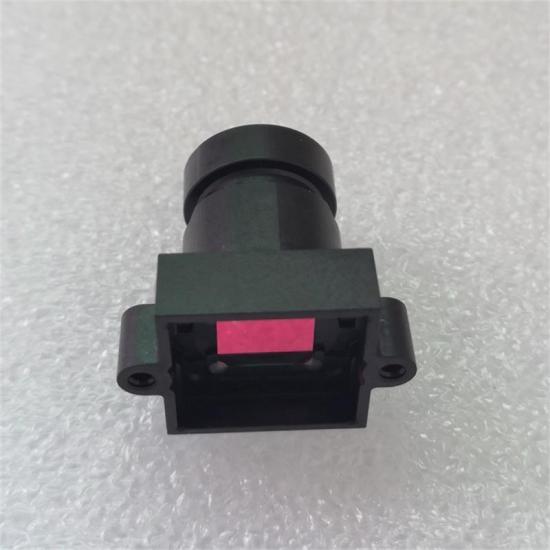

Product name: 1/2.7" 3.18mm M12 wide Angle HFOV 111 degree F1.6 Starlight Network Camera Lens
Product Advantage:
1, Low cost 5P plastics lenses used for IP Camera Lens
2, FOV work Equivalent 2.8mm CCTV Lens
3, F1.6 Starlight good for Night Vision Camera
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product Specification

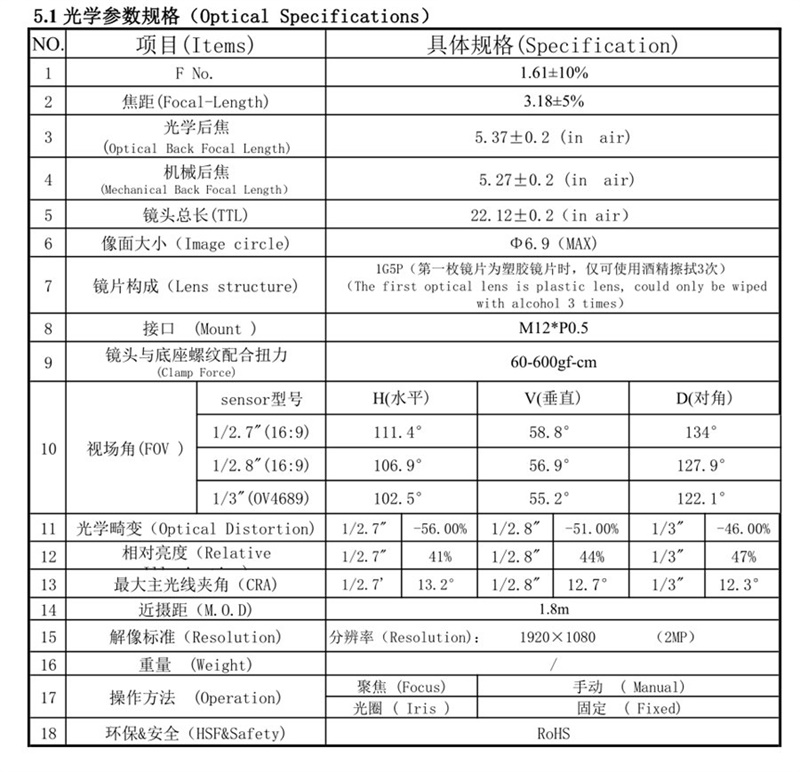

optical specification of 3.18mm/2.8mm 2mp fixed focus M12 Lenses
1, Focal length: 3.18±5% (Equivalent 2.8mm )
2, Aperture F/No: 1.61±10% CCTV Starlight Lens
starlight good night vision for Network IP Camera
3, Optical back focal length (OBFL): 5.37±0.2 (in air)
4. Mechanical back focal length (MBFL): 5.27±0.2 (in air)
5. TTL: 22.12±0.2（in air）
6, Max image circle: Φ6.9（MAX)
7, Lens structure: 1G5P
8, Mount type: M12*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V): 1/2.7"(16:9) D 134°/ H 111.4 / V 58.8°
11, Optical Distortion: 1/2.7" -56.00% , 1/3" -46.00%
12, Relative illumination: 1/2.7" 41% 1/3" 47%
13, CRA 1/2.7' sensor 13.2° , 1/3" 12.3°
14, M.O,D. 1.8 meter
15, MTF resolution 1920×1080 （2MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

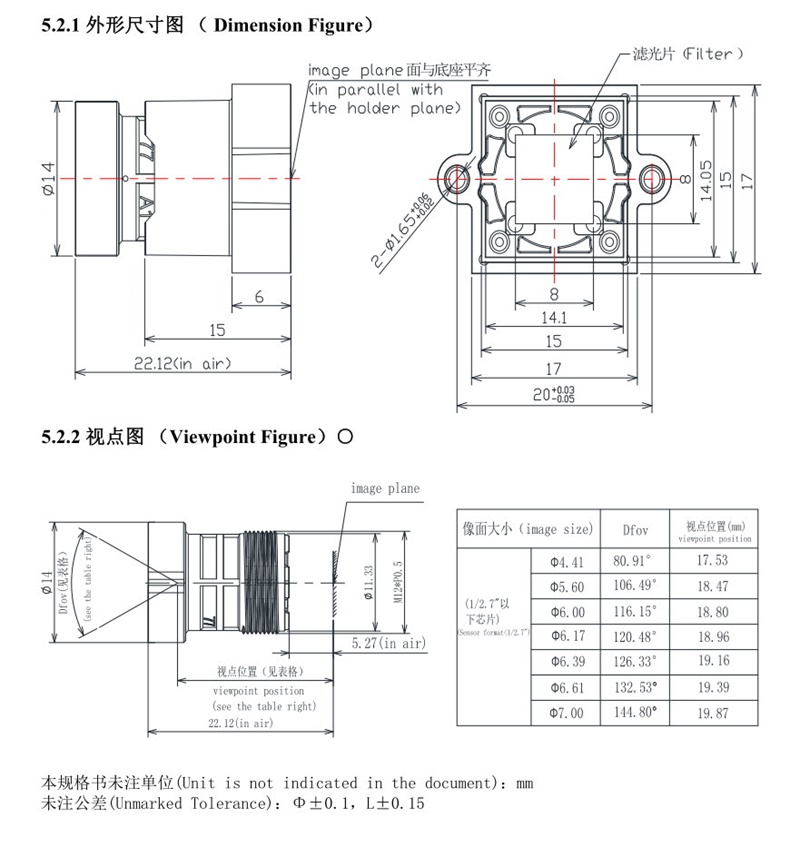

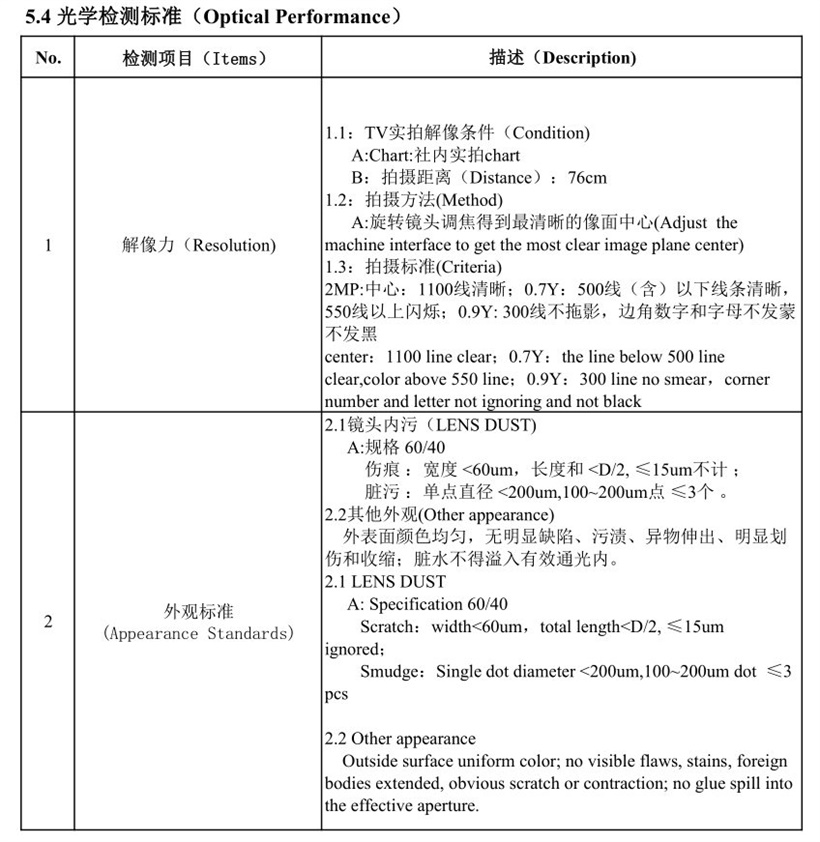

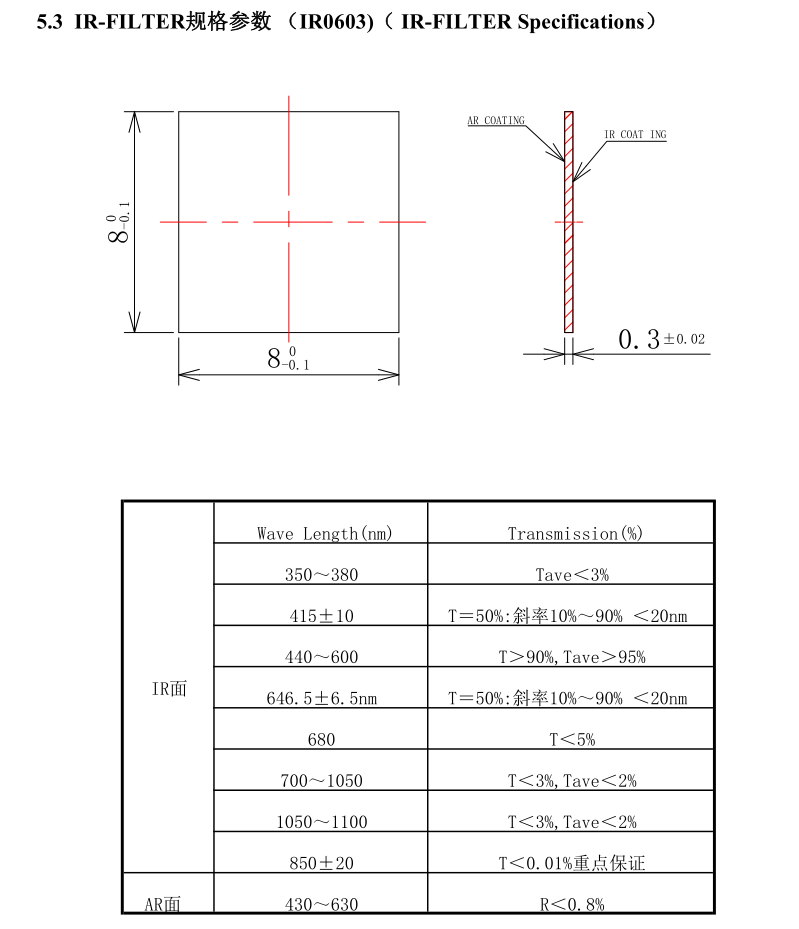

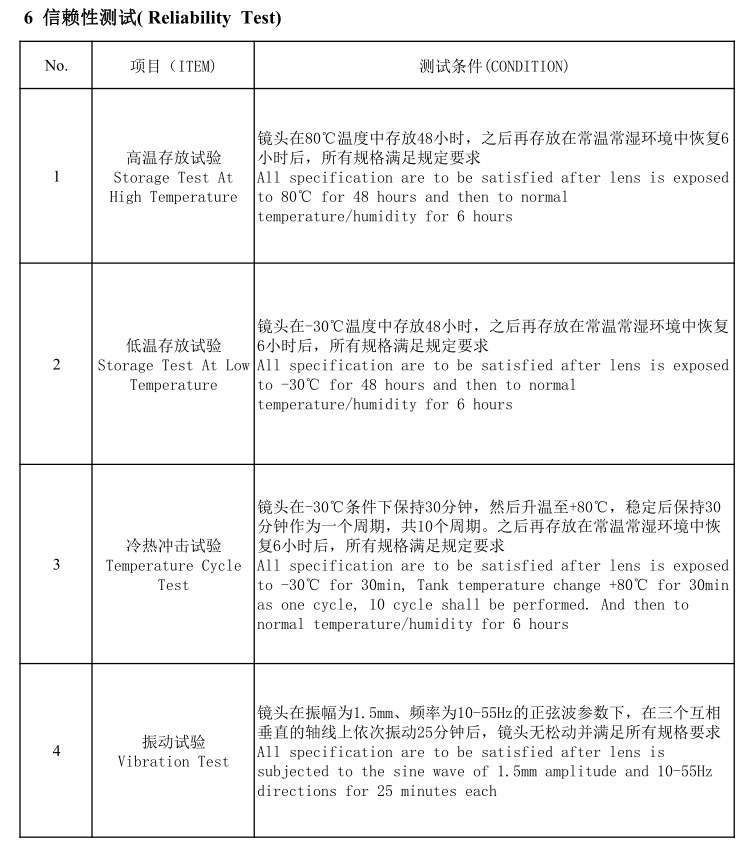

Technical data sheet of 2.8mm 2 Megapixel CCTV Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera Lens, Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
