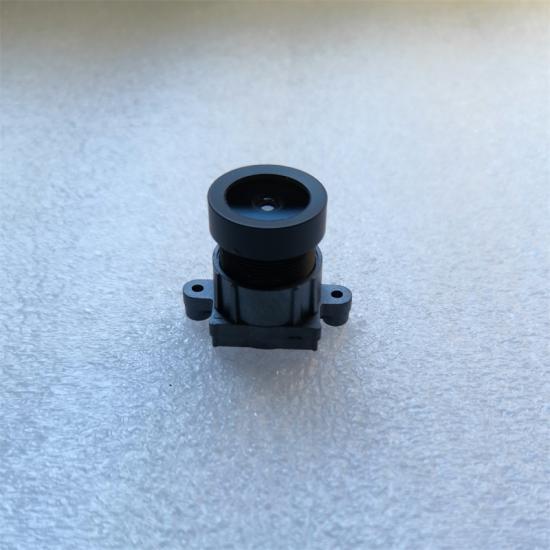

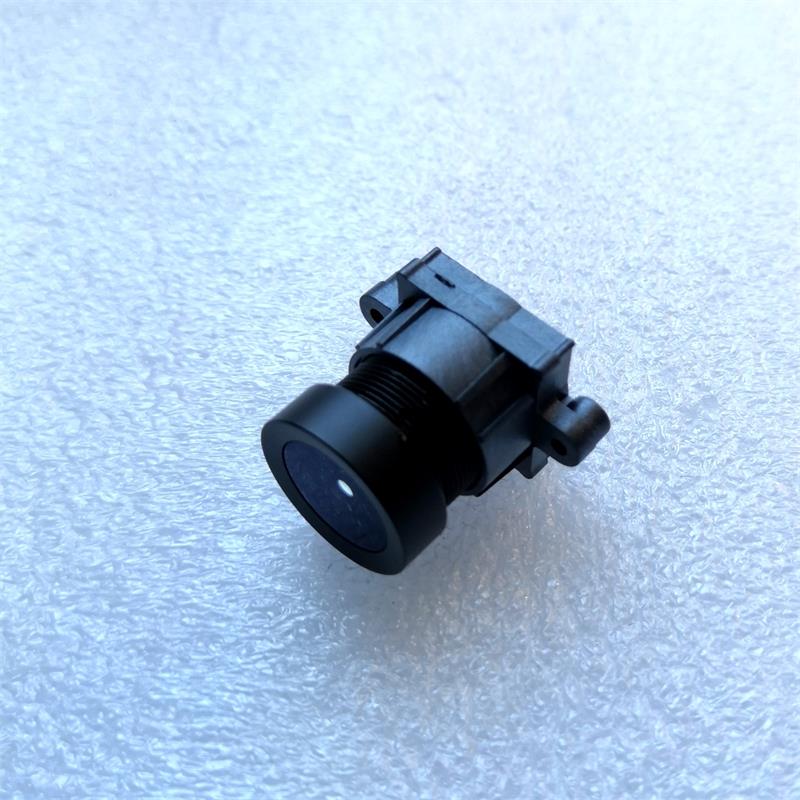

Product name: 3.26mm China Optical Lens produced in Shenzhen used as E-mirror Lens
Product Advantage
1, 127 degree Wide Angle good for Car E-mirror Lens
2, meanwhile used as In Car Camera Lens, Automotive Camera Lenses
3, Widely used in Car side View camera Lens, Vehicle Lens
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification
keying technical feature of 3.26mm China Optional Lens
1，TTL: 17.82mm
2, EFFECT Focal length: 3.26mm
3, Aperture F/No: 2.2
4, Optical Back Focal Length: 5.97mm
5, Mechnical Back Focal Length: 4.83mm
6, Max image circle: 6.75
7, FOV (D/H/V): 127/104.5/54.5 degree
1/2.9 IMX323 sensor
8, Optical Distortion: H:-10%, V:-36.25%
9, Relative illumination: >51.64%
10, CRA: <11.97 degree
11, mount type: M12*P0.5
12, Lens construction: 4G+1IR

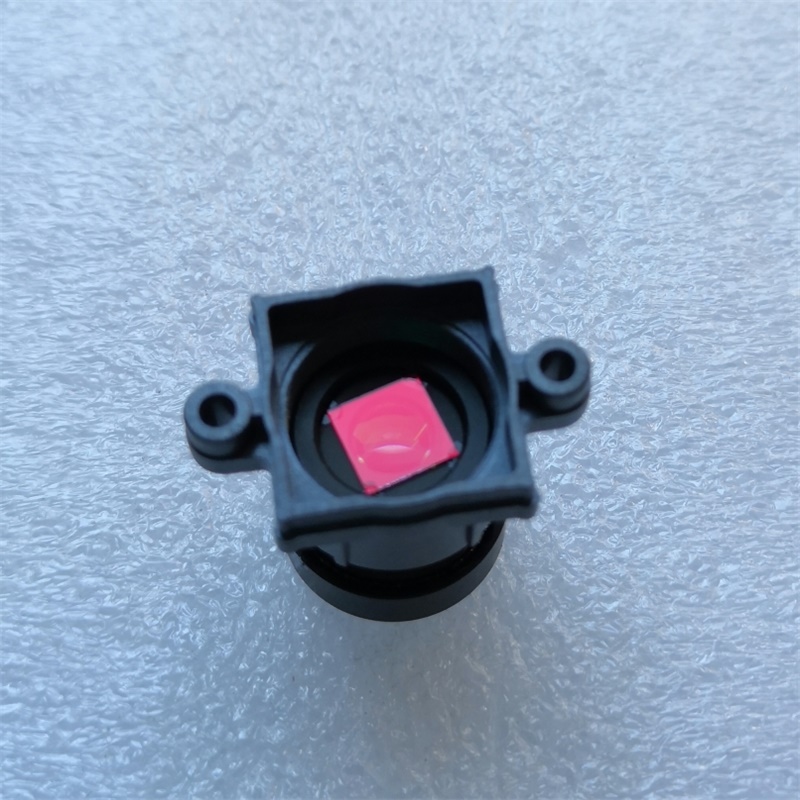

13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H

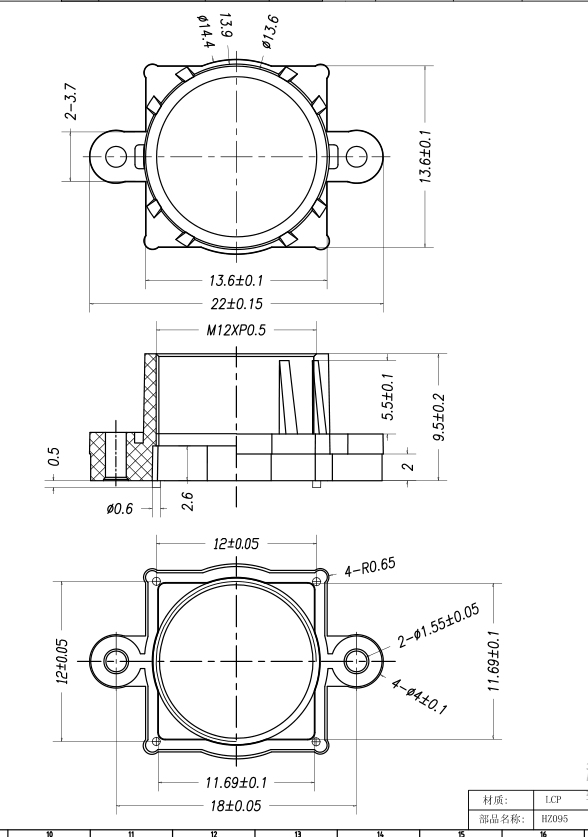

17, matching Lens Holder: 18mm hole or 22 hole distance

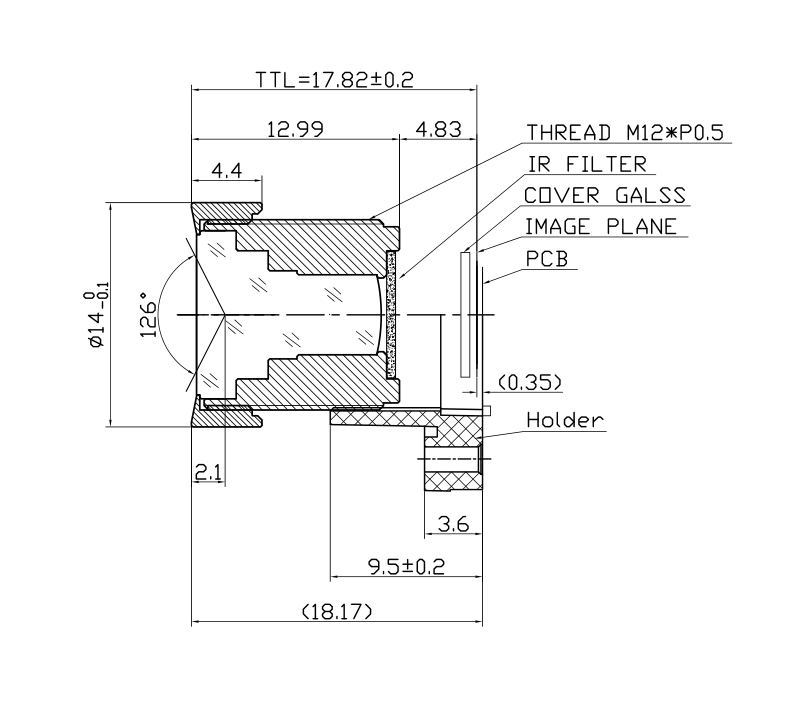

Keying technical datasheet of 127 degree Lens Wide Angle M12
Product Application
Lens for Car side view camera
Lens for in-car monitoring DMS camera ( inside view)
lens for school bus and truck camera
Lens for Smart Home camera
Lens for Electric Mirrors Car Lens
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
