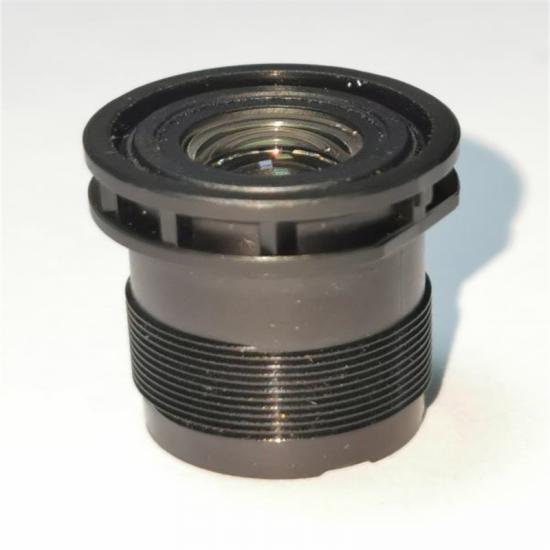

Product Name: 8mm fixed focal length and fixed Iris MTV Lens
Product Advantage:
1, Classical 8mm 6 Megapixel M12 Lens
2, Used in Board Camera, MTV Lens, Cmos cctv Module etc
3, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification

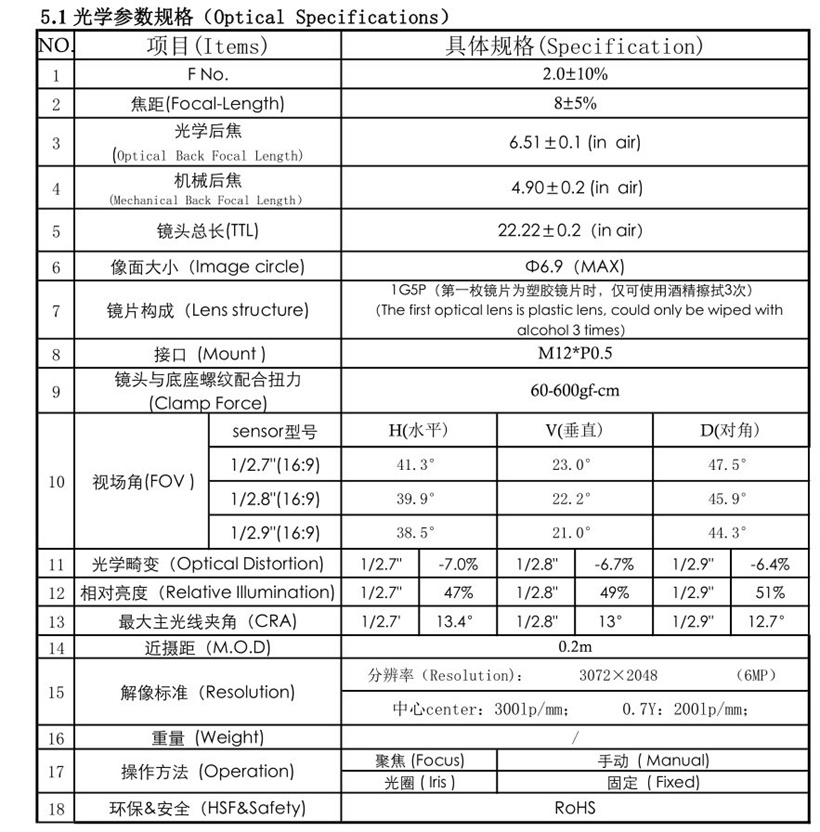

optical specification of 8mm Cctv Megapixel Lens
1, Focal length: 8±5%
2, Aperture F/No: 2.0±10%
3, Optical back focal length (OBFL): 6.51±0.1 (in air)
4. Mechanical back focal length (MBFL) : 4.90±0.2 (in air)
5. TTL: 22.22±0.2（in air）
6, Max image circle: Φ6.9（MAX)
7, Lens structure: 1G5P
8, Mount type: M12*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) 1/2.7"(16:9)
D 47.5°， H 41.3°, V: 23.0°
11, Optical Distortion 1/2.7" -7.0%, 1/2.9" -6.4%
12, Relative illumination 1/2.7" 47%, 1/2.9" 51%
13, CRA 1/2.7' 13.4°, 1/2.9" 12.7°
14, M.O,D. 0.2 meter
15, MTF resolution 3072×2048 （6MP）
center：300lp/mm； 0.7Y：200lp/mm
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

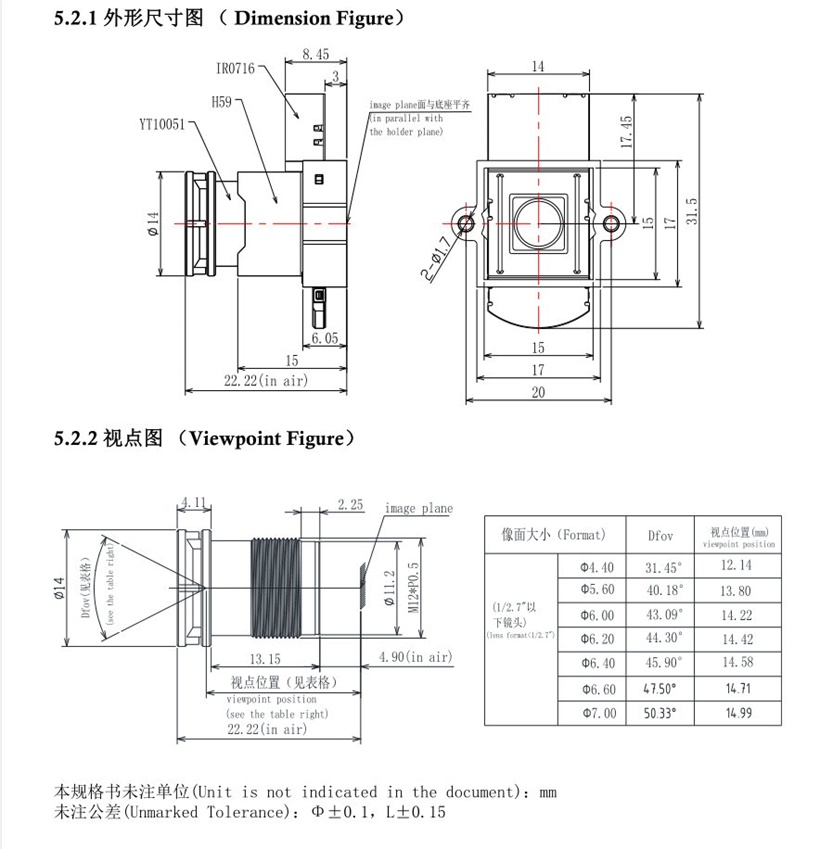

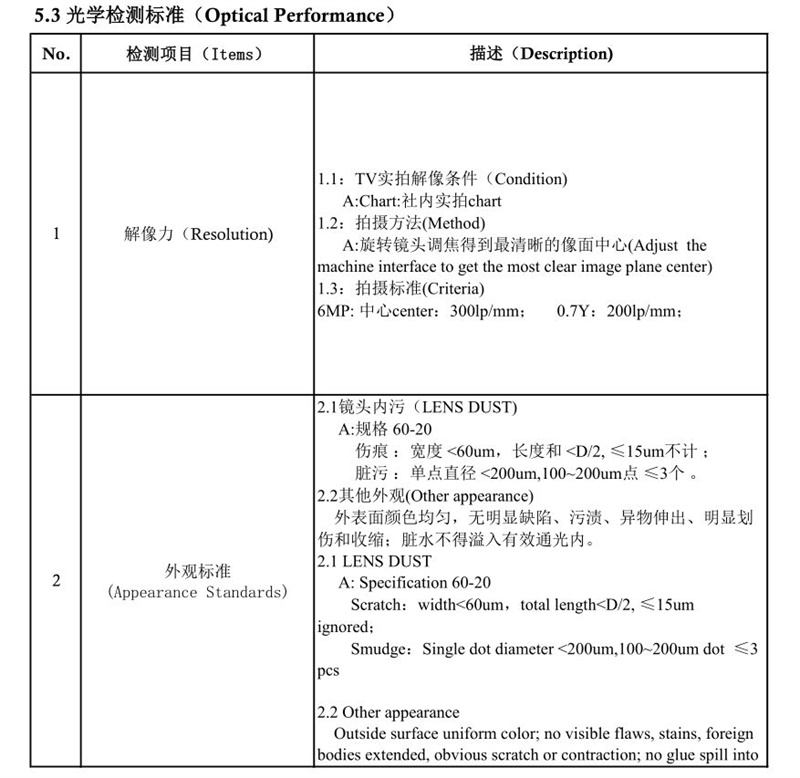

Technical datasheet of 8mm 6 Megapixel Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera, Wireless security Camera
3，IP Network Camera, POE Camera, SDI camera
4, Bullet Camera, Dome Camera, AHD Camera
5, Wifi Camera, VR 360 Wifi Camera, Bulb Wifi Camera
6, Night Camera, Night Vision Camera
7, Floodlight Camera, Indoor/ourdoor Camera
8, Security Smart Home Camera
9, 4G/ Solar Panel/ Battery Camera
10, Wifi door Phone Camera, doorBell Camera, USB WebCam,
11, Baby Monitor,Video Recorder
12, Lens for Hikivision and Dahua Camera
