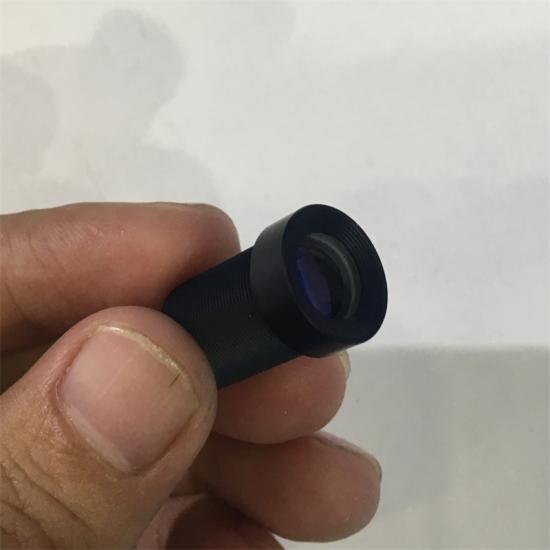

Product Name: 25mm Telephoto F3.0 M12 used for MTV Lens and Board Lens.
Product Advantage
1,25mm Telephoto MTV Board camera Lens
2,Fixed Long Focal Length 25mm Telephoto Camera Lens
3,CE and RoHS Approval, ODM or Custom made Lenses available
4,Used in Board Camera, MTV Lens, Cmos Board Module etc
Product Specification
keying technical feature of 25mm Board Lens
1，TTL: 31.2mm
2, EFFECT Focal length: 25mm fixed focus, long focal length telephoto
3, Aperture F/No: 3.0
4, Optical Back Focal Length: 15.66mm
5, Mechnical Back Focal Length: 8.82mm
6, Max image circle: 9.8
7, FOV (D/H/V):16.5/14/7.7 (1/3 OV2718),
6/4.4/3.35 degree (1/7.5 OV7251)
8, Optical Distortion: <-0.9% (OV2718)
9, Relative illumination: >95%
10, CRA: <8 degree
11, mount type: M12*P0.5
12, Lens construction: 3G+1IR
13, IR Coating: T=50%@640+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H

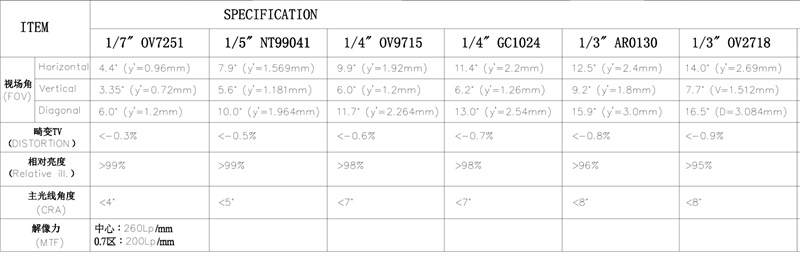

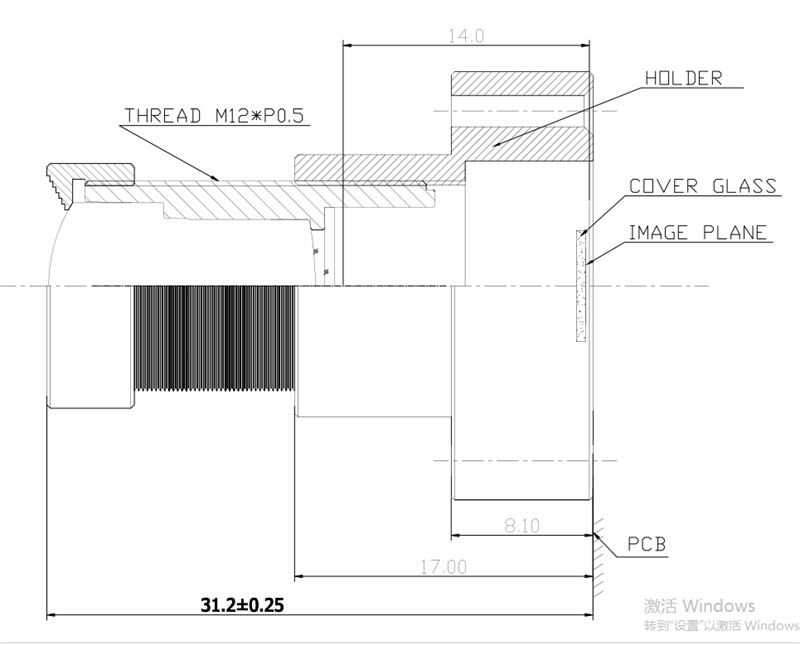

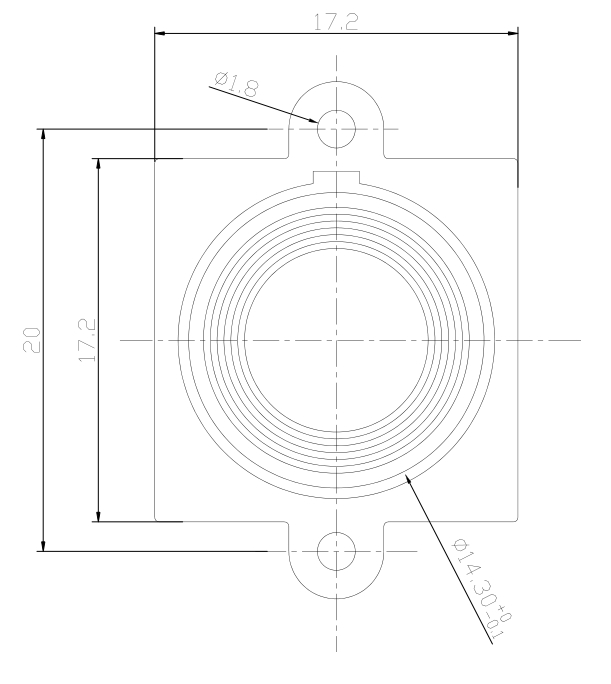

technical datasheet of 25mm telephoto Lens
Product Application
1, Lens for telephoto Camera
2, Lens for security Camera
3, Lens for ITS Lens
4, Lens for surveillance camera
5, Lens for telescope
6, Lens for Forest Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
